CNC Metal Tube Fiber Laser Cutting Machines

Home > Products > CNC Laser Cutting Machines > CNC Metal Tube Fiber Laser Cutting Machines

CNC Metal Tube Fiber Laser Cutting IPG 1KW

Anhui Yawei Machine is one of the best China CNC IPG Fiber Pipe Laser Metal Cutting Machines,CNC Press Brakes, Hydraulic Guillotine Shears, CNC Bending Machines, metal cutting machines suppliers, manufactures, factory in China. Ahyawei Pipe Fiber Laser cutting machines will have different models...

Anhui Yawei Machine is one of the best China CNC IPG Fiber Pipe Laser Metal Cutting Machines,CNC Press Brakes, Hydraulic Guillotine Shears, CNC Bending Machines, metal cutting machines suppliers, manufactures, factory in China.

Ahyawei Pipe Fiber Laser cutting machines will have different models according to final user’s metal fabricating job, the cutting capacity included 3000mm*1500mm, 4000mm*2000mm, 6000mm*2000mm and 6000mm*2500mm, cutting material included Mild steel, Carbon steel laser cutter, Brass plate, Stainless metal laser cutting, sheet aluminum fiber laser cutting, it can cut metal thickness from 6mm, 8mm, 12mm, 16mm&20mm mild steel, 3mm,6mm, 10mm mild steel plate according to your laser metal cutting power.

Here are also some optional laser power for your fabricating job, 500w fiber laser cutting, 750w fiber laser cutting, IPG 1kw optical fiber metal sheet cutting machines, 2kw&3kw cnc metal sheet fiber laser cutting, if you are looking for one cnc metal fiber laser cutting machines with pipe&tube cutting advice from China, Ahyawei will be here to offer you professional solution, the rotary axis can cut metal round pipe, square type pipe with cnc advanced laser technology.



Part I: Ahyawei cnc sheet metal Fiber Pipe Laser Cutting Machine manufactures made in China

Ahyawei 1530 fiber laser cutting machine 1kw&2kw adopts China famous Raycus laser device(option: IPG or Nlight brand) which has international advanced laser technology. Equipped with efficient transmission system by Taiwan  gear rack after grinding process and high-precision linear guide. Advanced automatic CNC system, group into high precised CNC fiber laser cutting machine.

Mainly applicable for carbon steel, stainless steel and aluminum alloy etc such metals’ cutting and molding.With advantage of High speed, High precision, High efficiency and High cost performance. This model is metal processing industry’s first considering metal cutting machine.

Part II. Applicable materials and industry

Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry

IPG Fiber 1000W cutting speed for reference

Thickness   (mm)

Material

Max cutting speed   (m/min)

Use Gas

0.5

Stainless Steel

30

N2

1

20

N2

2

6

N2

3

3

N2

4

1.08

N2

5

0.72

N2

1

Mild Steel

18

O2

2

6

O2

3

4

O2

4

2.7

O2

5

2

O2

6

1.8

O2

8

1.2

O2

10

0.8

O2


         IPG Fiber 2000W cutting speed for reference

Thickness   (mm)

Material

Max cutting speed   (m/min)

Use Gas

1

Stainless Steel(304)

24

N2

2

13.8

N2

2.5

9.3

N2

3

5.4

N2

4

3.3

N2

5

1.8

N2

6

1.2

N2



carbon steel





5

3

O2

8

2.1

O2

10

1.2

O2

12

1.08

O2

14

0.6

O2

Part III: Configuration of China Ahyawei 1kw,2kw sheet metal IPG Pipe Fiber Laser Cutting Machines

1. Cutting system


America LASERMECH brand Auto sensor  laser cutting head. With Auto sensor system. Make sure cutting steel which is out of shape.



Inside laser head, with one one collimating mirror, one focus lens and protect mirror.



At the bottom with copper nozzle, diameter mainly with 1.5mm or 2mm diameter.

2.Control system


With Bochu Control system and software with English language, applicable insert files with DXF. Or AI format. Drawing in the software is also okay. Software with fly cutting mode for cutting same products for save time. With Nesting function, autonomic compose type for saving materials by saving spaces.

Cypcut software is for metal sheet cutting.

Cyptube software is for metal pipe cutting.

3.Cooling system


When laser head cut metals, there will produce some hot energy in laser head and laser device. Water chiller is for cooling this two parts. Laser head part, mainly cooling the mirrors.



Temperature in the water chiller is auto adjustment, mainly set up with 25 degree around.



Water in chiller should be pure water.

4.Laser source

(IPG 1KW/2KW)



The photoelectric conversion more than 30%;

Working environment: 10-40 degree

Device with air-condition to keep it in normal temperature.

Laser device box with air-condition, protect the laser device from high temperature



Lifetime up to 100000 hours;

The photoelectric conversion more than 35%;

Working environment: 10-40 degree

Device with air-condition to keep it in normal temperature.



5.Transmission system


Gear- rack transmission system from Taiwan. Make sure the moving speed faster than ball screw transmission.



X and Y axis Moving speed can be max 80m/min



6. Driving system


Japanese Panasonic drive motors.



Match-able with the transmission system, improve cutting speed and precision.



7.Collect system




At the front of machine, with collector for saving small cutting pieces. Below collector with wheels, easy push and pull.

8.Purging system


Purging system is designed under the X axis beam. It is moving together with laser head. So make sure the smoke is absorbed immediately after cutting. Protect the air environment is also very important.

9.Feeding system




Feeding system with six air cylinders. Before feeding metal sheets, let it rise by click button, after feeding materials, let it down, so metal sheets can be protected by avoiding scratched.

10. Auto Oil Injection system


Gear-rack and guide rails after using some time always need maintained by inject oils to make sure the machine keep moving fluently and in good precision.

11.Machine structure














X-axis beam is Casting aluminum alloy structure, machine bed is casting structure, it can make sure long time machine bed not out of shape. Work stable is very important for the machine performance after long time using.






12. Auto feeding Rotary device(6M length)










Available cut 30-200mm diameter pipes, pipe shape include round, square, rectangle, and so on.

Max cut 6m length pipes

▶ Machine Model

Ahyawei Metal Fiber Laser Cutting-1530

▶ Max. working area

1500mm x 3000

▶ Laser

IPG 1KW/2KW

▶ Cutting thickness

1KW: 0.1-13mm mild steel, max 8mm Stainless steel;2KW: 0.2-16mm mild steel, 10mm stainless

▶ Laser wavelength

1080 nm

▶ Rated power

10-100%

▶ X,Y-axis location accuracy

±0.01mm

▶ X,Y-axis repeat location accuracy

±0.01mm

▶ X,Y-axis fast moving speed

80 m/min

▶ X,Y-axis max. cutting speed

1KW: 35m/min 2KW: 45m/min

▶ Min. cutting line width

0.02-0.08 mm

▶ Max. cutting speed

1KW: 35m/min 2KW: 45m/min

▶ Machine occupy space

4.5 m x 3 m

▶ Machine weight

8 Tons

▶ Voltage

Specific according to final user


Payment Term:T/T Bank transfer, 30% down payment in advance and balance before shipment

Delivery time: Within 30 work days

Warranty: one year

Certificate support: CE, FDA, SGS

China Ahyawei Sheet Metal IPG 1kw&2kw CNC Pipe Fiber Laser Cutting Samples:

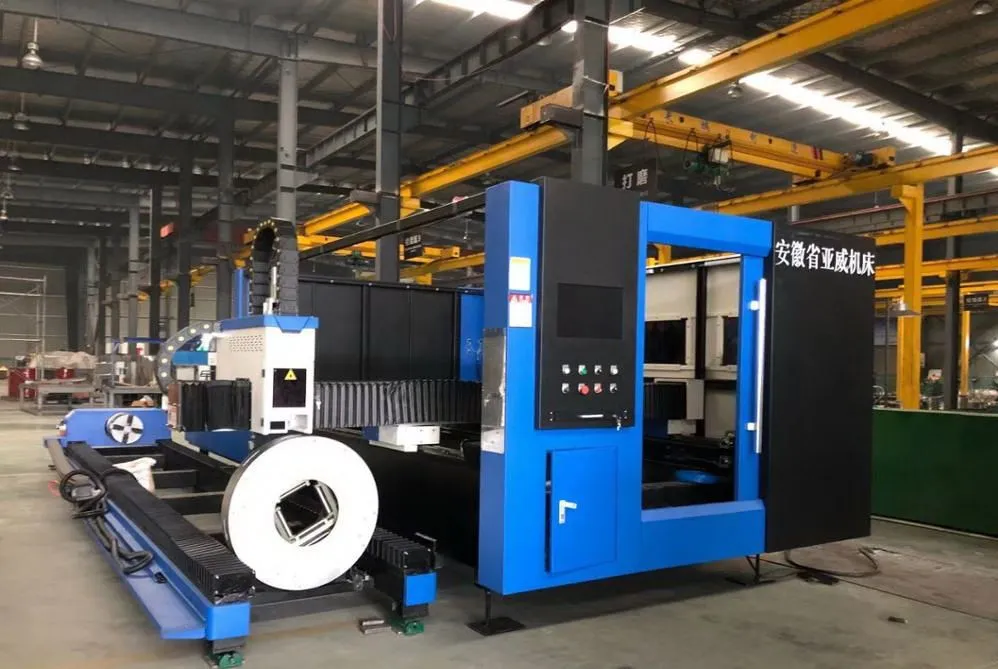

Images of Ahyawei Metal Sheet Fiber Laser cutting machines


If you are looking are one sheet metal IPG Pipe&Tube Fiber Laser Cutting Machines from China manufactures, Ahyawei is one of the best Fiber Laser Cutting Machines suppliers made in China, we have 1kw,2kw&3kw IPG fiber metal laser cutting options.

Any interesting in Ahyawei CNC Metal Sheet IPG 1kw Fiber Pipe Laser Cutting machines,  please send email to export@ahycnc.com
