AHYW 3m Servo Hybrid Pressbrake 4 Axis

AHYW 3m Servo Hybrid Pressbrake 4 Axis Yawei manufacture made in China AHYW servo variable pump synch pressbrakes yawei factory made in China AHYW 3m Hybrid pressbrakes yawei China supplier AHYW 10 feet Servo pump synchro press brakes Yawei made in China AHYW 4 axis cnc brake press 3m metal...

AHYW 3m Servo Hybrid Pressbrake 4 Axis Yawei manufacture made in China

AHYW servo variable pump synch pressbrakes yawei factory made in China

AHYW 3m Hybrid pressbrakes yawei China supplier

AHYW 10 feet Servo pump synchro press brakes Yawei made in China

AHYW 4 axis cnc brake press 3m metal bending machines made in China Yawei factory

AHYW DA66T Touch screen cnc pressbrakes Yawei manufactures in China

AHYW 3m Hybrid drive cnc pressbrakes Yawei made in China

AHYW 3m electrical hydraulic servo drive cnc pressbrakes for metal bending made in China



AHYW Hybrid pressbrake with servo variable speed pump, which is formed by pressure and flow double closed-loop control, and can only rotate in one direction. Selector valve controls the direction. Servo hybrid variable speed pumop is normally used for power supply, it currently adopted with AHYW Hybrid pressbrakes. Delem DA66T will give command of pressure&oil flow to servo drive, which can control pump running speed with variable hydraulic valves opening, then reach oil on demand performance, when pressbrake operator set the program and handle material without any bending, AHYW Hybrid pressbrakes is one silent machine, pump won't running untill operator depress pedal, your metal bending shop will get silent enviroment.



AHYW Servo variable pump hybrid pressbrakes(SVP Hybrid pressbrakes) have many advantages for your metal jobs when comparing with traditional synchro pressbrakes;

Energy Saving; High Efficiency ;Accuracy, Durable, Hybrid pressbrakes

Permanent magnet synchronous servo motor
•PQ Decoupling control algorithm
•40%~80% Energy saving

•Flow response 20ms for metal bending phase
•Pressure response70ms
•Decompression time120ms

•Triple protection
•high overload capacity

•Extreme power saving more than 70%;
•Extreme maintenance costs saving, Hydraulic oil reduce more than 75%;
•Cooling system free, oil temp rise within 25 ℃


Why need to buy Hybrid pressbrakes?

Metal Hydraulic bending process is generally divided into several stages, each stage requires different pressure and flow. Motors’ rated power are determined by the highest pressure and flow requirements. Motor runs at a constant speed to provide a constant flow, In the most time of metal bending working, the flow & pressure demand of sheet bending is less than the rated flow and maximum pressure. In traditional CNC synchro pressbrakes, extra hydraulic oil which is brought by constant motor speed will go back into oil tank through overflow valves, and does not go through the cylinder. In this process which is called high-pressure throttling, usually about 30% to 70% oil will be wasted. Motor and pump always running at standby stages for bending sheet meterial.

Electrical hydraulic servo drive system is oil on demand design for sheet metal bending brakes, no any noise and oil consumption on standby stages., oil cooler have 100% saving free, as oil won't heat up even your shop have day&night job shift for bending metal sheet.



Main photos of AHYW Servo Variable Pump Hybrid Pressbrakes-100T3200mm for 10 feet sheet metal bending jobs:

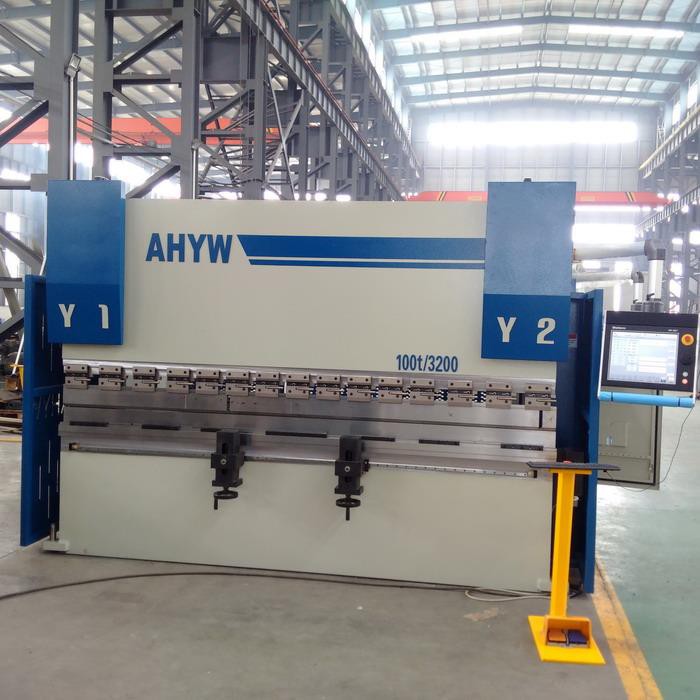

AHYW Hybrid pressbrake with side&rear safety door Yawei manufactures made in China

Ball screw&linear guide pressbrake back gauge

CNC controlled auto X&R 2 axis pressbrake back gauges

R axis auto back gauge, up and down moving

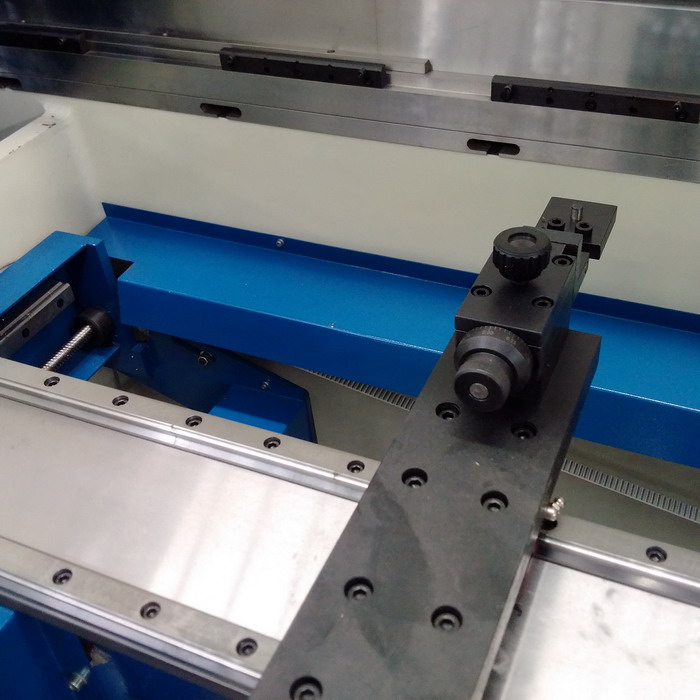

AHYW CNC Pressbrake finger stop moving on dual linear guide

Amada EURO type quick released clamping for AHYW CNC Pressbrakes Yawei made in China

Wila type motorized mechanical crowning table for Hybrid pressbrakes Yawei factory

60mm central standard European narrow table to fit 60mm square 4V die and single V dies

2 pcs linear scales mounted on both sides of bending frames to read and monitoring actual position of top ram

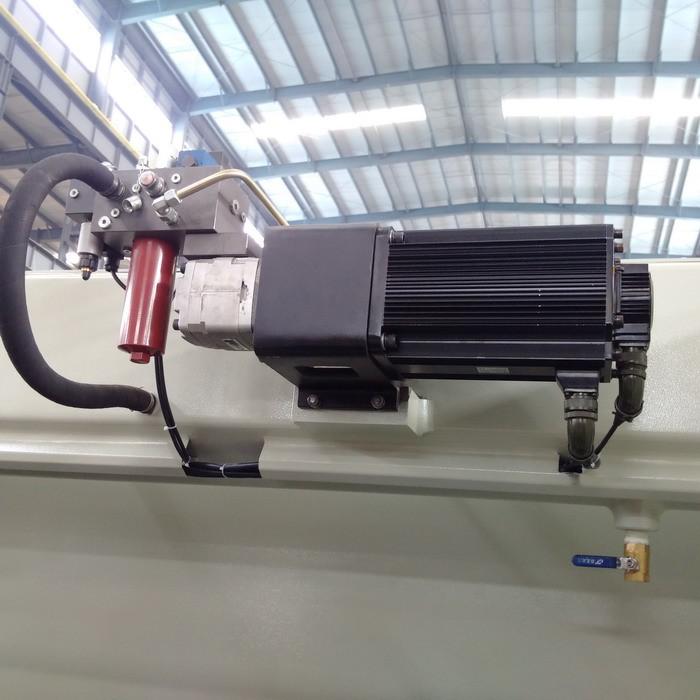

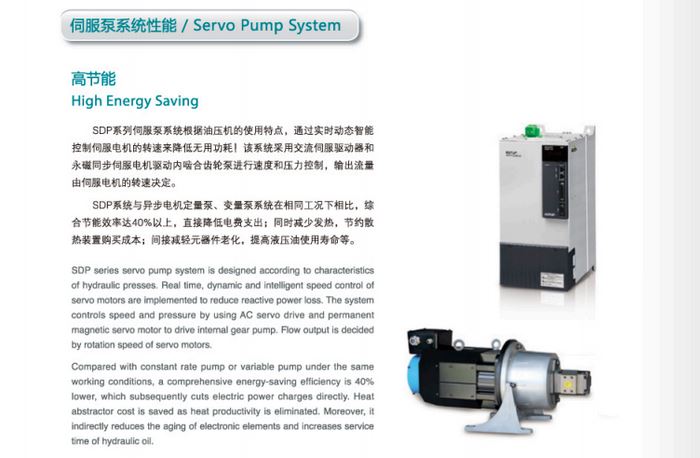

ESTUN Chian designed SVP servo variable speed pump pressbrakes system for energy saving purpose

Japan Yaskawa servo motor and drive for X&R 2 axis back gauge

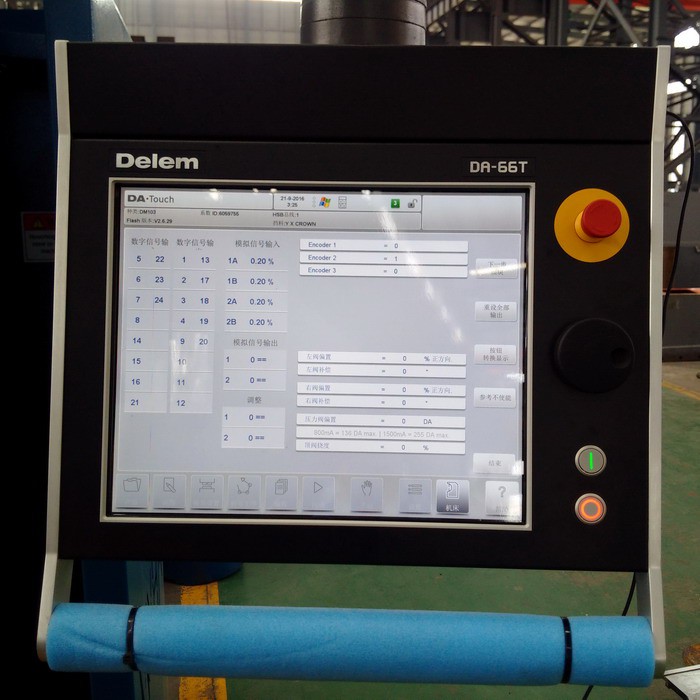

DELEM DA66T full touch screen with offline software

Technical Paremeters of Yawei machinery manufacture made China AHYW Hydrid CNC Press Brakes 100Ton3mtr

Max bending pressure100TonMax metal bending length3200mm, 10FT
Side frames distance2700mmMax daylight420mm
X bending back gauge600mmR axis bending back gauge150mm
X moving speed400mm/sApproach speed220mm/s
Main servo motor power6kwBending speed18-20mm/s
Gross weight7.5TDimension3600*1900*2400mm


If you are looking for one Yawei China factory made CNC Hydrid Pressbrakes and Hydraulic powered CNC Metal Guillotine 3m &4m 4 axis CNC Hybrid pressbrakes from China manufactures, please email us or whatsapp 008615955558219


More interesting in Hybrid pressbrakes?

Check  AHYW Hybrid Pressbrakes adopting German Hioerbiger Eprax hybrid system
