AHYW 4m CNC Brakes Press Bending Machines

AHYW 4m CNC Brakes Press Bending Machines Yawei manufactures made in China AHYW CNC Brakes press bending machines 160T4m China suppliers AHYW China yawei designed for European market CNC Synchro pressbrakes with CE configurations AHYW CNC Pressbrake 4m160Ton can bending 5mm mild steel plate with...

AHYW 4m CNC Brakes Press Bending Machines Yawei manufactures made in China

AHYW CNC Brakes press bending machines 160T4m China suppliers

AHYW China yawei designed for European market CNC Synchro pressbrakes with CE configurations

AHYW CNC Pressbrake 4m160Ton can bending 5mm mild steel plate with 4m length, or can bending max 3mm stainless steel, standard metal bending machines with CNC programmable pressbrake controller, servo driven for X&R axis back gauge, cnc hydraulic crowning system is standard configuration for AHYW cnc metal brakes pressing bending machines.


The Y1 and Y2 axes of AHYW CNC Synchro brake press machine operate as independent double acting hydraulic systems. Both axes share the same oil supply, but the flow to the valves as well as true position(s) of the ram are entirely and separately controlled by computer command

AHYW CNC Hydraulic Box Folding Machines design.

Maximum hydraulic pressure protect by safety valve.

Electronic overload protect system.

AHYW Automatically calculations unfolded length.

Selection of Manual, Semi-Automatic or Automatic working modes.

AHYW CNC controlled back gauge with Servo motor and drive, ball screw and linear guide

AHYW Bending 4m Stainless Steel for making Door Frames

AHYW 4mtr China CNC Press Brake bending machines manufactures suppliers factory

Ahyawei AHYW 4 axis 160Ton4M CNC Sycnhro servo motorised brake press  for sale made in China


Standard Configurations of CE Approved China Ahyawei AHYW 4 Axis cnc brakes 4m metal  plate bending machines, CE certificate with European type metal cnc press brakes bending machines made in China

• AHYW Control of Y1,Y2,X,R and CNC Hydraulic Anti-deflection Crowning table

• Italy ESA 540 CNC metal bending machines Controllers

• Original German Rexroth proportional valves.

• AHYW Hydraulic Nachi Pump for CNC brakes press bending machines Chian made

• High Quality accurate Italy Givi linear encoder

• Japan Yaskawa AC servo motor and drive fro AHYW X&R 2 axis CNC controlled auto back gauge

• Cnc controlled ball screw&linear guide back gauge, pressbrake fingers moving on dual linear guide

• China top level cylinders with Japan NOK seals

• AHYW made Amada/Promecam type quick release cnc pressbrakes clamping on top ram

• Schneider-Telemecanique electrical components in cabinet

• AHYW designed&made 2 Units Movable sliding front support arm with linear guide, support height adjustable

• AHYW CE CNC 4m brake press machine Side and rear protection safety fence with CE Conformity Electrical interlock system

•AHYW designed EURO type  60*60mm Narrow table to fit Amade EURO 60mm square 4 way dies

• AHYW CNC brakes press Hardened Standard EUROPEAN type sectionalized 835mm top&bottom tool

• Removable foot pedal with emergency stop buttons

• AHYW CNC Synchro brake press CE Light guard with Protection height 840mm


 Technical Parameters Specifications of Chian Yawei made AHYW 4 axis 160Ton4M CNC Press Brakes bending machines:

ESA 540 CNC 4 Axis Press Brakes 160T4m AHYW Yawei designed

Bending Power

160 Ton

Bending Length

4000mm

Distance between side frames

3600mm

Y1&Y2 Stroke

200mm

Max Ram Daylight opening

420mm

Throat depth

400mm

X back gauge stroke

800mm

R stroke

150mm

Approach Speed

170mm/s

Bending Speed

10-15mm/s

Return Speed

160mm/s

Main motor power

11kw

Gross Weight

11T

Dimensions(L*W*H)

4500*1800*2450mm

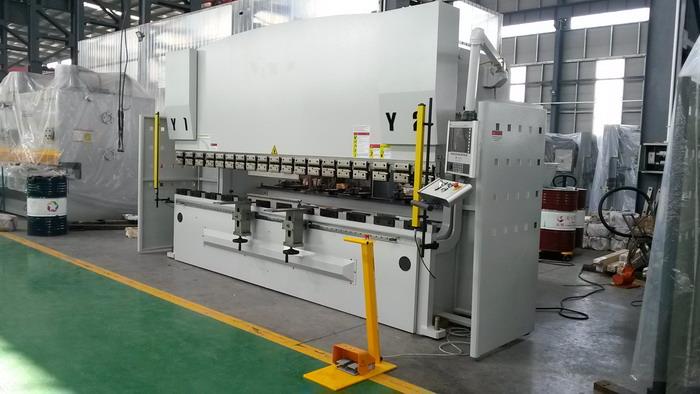

Main images of AHYW CE approved CNC Synchro Press brake machines -160T4000mm, AHYW Designed and made for Euroopean sheet metal bending market, UK sheet metal CNC pressbrake bending machines suppliers manufactures Yawei China


Main Features of AHYW CNC Pressbrakes 4 axis with ESA 540 2D Graphical controller

SIDE View of AHYW designed EURO standard CNC Synchro pressbrakes Yawei made in China

AHYW CE standard side door with electrical interlock system for CNC synchro pressbrakes

TOP view of AHYW CNC Synchro brake press German Bosch Rexroth Valves

Standard CE AHYW CNC Pressbrakes with infra-red guarding system to protect presbrake operator's safety

AHYW Standard EURO 60mm 4Way die pressbrakes tools Yawei made in China

AHYW CNC pedal controlled synch brake press machines Yawei manufactures

AHYW CNC Synchro pressbrakes with Yaskawa servo motorised X&R 2 axis back gauge

AHYW Synchro brakes press with Amada EURO standard quick released clamping and 835mm sectionalized tools

AHYW CNC SYNCHRO BRAKES PRESS STANDARD COMING WITH HYDRAULCI CROWING TABLE

AHYW CNC controlled X&R 2 axis auto pressbrakes back gauge


Options of AHYW CNC Sycnhro pressbrakes Yawei manufactures made in China

AHYW CNC pressbrakes controllers
DELEM DA58T 2D Graphical cnc pressbrake controller

DELEM DA66T 15 inch full touch screen 2D Graphical cnc pressbrake controller

DA66T controller.jpg

Italy ESA S640 Touch screen 2D Graphical, up to 4 axis CNC controlled auto pressbrake back gauges

ESA S640.jpg

AHYW CNC Pressbrakes tools with EURO Amada type for USA&European market

special die.jpg

Options Wila type motorised mechanical crowing table for AHYW CNC Synchro brake press China Yawei

Options CNC controlled Multi axis pressbrake back gauge for AHYW CNC metal bending machine Yawei China suppliers

 X,R,Z1&Z2 axis , 4 axis AHYW CNC controlled pressbrake servo motorised auto back gauge

X1,X2,R1,R2,Z1&Z2 axis , 6 axis AHYW CNC controlled pressbrake servo motorised auto back gauge

Options of guarding system AHYW CNC Pressbrake machines Yawei made in China

Infra red rear guarding for pressbrake AHYW China

AHYW Front German Fiessler AKS CEstandard pressbrake operator fingers guarding

AHYW Lazersafe front guarding for Yawei designed CNC pressbrakes

AHYW Italy DSP front guarding for Yawei designed CNC pressbrakes suppliers

AHYW Yaweo OEM Design for HACO Belgium Sycnhro pressbrake ATP series European sheet metal brakes pressing bending machines

AHYW Yawei China made 6m&8m large metal CNC pressbrake bending machines 1000T bending force


If you have any interesting or want to buy AHYW CNC Pressbrake bending machines from China manufactures suppliers, please drop us a email with your detailed sheet metal cutting&bending requirements.

AHYW Yawei manufactures is the best sheet metal guillotine cutting shears, NC&CNC pressbrakes bender and Fiber Laser manufactures suppliers!


Welcome all customers from all the world visiting AHYW and testing AHYW CNC Pressbrakes and Guillotine, you can cutting&bending any shape for your metal shop!


AHYW Yawei CNC Hydraulic Guillotine Cutting machines and CNC Sycnhro brake press will get your metal fabrications jobs done!
