AHYW 4mtr CNC Brakes Press 4 Axis

AHYW 4mtr CNC Brakes Press 4 Axis Yawei manufacture China forsale AHYW 4 axis pressbrakes metal bending machines China suppliers AHYW Yawei Synchro brake press 4m sheet bending machines made in China AHYW Yawei 4 axis cnc sheet bending brakes machine China manufactures AHYW Yawei china made CNC...

AHYW 4mtr CNC Brakes Press 4 Axis Yawei manufacture China forsale

AHYW 4 axis pressbrakes metal bending machines China suppliers

AHYW Yawei Synchro brake press 4m sheet bending machines made in China

AHYW Yawei 4 axis cnc sheet bending brakes machine China manufactures

AHYW Yawei china made CNC Brakes Press 4 axis -100Ton4m is full Electro Hydraulic Servo motor&drive Synchro CNC pressbrakes AHYW , totally different metal working machiner disign with AHYW sheet metal bending torsion bar, economic NC press brake which it's mechanical force to make parallerl with left&right cylinder, this AHYW 4 axis 100Ton4m brakespress can bending 3mm mild steel and 1.5mm stainless steel, with Max 4m&13 feet sheet metal bending length, standard AHYW CNC metal bending brakes with DALEM DA52S cnc press brake controller, CNC Controlled auto Y1&Y2, X,R and cnc hydraulic crowning system automatically.


AHYW CNC brakespress is entry CNC Synchro pressbrakes machines Yawei manufactures, with cost competitive, high speed bending machines, high accurate CNC brakespress!

AHYW CNC metal brakepress 100T4200mm is fully Synchro Electro hydyaulic servo CNC pressbrake AHYW Yawei China design.

AHYW cnc synchro press brake system, the Y1&Y2 two cylinders running as independent double acting hydraulic systems. Both axis share the same oil supply, but the oil flow to the valves and current position of ram are separately controlled by CNC Pressbrake controller.

AHYW Bending accuracy in positioning
The CNC pressbrakes controller reads the actual upper beam position from independent linear scale while monitoring and adjusting the hydraulic proportional valves, producing a double-closed loop system. Accuracy is further ensured by mounting the linear scale on a C-frame connected to the main frames, rather than directly on the side frames, so deflection of the side frames and pressure loads won’t affect positioning.

AHYW Higher approach speed and bending speed:

 AHYW CNC Press brakes with Y1&Y2,X,R and CNC auto hydraulic crowning, 4 axis cnc brakes press, the approach speed can get Max 250mm/s(under 200Ton bending pressure), very fast fast down speed for standard Synchro press brakes ever, bending speed can adjust from 10 to 15mm/s, return speed standard at 130-150mm/s.

 AHYW 4 axis CNC Pressbrakes 4m, DA52S cnc controller, fast cylinders working        https://www.facebook.com/ahycncs/videos

 AHYW Yawei CNC Press brake controller main features of DA52S DELEM Made in Holland



 AHYW Yawei 4mtr cnc brakes pressing bending machines  Yawei manufactures made in China main configurations

AHYW CNC brakepress standard coming with DELEM DA52S cnc controller

Y1+Y2+X+R, 4 Axis , AHYW CNC controlled Hydraulic crowning table

AHYW pressbrakes Y1&Y2 CNC controlled

X&R, AHYW 2 axis cnc Auto controlled back gauge

Main electrical components:Schneider

Yaskawa Servo motor and drive for X&R auto back gauge

German Bosch Rexroth proportional Valves with safety valves

Japan Nachi pump

Hiwin ball screw and linear guide for CNC auto brakes press back gauge

Seal ring:Japanese NOK

AHYW CNC brakepress Linear scale:German HELDENHAIN , Italy Givi

AHYW China Amada-EURO type quick released CNC Pressbrakes clamping

AHYW Yawei designed Front sheet supports on linear guide, can adjust the support height

AHYW Made Euro-Amada type Sash punch and 2 V quick change die

Strong cylinder cover and side fence

AHYW CNC Press Brakes 100Ton4m Yawei machinery made in China factory

3mm mild steel and 1.5mm stainless steel plate bending machines 4 axis

Max bending pressure100TonMax metal bending length4200mm, 13FT
Side frames distance3700mmMax daylight420mm
X bending back gauge600mmR axis bending back gauge150mm
X moving speed400mm/sApproach speed220mm/s
Main servo motor power6kwBending speed18-20mm/s
Gross weight8.2TDimension5000*1900*2400mm

AHYW Yawei 13 feet sheet metal pressbrakes-100Ton4m, 4 Axes cnc sheet metal bending brake machines Made in China



AHYW CNC Synchro Brake press, 4 axis, DELEM DA52S with CNC hydraulic crowing table

AHYW 2 axis X&R cnc controlled auto pressbrake back gauge Yawei design made in China

AHYW Pressbrake finger stops moving on dual linear guide

AHYW Amada type quick released clamping on top ram

AHYW CNC Pressbrakes 4 axis bolted table with adjusting functions

AHYW CNC Pressbrake with 2 units adjustable height support Yawei made in China

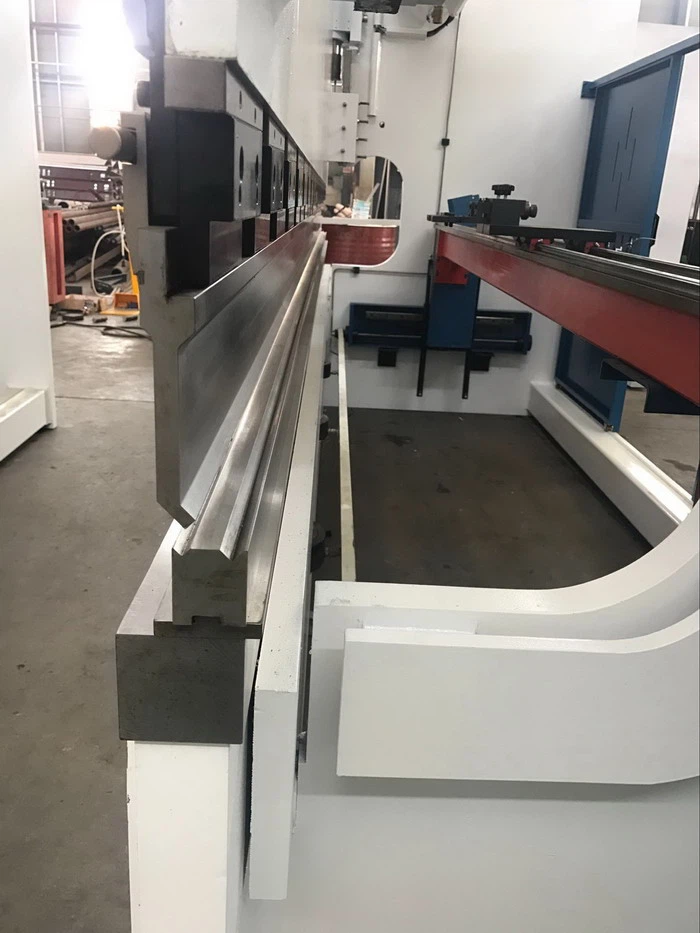

AHYW Amada 88 degree sash top punch and 2 V quick change lower die Yawei China

AHYW Pressbrake cnc controlled X back gauge

AHYW Yawei Synchro pressbrakes with Rexroth valves and Japan Nachi Pump

AHYW CNC brakepress machine with side&rear safety fence Yawei made in China

Delivery time: within 25 days after we get 30% deposit in advance

Payment: T/T bank transfer, 30% deposit in advance and balance before shipment



AHYW CNC Synchro brakespress  included 3 axis cnc pressbrakes, 4 axis cnc press brakes, 6 axis cnc press brakes and 8 axis cnc press brake machines.
