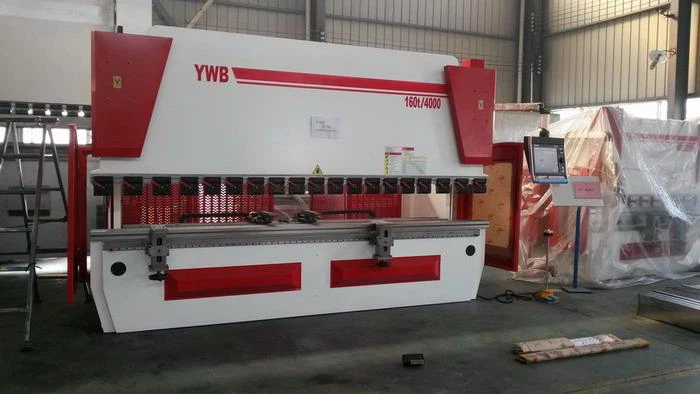

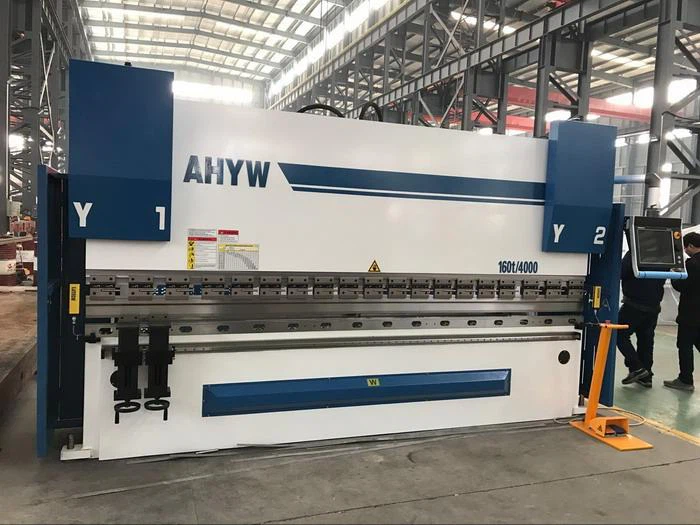

AHYW 6 Axis CNC Synchro Press Brakes 4M

AHYW 6 axis CNC Synchro Press Brakes 4M metal bending brakes made in China AHYW 6 axis cnc pressbrakes means there have 6 axis cnc controlled auto positioning and programing by CNC computer, for synchro pressbrakes, it have Y1&Y2 left&right cylinders controlled by CNC , X,R,Z1&Z2...

AHYW 6 axis CNC Synchro Press Brakes 4M metal bending brakes made in China

AHYW 6 axis cnc pressbrakes means there have 6 axis cnc controlled auto positioning and programing by CNC computer, for synchro pressbrakes, it have Y1&Y2 left&right cylinders controlled by CNC , X,R,Z1&Z2 auto cnc back gauge 4 axis controlled by CNC.

AHYW CNC Pressbrakes with 4 Axis CNC controlled auto  Back Gauge

AHYW  press brakes are equipped with a fast and precise 2-axis CNC controlled pressbrake back gauge. Optionally we offer a 4 Axis CNC back gauge (X-R-Z1-Z2) With this back gauge system the CNC press brake control calculates the depth, height and width of the back gauge fingers. This pressbrake back gauge features superior accuracy and speed. This translates to more correct parts at the end of the day.

This 4 axis cnc auto pressbrake back gauge is accomplished with high quality components such as Japan Yaskawa Servo Motors and drives. Also all full auto back gauge moving Taiwan brand ball screw and linear guide. X Axis speeds are programmable to 400mm/s(options to 600mm/s) with accuracy to 0.05mm, pressbrake fingers are located on linear hardened precision ground dual  linear rails. This will ensure metal bending accuracy for many years to come.

back gauges.jpg

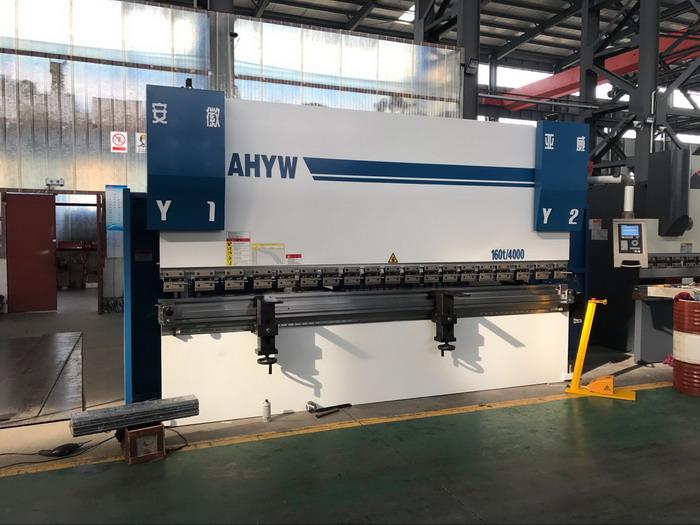

 Standard Configurations of AHYW Yawei made 6 Axis 160Ton 4m CNC Synchro press brake metal bending machine manufactures, suppliers, factory in China:

• DELEM DA66T Touch Screen CNC controller with 2D Graphical offline software


AHYW 6 Axis cnc pressbrakes with DELEM DA66T features cnc controller

• AHYW 6 axis pressbrakes featured X+Y1+Y2+R+Z1+Z2+CNC hydraulic crowning, 6 Axis CNC Hydraulic Brakes pressing machinery made in china

AHYW Z1&Z2 Auto pressbrake back aguge moving on dual linear guide

AHYW CNC pressbrakes with CNC controlled hydraulci crowing table(Anti-deflection table)

AHYW 6 axis cnc brake press with R axis cnc controlled auto moving on ball screw&linear guide

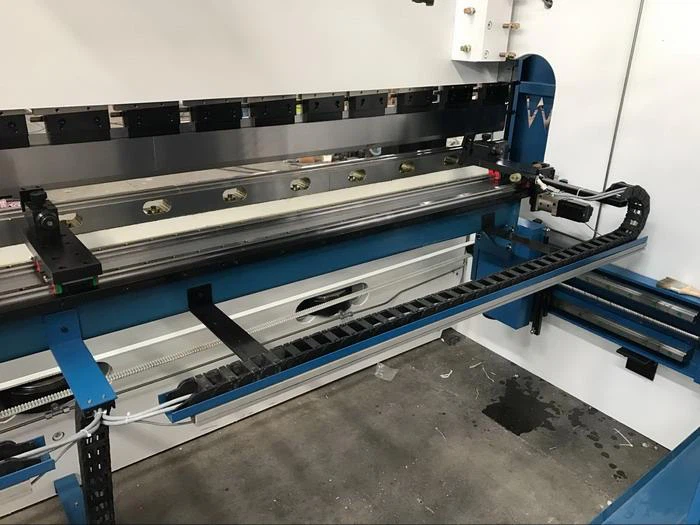

4 axis cnc auto back gauge.jpg

• Taiwan HIWIN Linear guide and ball screw for back gauge, dual linear guide for fingers movement1111.jpg

• AHYW with Japan Yaskawa servo motor and driver for 4 axis CNC controlled back gauge

• SCHNEIDER key electrical components in cabinet

• German Bosch Rexroth valves and Japan Nachi pump, optional Hoerbiger pump for China AHYW cnc press brake


• German EMB fuel pipe union

• Seals: Japan NOK

• AHYW CNC brake press German HEIDENHAIN linear scale or Italy Givi linear scale

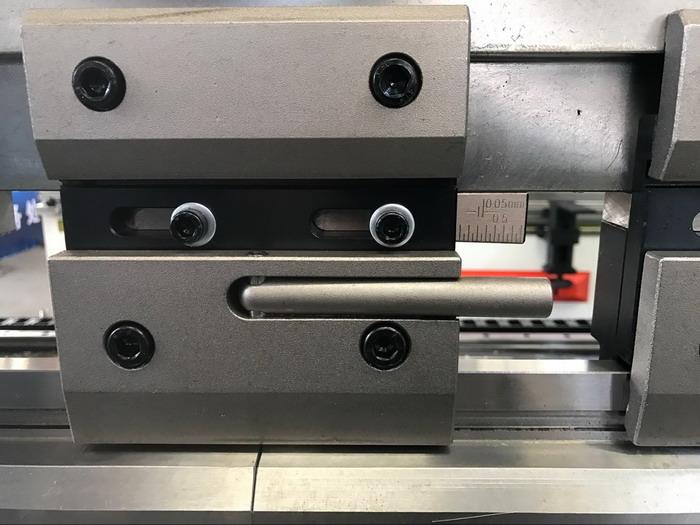

• Amada type CNC Press Brakes quick released  clamping made in china

quick released clamping.jpg

• Dual linear guide for pressbrakes finger stops moving

• EURO CNC pressbrakes 60mm narrow central bench, 60mm square 4V die 835mm sectionalized

• AHYW designed Amada type gooseneck top tool with 835mm sections
• CE light curtains


• CE approved CNC press brake with interlock system side and rear door, safety switch

 Optional Equipment of AHYW China Ahyawei CNC brakes press 4m/160T, 6 axis cnc synchro pressbrakes made in  China

• Different CNC units of ESA and CYBELEC cnc press brakes Controllers

DELEM DA69T 3D full color graphical touch screen controller

ESA S640,650W, 660W full touch screen controller with 2D offline software


Cybelec Modeva 15T full touch screen cnc pressbrake controler

• Wila type CNC press brake Motorized mechanical crowing table(motorised anti-deflection table)

motorised crowing table.jpg

• AHYW 8 axis CNC pressbrakes, Additional control of CNC automatic 6 axis cnc press brakes back gauge like R1,R2,X1,X2,Z1&Z2


AHYW 5 axis cnc controlled pressbrake auto back gauge

AHYW 5 axis cnc controlled pressbrake auto back gauge

•  Front SICK light curtains guarding fro AHYW cnc PRESSBRAKES.

• Lazersafe DSP, FIESSLER,PILZ Laser synchro pressbrake guarding  with CE conformity

Lazersafe guarding.jpg


DSP LASER GUARD.jpg

• TRUMPF, WILA clamping, cnc press brake top punches and lower dies

• AHYW designed pressbrakes Larger daylight opening

• Extra back gauge fingers& front support arms

• Wila Type hydraulic top&bottom tools clamping system

• Special colors and logo

• Special tools design according to customer’s profiles

• Other customized requirements

█ Technical Specifications of AHYW Ahyawei 6 axis  CNC press brakes 4m Yawei China factory for sale :

China AHYW DA66T CNC Press Brake 160T4000

Bending Power

160 Ton

Bending Length

4000mm

Distance between side frames

3600mm

Y1&Y2 Stroke

200mm

Max Ram Daylight opening

420mm

Throat depth

400mm

X back gauge stroke

600mm

R stroke

150mm

Approach Speed

160mm/s

Bending Speed

10-15mm/s

Return Speed

150mm/s

Main motor power

11kw

Gross Weight

12.0T

Dimensions(L*W*H)

4600*2100*2700mm

• Delivery time: Within 30 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Package: Simple plastic cover or Specific Wooden box

• Installation Service and Training Service are all available if required

• Customer’s profile testing before shipment

AHYW 160t4M CNC Synchro pressbrakes,  the best China made quality and popular 4m cnc metal bending brakes Yawei manufactures:

AHYW 3 axis cnc pressbrakes-160T4100mm, DELEM DA52S compact controller, X axis auto back gauge, CNC hydraulic crowning table

AHYW 4 axis cnc pressbrakes-160T4000mm, DELEM DA52S compact controller, X&R axis auto back gauge, CNC hydraulic crowning table(Anti-deflection table)

AHYW 4 axis cnc pressbrakes-160T4000mm, DELEM DA52S compact controller, X&R axis auto back gauge, CNC motorised mechanical crowing table

AHYW 6 axis cnc pressbrakes-160T4000mm, DELEM DA66T color graphical touch screen  controller, X&R ,Z1&Z2 4 axis auto back gauge, CNC hydraulic crowning table(Anti-deflection table)

AHYW 4 axis cnc pressbrakes-160T4000mm, Italy ESA 540 2D graphical contaoller, X&R axis auto back gauge, CNC hydraulic crowning table(Anti-deflection table), CE front Infra red guarding for European CNC pressbrakes metal bending amchines market, European gooseneck punch and 60mm narrow bending table

AHYW 6 axis cnc pressbrakes-160T4000mm, DELEM DA66T color graphical touch screen  controller, X&R ,Z1&Z2 4 axis auto back gauge, CNC hydraulic Anti-deflection table, CE inrfared guarding

If you need more details and any special requirements for AHYW 6 axis cnc pressbrakes, please emial us and AHYW will give you fast response and solutions!

AHYW China also included AHYW QC12K Sheet swing beam hydraulic shears, AHYW QC11K Variable metal Guillotine Shears, WC67K NC torsion bar designed pressbrakes, CNC Fiber laser Cutting machines!
