AHYW 8ft100T CNC Hybrid Pressbrakes 4 Axis

China Yawei AHYW 8ft100T CNC Hybrid Pressbrakes 4 Axis AHYW Eco Hybrid CNC pressbrakes 4axis made in China AHYW CNC synchro pressbrakes 100T manufactures suppliers factory forsale in China AHYW Delem DA58T Touch screen Auto CNC metal bending machines 100T8ft made in China AHYW 4mm mild steel...

China Yawei AHYW 8ft100T CNC Hybrid Pressbrakes 4 Axis

AHYW Eco Hybrid CNC pressbrakes 4axis made in China

AHYW CNC synchro pressbrakes 100T manufactures suppliers factory forsale in China

AHYW Delem DA58T Touch screen Auto CNC metal bending machines 100T8ft made in China

AHYW 4mm mild steel metal bending brakes pressing machine made in China

China Yawei 100T AHYW Hybrid CNC pressbrakes 4 axis controlled

Yawei AHYW SVP Servo pump Synchro Pressbrakes 100T suppliers China

40% energy saving

This Hybrid CNC pressbrake is one cost effective&Eco friendly, electricity&oil combinated bending machine, big power Servo motor to drive pump, servo system can determine rotation speed of motor, thus control oil flow&metal bending pressure with better energy saving performance.


Advantages:

1, Save electricity rates at least 40%

Almost no electricity consumption when bending machine on idle stage

The servo motor just work when operator depress foot pedal, while traditional AC motor always on working status and pump is running all the time even no any bending signal.

2, Lower oil consumption

Hybrid system only execute running oil on demand, it can avoid any throttle&overflow consumption, when operator loading material or operating on controller, the pump is stop&silent,no any oil consumption.

Smaller oil tank and lower oil consumption, reduce 30% oil capacity.

3,Lower noise

Motor and pump won’t running when idle and making program stage.

04, No need oil cooler

Pump won’t running cycle all the time, the oil won’t heat up, prolong using life time of hydraulic parts and oil

05, Fast response of bending cycle

Servo motor have much faster response time than AC motor when ram moving up&down, approach speed can reach 200mm/s.

06, Higher bending accuracy

Servo motor can control running speed and pump oil flow precisely, thus higher bending accuracy can be reached.

Increased Ram Speeds

Better Accuracy

Smoother Ram Positioning at High Speeds

Less Oil Requirement

Main configurations of Yawei AHYW 8FT CNC Hybrid pressbrakes 4 axis:

DELEM DA58T Touch screen CNC pressbrake controller

2D Offline software, metal bending parts designer can make the drawing in computer and operator upload it to Controller directly

Y1+Y2+X+R, 4 Axis automatic controlled, CNC motoized Mechanical crowning table

Main electrical components:Schneider

Yaskawa Servo motor and drive for X&R auto back gauge

ESTUN main servo motor special for pressbrakes made in China

German Bosch Rexroth proportional Valves with safety valves

German Rexroth pump or Voith Pump

Hiwin ball screw and linear guide for CNC controlled auto back gauge X&R

Seal ring:Japanese NOK

Linear scale:German HELDENHAIN or Italy Givi

Amada-EURO type quick released CNC Pressbrakes clamping made in China

Front sheet supports on linear guide, supports height can be adjusted according to different die

Euro-Amada type Sash punch and 2 V quick change die

Strong cylinder cover and side fence

Technical Paremeters of Yawei AHYW Hydrid CNC Press Brakes 100Ton2.6m made in China

4mm mild steel and 2 mm stainless steel plate bending machines 4 axis

Max bending pressure100TonMax metal bending length2600mm, 8FT
Side frames distance2100mmMax daylight420mm
X bending back gauge600mmR axis bending back gauge150mm
X moving speed400mm/sApproach speed200mm/s
Main servo motor power6kwBending speed18-20mm/s
Gross weight7.5TDimension3200*1900*2400mm

Main features of DELEM DA58T 2D Touch screen CNC Pressbrakes 4 Axis controller:

Main images of Yawei AHYW 100Ton8ft CNC Hybrid Pressbrakes bending machines 4 Axis made in China:



Front view of Yawei AHYW CNC Hybrid Pressbrakes 4 axis factory forsale made in China

Wonderful foot pedal for AHYW CNC metal bending brakes  machines China manufactures

Side gate for AHYW CNC Synchro brakespress machines 4 axis Yawei China

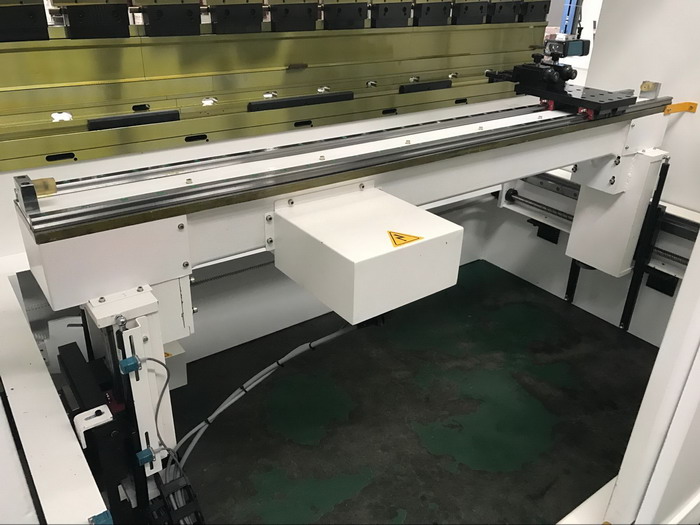

Back view of Yawei Hybrid CNC pressbrakes CNC auto back gauges

Large power servo motor to drive pump, fast response bending time,higher bending accuracy

Dual mechanical guide for ram moving up&down for down stroke CNC pressbrakes Yawei AHYW brand


China ESYUN made large power servo motor&drive for Pump running for Hybrid CNC pressbrakes

Japan stable Yaskawa servo motor&drive for X&R 2 axis CNC controlled Auto back gauge

400mm throat coming standard with Yawei AHYW CNC synchro pressbrakes China quality pressbrakes suppliers

Italy Givi linear scale for monitor Y1&Y2 moving and singal position feedback controlled by CNC pressbrakes controller DELEM DA58T

CE certificated Italy Laser guarding, cnc pressbrakes operator protection when bending metal profiles

Wila type CNC pressbrakes motoized mechanical crowing table which ensure higher accuracy performance

Amada-EURO type CNC pressbrake quick released clamping system

Amada-EURO type 88 degree 42CrMo Sash Punch and 2V quick change lower die

Strong Height adjustable front sheet support moving on linear guide

R axis CNC Auto pressbrakes back gauge controlled by DELEM DA58T Touch screen controller

2 units pressbrakes finger stops moving on dual linear gudie

AHYW CNC Pressbrakes 4 axis, X&R 2 axis CNC controlled Auto back gauge Yawei made in China

If you are looking for one CNC Hydrid Pressbrakes and Hydraulic powered CNC Metal Guillotine 3m &4m 4 axis CNC Hybrid pressbrakes from China factory manufactures, please email us or whatsapp 008615955558219

Anhui Yawei Machine is your best options for China made CNC Hybrid pressbrakes and guillotine shearing machines.

Yawei Machine Tool is one of the best ahyw 8ft100t cnc hybrid pressbrakes 4 axis manufacturers and suppliers in China, welcome to buy ahyw 8ft100t cnc hybrid pressbrakes 4 axis made in China from our factory.
