AHYW Hybrid Press Brake Machines 4 Axis

AHYW Hybrid Press Brake Machines 4 axis Yawei manufactures China AHYW Hybrid cnc pressbrakes 8 feet Yawei made in China CNC Hybrid press brake machines AHYW China manufactures AHYW CNC Hybrid press brake 100T yawei made in China factory AHYW CNC Hybrid brake pressing machine Yawei suppliers...

AHYW Hybrid Press Brake Machines 4 axis Yawei manufactures China

AHYW Hybrid cnc pressbrakes 8 feet Yawei made in China

CNC Hybrid press brake machines AHYW China manufactures

AHYW CNC Hybrid press brake 100T yawei made in China factory

AHYW CNC Hybrid brake pressing machine Yawei suppliers China

China AHYW Hybrid press brakes Yawei manufactures

AHYW CNC Hybrid plate bending brakes machine 4m

Hybrid pressbrakes CNC Delem auto bender Yawei China

AHYW DA58T Touch screen cnc brake press machines china manufactures

AHYW 2D CNC brake press machines Yawei suppliers

AHYW Yawei electro hydraulic servo controlled hybrid pressbrakes China manufactures

AHYW Hybrid brake press 40% energy saving

 Hybrid CNC pressbrake AHYW  is one cost effective&Eco friendly, electricity&oil combinated bending machine, big power Servo motor to drive pump, servo system can determine rotation speed of motor, thus control oil flow&metal bending pressure with better energy saving performance.


AHYW CNC Hybrid pressbrakes Advantages:

1, AHYW Save electricity rates at least 40%

Almost no electricity consumption when bending machine on idle stage

The servo motor just work when operator depress foot pedal, while traditional AC motor always on working status and pump is running all the time even no any bending signal.

2, AHYW Lower oil consumption

AHYW Hybrid system only execute running oil on demand, it can avoid any throttle&overflow consumption, when operator loading material or operating on controller, the pump is stop&silent,no any oil consumption.

AHYW Smaller oil tank and lower oil consumption, reduce 30% oil capacity.

3,Lower noise

Motor and pump won’t running when idle and making program stage.

04, AHYW hybrid pressbrakes No need oil cooler

Pump won’t running cycle all the time, the oil won’t heat up, prolong using life time of hydraulic parts and oil

05, AHYW BRAKE PRESS Fast response of bending cycle

Servo motor have much faster response time than AC motor when ram moving up&down, approach speed can reach 200mm/s.

06, AHYW Brake press Higher bending accuracy

Servo motor can control running speed and pump oil flow precisely, thus higher bending accuracy can be reached.

Increased Ram Speeds

Better Accuracy

Smoother Ram Positioning at High Speeds

Less Oil Requirement

AHYW Hybrid press brakes Main configurations AHYW 8FT CNC Hybrid pressbrakes 4 axis:

AHYW DELEM DA58T Touch screen CNC pressbrake controller

2D Offline software, metal bending parts designer can make the drawing in computer and operator upload it to Controller directly

Y1+Y2+X+R, 4 Axis automatic controlled, AHYW CNC motoized Mechanical crowning table

Main electrical components:Schneider

Yaskawa Servo motor and drive for X&R auto back gauge

ESTUN main servo motor special for pressbrakes made in China

German Bosch Rexroth proportional Valves with safety valves

German Rexroth pump or Voith Pump

Hiwin ball screw and linear guide for CNC controlled auto back gauge X&R

Seal ring:Japanese NOK

Linear scale:German HELDENHAIN or Italy Givi

Amada-EURO type quick released CNC Pressbrakes clamping made in China

Front sheet supports on linear guide, supports height can be adjusted according to different die

Euro-Amada type Sash punch and 2 V quick change die

Strong cylinder cover and side fence

AHYW Hydrid CNC Press Brakes 100Ton2.6m made in China

AHYW Hybrid bending 4mm mild steel and 2 mm stainless steel plate bending machines 4 axis

Max bending pressure100TonMax metal bending length2600mm, 8FT
Side frames distance2100mmMax daylight420mm
X bending back gauge600mmR axis bending back gauge150mm
X moving speed400mm/sApproach speed200mm/s
Main servo motor power6kwBending speed18-20mm/s
Gross weight7.5TDimension3200*1900*2400mm

AHYW  DELEM DA58T 2D Touch screen CNC Pressbrakes 4 Axis controller:

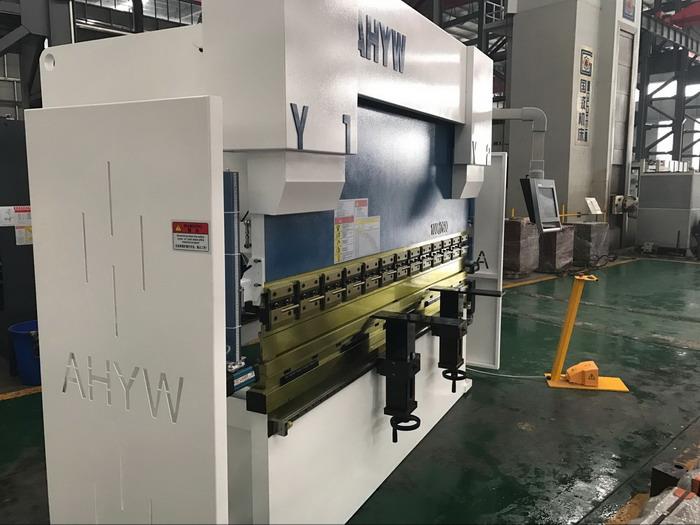

 AHYW 100Ton8ft CNC Hybrid Pressbrakes bending machines 4 Axis made in China:

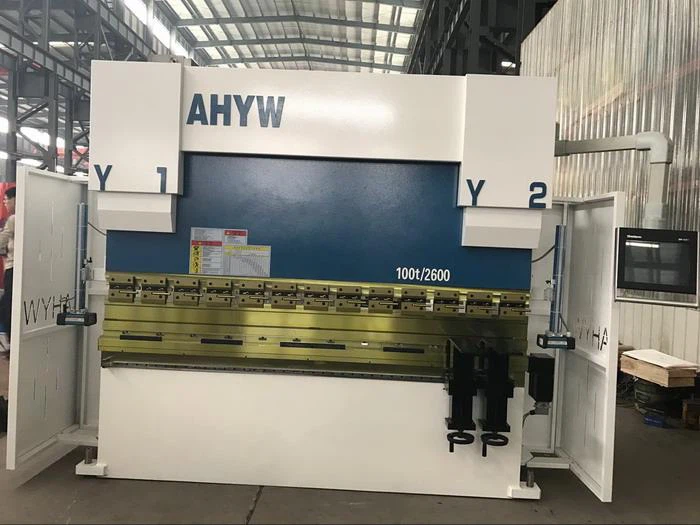

AHYW Front view of Yawei  CNC Hybrid Pressbrakes 4 axis factory forsale made in China

AHYW bending brakes Wonderful foot pedal for AHYW CNC metal bending brakes  machines China manufactures

AHYW Side gate for AHYW CNC Synchro brakespress machines 4 axis Yawei China

AHYW Back view of Yawei Hybrid CNC pressbrakes CNC auto back gauges

AHYW Hybrid pressbrake synchro bending machine design made in China

AHYW Dual mechanical guide for ram moving up&down for down stroke CNC pressbrakes Yawei AHYW brand


AHYW Large power servo motor to drive pump, fast response bending time,higher bending accuracy

AHYW China ESYUN made large power servo motor&drive for Pump running for Hybrid CNC pressbrakes

AHYW Yawei hybrid brake press with Japan stable Yaskawa servo motor&drive for X&R 2 axis CNC controlled Auto back gauge

AHYW Pressbrake standard coming with 400mm throat synchro pressbrakes China quality pressbrakes suppliers

AHYW CNC brake press with Italy Givi linear scale for monitor Y1&Y2 moving and singal position feedback controlled by CNC pressbrakes controller DELEM DA58T

AHYW CNC Pressbrakes CE certificated Italy Laser guarding, cnc pressbrakes operator protection when bending metal profiles

AHYW Wila type CNC pressbrakes motoized mechanical crowing table which ensure higher accuracy performance

AHYW bending brakes  adopting Amada-EURO type CNC pressbrake quick released clamping system

AHYW bending brakes adopting Amada-EURO type 88 degree 42CrMo Sash Punch and 2V quick change lower die

AHYW CNC pressbrakes bending machines Strong Height adjustable front sheet support moving on linear guide

AHYW R axis CNC Auto pressbrakes back gauge controlled by DELEM DA58T Touch screen controller

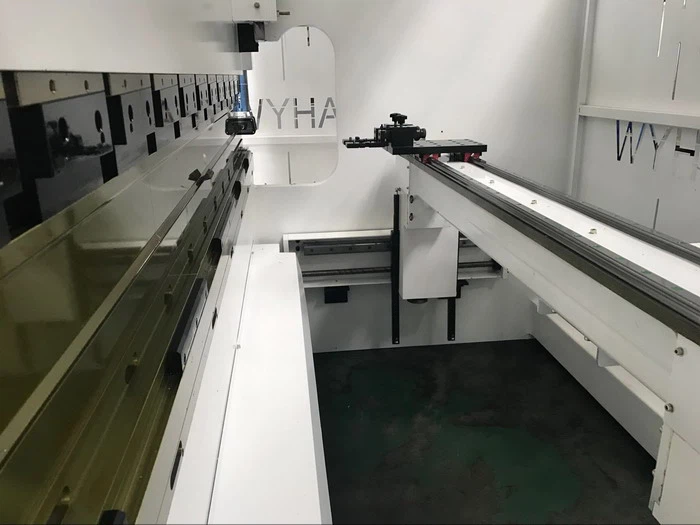

AHYW 2 units pressbrakes finger stops moving on dual linear gudie

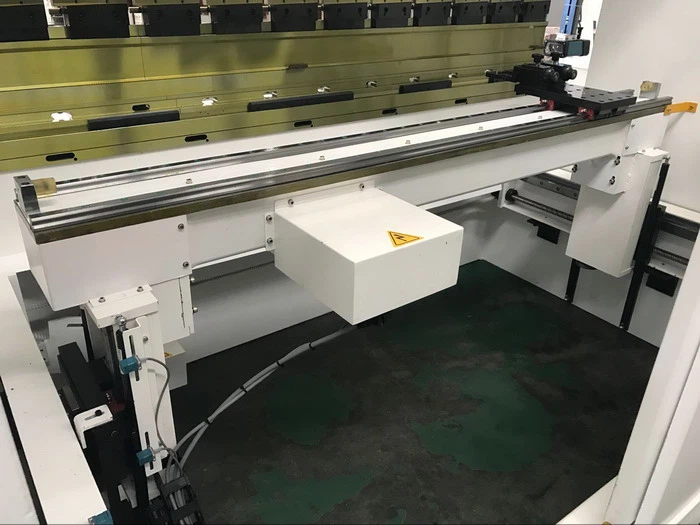

AHYW CNC Pressbrakes 4 axis, X&R 2 axis CNC controlled Auto back gauge Yawei made in China

If you are looking for one AHYW  CNC Hydrid Pressbrakes and Hydraulic powered CNC Metal Guillotine 3m &4m 4 axis CNC Hybrid pressbrakes from China factory manufactures, please email us export@ahycnc.com

AHYW Ahyawei is your best options for China made CNC Hybrid pressbrakes and guillotine shearing machines.


Yawei Machine Tool is one of the best ahyw hybrid press brake machines 4 axis manufacturers and suppliers in China, welcome to buy ahyw hybrid press brake machines 4 axis made in China from our factory.
