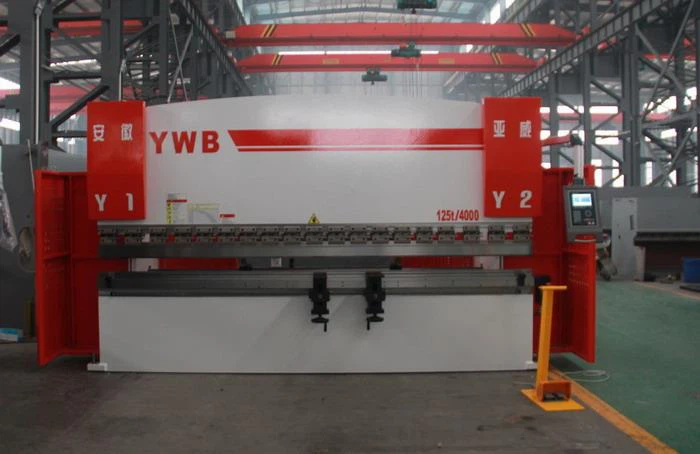

CNC Hydraulic Press Brakes 125Ton3m

CNC Hydraulic Press Brakes 125Ton3m China cnc press brake manufactures suppliers China 10ft 3m cnc press brake bending machines manufactures suppliers 125Ton hydraulic cnc bending machines manufactures made in china AHYW China cnc press brakes manufactures suppliers AHYW CNC Press Brakes...

CNC Hydraulic Press Brakes 125Ton3m

China cnc press brake manufactures suppliers

China 10ft 3m cnc press brake bending machines manufactures suppliers

125Ton hydraulic cnc bending machines manufactures made in china

AHYW China cnc press brakes manufactures suppliers

AHYW CNC Press Brakes 125Ton3m for sale in China

Main fetures of Anhui Yawei 10FT CNC Press Brakes Made in China

RIGID FRAME CONSTRUCTION & DUAL HYDRAULIC CYLINDERS

The foundation of every Yawei CNC  press brake is a solid, mono-block frame made from mill certified, high-yield steel. As a result our press brakes perform accurately and reliably year after year. We’re so confident in our frames that we offer a 10-year warranty with our standard machines.

Dual hydraulic cylinders located on either side of the ram provide faster approach speeds. The cylinders are synchronized to provide smooth motion resulting in precise ram positions to high accuracies.

China Yawei made press brakes can easily accommodate parts with deep bends and that require long tooling because of our open space design. Our machines typically have deeper throat depths, larger daylight spaces and longer stroke lengths than any manufacturer in the market.

We’ve also mounted the RAM GUIDING on the outside of the frame to maximize the distance between the side frames allowing our brakes to accommodate deep part flanges.

Standard configurations for China 10 FT  CNC Sheet Metal Bending Machinery Manufactures Made In China

• Control of Y1,Y2 ,X and CNC Hydraulic press brake crowning, 3 Axis  cnc press brake manufactures china

DELEM DA56S CNC press brake Controller

• Original German Rexroth proportional valves.

Nachi Pump, Japan

High Quality accurate German heidenhain linear encoder

• Japan Yaskawa AC servo motor and drive

China top level cylinders with Japan NOK seals

Schneider-Telemecanique electrical components in cabinet

Wannan main motor

• Standard European cnc press brake punches and dies

Amada/Promecam type cnc press brake quick release clamping

Schneider electrical components in cabinet

Movable sliding front support arm with linear guide, support height adjustable

Removable foot pedal with emergency stop buttons

Color and logo can be made according to your requirements

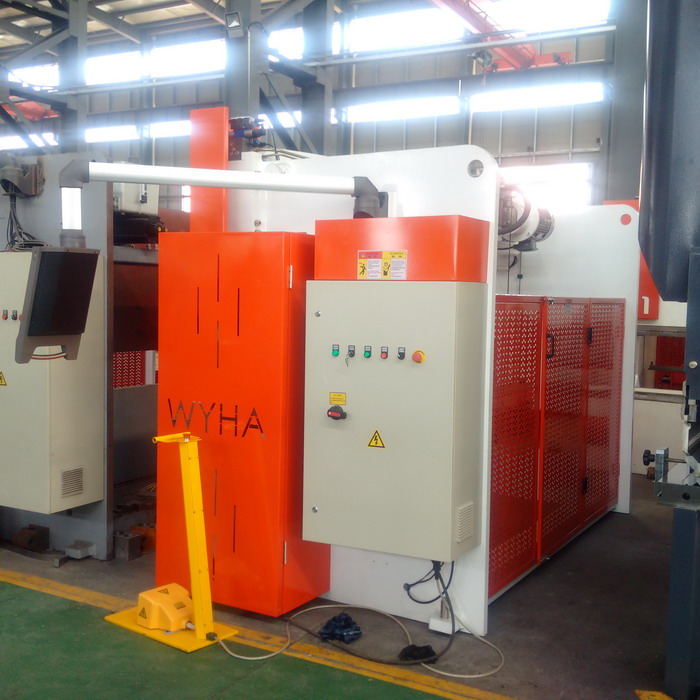

Main images of Anhui Yawei China CNC 10FT metal bending brakes made in china



DELEM DA-56S CONTROL

DELEM DA-56S CONTROL

The compact DA-56S control provides easy CNC programming with the Delem 2D graphical product design tool. Machine adjustment and test bends are reduced to a minimum because of the quick and easy to use bend sequence determination tool.

The CNC program is generated with a one touch key stroke. You are ready to make the first part since all axes positions are automatically computed and the bend sequence has already been simulated on the screen with the machine and tools in real scale. In the production mode of the DA-56S the operator can graphically simulate the bend process of the product guiding him during the press brake operation.

Features of the Delem DA-56S Control Unit

  • 2D graphical programming

  • 10.4” LCD TFT color display

  • Bend sequence determination

  • Developed length calculation

  • Crowning control

  • USB peripheral interfacing

  • Servo, frequency inverter and AC control

  • Advanced Y-axis control algorithms for closedloop as well as open-loop valves.

The basic brake press machine control functions are Y1-Y2 and X axis, a second back gauge axis can be used as R/Z or X2 axis. Also the crowning function is standard.

Standard

  • Synchronized / conventional press brake control

  • Color LCD display

  • LED back light

  • 10.4” TFT, 800x600

  • 500 MHz processor

  • Short travel keyboard technology

  • Memory capacity 256 MB

  • Tool library

  • 30 punches

  • 60 dies

  • Data backup / restore via USB

  • Power-down memorization

  • Integrated valve amplifier

Programming

  • 7 digit program number

  • 20 character drawing number

  • Stock counter (up to 9999)

  • Step repetition (up to 99)

  • Millimeter / Inch

  • Programmable axis speed per step

  • Programmable material properties

  • 2D product programming and visualization

  • Graphical bend sequence determination

  • Fast collision check

  • Free programmable tools

  • Graphical tool programming

  • Radius programming (bumping)

Anhui Yawei CNC Press Brakes Machines Crowning systems

Manual and CNC crowning ensures a constant bend angle across the full length of the machine. This is achieved by pre loading the machine, to offset any possible deflection under load or compensate for any tool wear, so that under load contacting surfaces are parallel to each other.

With CNC crowning systems the press brake control is preprogrammed with machine characteristics and deflection data. With manual crowning a simple spread sheet or chart can be easily developed for each application.

Incorrect Preload Crowning

Yawei CNC Press Brakes back gauge systems Made In China

The correct back gauge for the application can have a substantial positive influence on production part volume and accuracy. The more intricate the parts, typically the more axes on the back gauge you should have. Volume of parts needs to be considered also. A smart, experienced brake press operator can bend, form and produce some very intricate parts without even a single axis back gauge. However, the more time it takes to form the correct part, the more costs you have in the part. So the best scenario would be to have an experienced operator with the correct back gauge system that will magnify their skills. But in today’s market, smart, experienced Press Brake operators are getting hard to find. So the correct back gauge for the application will decrease costs per part by helping to make a good press operator, a great one. The less experience an operator is the more axes you should have. Also, experienced operators know the benefit of correct back gauge for applications. Anhui Yawei Machine is here to consult with you on your application requirements.

2 Axis China Yawei CNC Press Brake Back Gauge

Our AHYW  series press brakes are equipped with CNC 1 axis back gauge. Optionally we offer a 2 Axis CNC back gauge (X-R). Fast and precise 2-axis CNC controlled back gauge that automatically adjusts the X (depth) and R (height) axes to ensure your material is always positioned accurately, resulting in higher quality finished parts.

Axes movements are driven by AC motors and drivers. Using the best components, such as Taiwan ball screws and linear guide cnc press brake back gauge made in china , our back gauge movements are fast and high accuracy.

Finger blocks are mounted on linear guides to be more rigid and accurate, which ensures accurate part positioning over a longer period of time.



Technical Parameters Specifications of Yawei AHYW 3 axis 125Ton3.2m, 10FT CNC Press Brakes made in China:

AHYW CNC Press Brake-125T3200mm, 3 axis

Bending Power

125Ton

Bending Length

3200mm

Distance between side frames

2700mm

Y1&Y2 Stroke

200mm

Max Ram Daylight opening

420mm

Throat depth

400mm

X back gauge stroke

600mm

Optional R axis stroke

150mm

Approach Speed

150mm/s

Bending Speed

10-15mm/s

Return Speed

130mm/s

Main motor power

7.5kw

Gross Weight

7.5T

Dimensions(L*W*H)

3600*1800*2400mm

• Delivery time: Within 30 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Package: Simple plastic cover or Specific Wooden box

• Installation Service and Training Service are all available if required

• Customer’s profile testing before shipment

Buy CNC Metal Press Bending Brake and sheet metal guillotine cutting shears from China Manufactures, Suppliers, Anhui Yawei Machine is your best options for  China Sheet metal Machinery factory.

If have any further questions or special requirements for China 3 Axis AHYW CNC Metal Press Bending Brakes, please send email to export@ahycnc.com
