CNC Press Brake Machine 1000Ton6m

CNC Press Brake Machine 1000Ton6m China 1000Ton large CNC Press Brake Machines suppliers manufactures China 6m large cnc press brake bending machines manufactures suppliers China 1000Ton large CNC Metal press bending brakes manufactures suppliers 1000Ton6m large cnc press brake machines for slae...

CNC Press Brake Machine 1000Ton6m

China 1000Ton large CNC Press Brake Machines suppliers manufactures

China 6m large cnc press brake bending machines manufactures suppliers

China 1000Ton large CNC Metal press bending brakes  manufactures suppliers

1000Ton6m large cnc press brake machines for slae in china

YWB CNC Press Brake-1000Ton6100mm

These CNC press brakes adopt the latest hydraulics and electronics, which contributes to reliable and accurate control over the bending process. In addition, a closed loop is used to control the synchronization of the ram and bending force so as to achieve proper bending depth and bending angle.

General Features of China 1000Ton large CNC Press Brake Machines:

•CNC Press Brakes is overall welded and designed using SOLID WORKS 3D programming.

•Linear encoders are applied to the bending machine to measure ram position. The encoders are connected to the table of the press brakes in such a way that deformation of the side frames during bending does not influence the accuracy of the upper beam position.

• Heavy Duty Bending capacity design, the main frame made of steel welded constructions,has been designed according minimum stretch and optimum resistance standards.

• The Y1 and Y2 axes operate as independent double acting hydraulic systems. Both axis share the same oil supply, but the flow to the valves as well as true positions of the ram are entirely and separately controlled by CNC press brake controller.

Two linear encoders (Y1-Y2) are mounted on two sides of the bending machine. They are used to measure the exact distance between the ram and worktable. The encoders are connected to the press brake table so that the deformation of the side frames does not influence the position. The position data is immediately sent to the control system for calculation and then the output will be turned into control signal and sent to the servo valves (S1-S2). If there is any error, two servo calves will be quickly rectified by CNC system. It always ensures the balance between the ram and worktable.

•Using CNC boring&milling machine to fabricate the main parts, like cylinder connecting board, working table Cylinders, processed as precision from solid full material and made honed;Pistons, processed from forged steel, hardened,grinding is done, and chrome-coated.

• Heavy Duty CNC controlled back gauge with Servo motor and drive, ball screw and linear guide

• Re-assemble Large 6m Bending Machine Design

• DELEM Large Automatic CNC Press Brakes

█ Standard Configurations of China 1000Ton large CNC Press Brake Machines:

• Control of Y1,Y2 ,X and CNC Wila type mechanical Crowning, 3+1 Axis

DELEM DA66T 3D touch screen CNC press brake  Controller, made in Holland

• Original German Bosch Rexroth proportional valves

Japan Nachi hydraulic Pump

High Quality accurate German Heidenhain linear encoder

• Japan Yaskawa AC servo motor and drive

China top level cylinders with Japan NOK seals

Schneider-Telemecanique electrical components in cabinet

Taiwan Hiwin ball screw and linear guide back gauge

Wannan main motor, China famous brand

• Standard straight punch and V opening adjusted die

Amada/Promecam type clamping

Movable sliding front support arm with linear guide, support height adjustable

Removable foot pedal with emergency stop buttons

Color and logo can be made according to your requirements

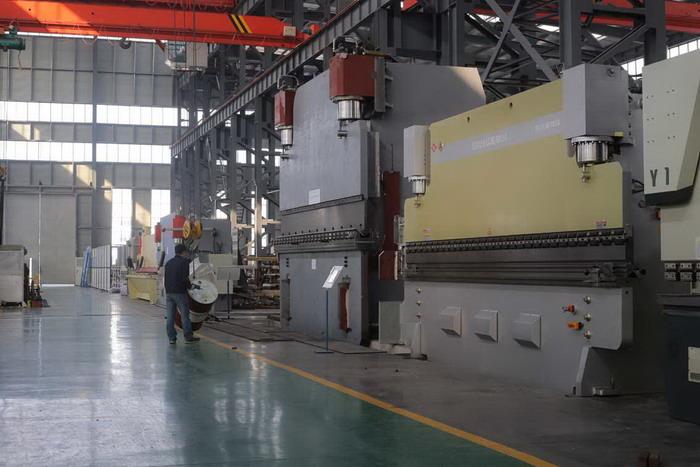

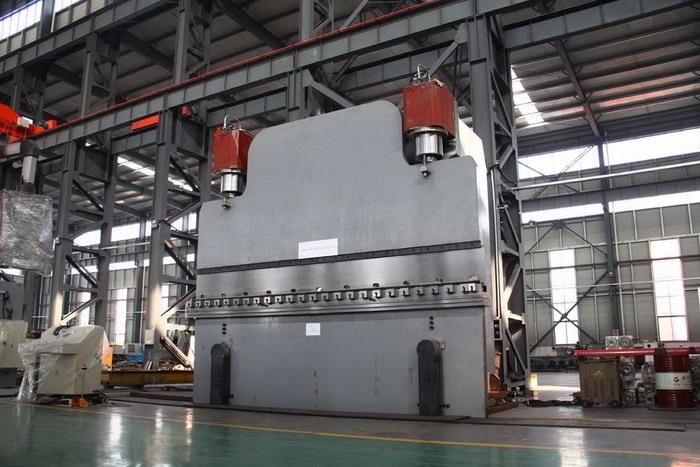

Main images of China 1000Ton large CNC Metal press bending brakes

Solid works 3D design for China 6m large cnc press brake machines

25mm*6m metal sheet metal plate bending testing, large cnc press brake 1000Ton made in china

CNC Mechanical Wila type motorised crowning system for 6m bigger cnc press brake made in china

Delem DA-66T / 69T CNC Press Brake Control Features

  • 2D graphical touch screen programming mode

  • 3D and 2D graphical touch screen programming mode (DELEM DA-69T)

  • 3D visualization in simulation and production

  • 17” high resolution color TFT

  • Full Windows application suite

  • Delem Modusys compatibility (module scale-ability and adaptivity)

  • USB, peripheral interfacing

  • Open system architecture

  • Sensor bending & correction interface

Standard

  • Color LCD display

  • 17” TFT, high brightness

  • 1280 x 1024 pixels, 32 bit color

  • Full touch screen control (IR-touch)

  • Storage capacity 1 GB

  • Storage capacity 2 GB (DELEM DA-69T)

  • 3D graphics acceleration

  • Standard Windows® networking

  • Emergency switch

  • Integrated OEM-panel

  • USB flash memory drive Field option



Optional Equipment of China 1000Ton large CNC Metal press bending brakes:

DA69T,Cybelec 15T, ESA 540,ESA 560 CNC controller
 X3,X4, two units push devices, controlled by CNC controller, with servo motor

Two units Front feeding system controlled by CNC controller
 Two pcs front heavry support with rollers

Side push device after bending, driven by normal motor and controlled by buttons.

Technical Specifications of 1000Ton6m large cnc press brake machines:

DELEM DA66T CNC Press Brake 1000T6100

Bending Power

1000 Ton

Bending Length

6100mm

Max. Bending Plate Thickness

25mm mild steel plate bending

Distance between side frames

4600mm

Y1&Y2 Stroke

400mm

Max Ram Daylight opening

1000mm

Throat depth

600mm

X back gauge stroke

1200mm

Main motor power

75kw

Gross Weight

90T

Dimensions(L*W*H)

6500*3200*5400mm

• Delivery time: Within 60days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Package: Simple plastic cover or Specific Wooden box

• Installation Service and Training Service are all available if required

• Customer’s profile testing before shipment



Buy 6m large CNC Metal Press Bending Brake and sheet metal guillotine cutting shears from China Manufactures, Suppliers, Anhui Yawei Machine is your best options for  China Sheet metal Machinery factory.

If have any further questions or special requirements for China 1000Ton 6m large CNC Metal Press Bending Brakes and 6m large sheet metal cutting machines , please send email to export@ahycnc.com
