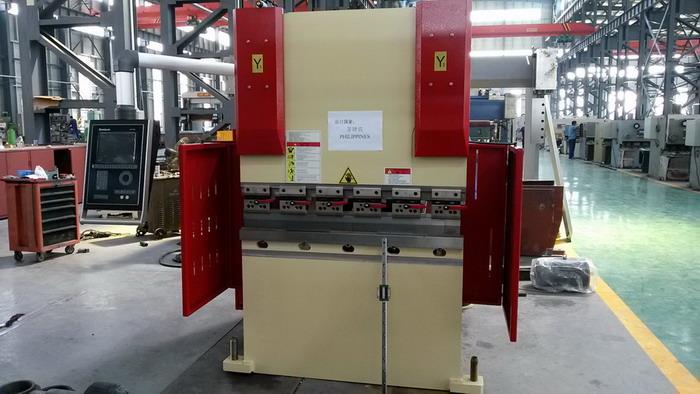

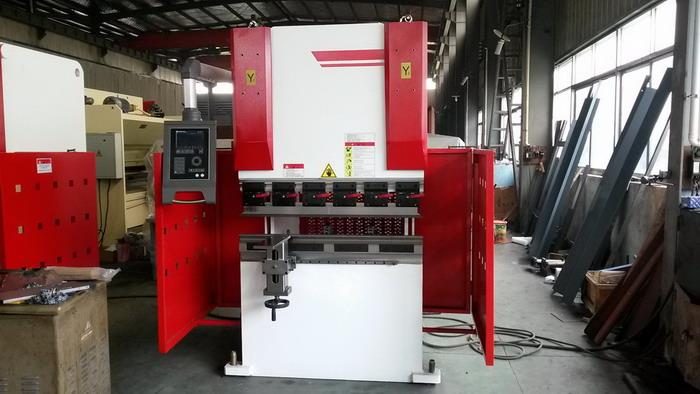

DA52S CNC Down Stroke Press Brake 30T1250

DA52S CNC Down Stroke Press Brake 30T1250 █ General Features: •Whole body of CNC Sheet Metal Working Machinery is full welded and designed using SOLID WORKS 3D programming, CNC down stroke press brakes use German hydraulic proportional valves technology and linear encoder mounted on two sides of...

DA52S CNC Down Stroke Press Brake 30T1250

General Features:

•Whole body of CNC Sheet Metal Working Machinery is full welded and designed using SOLID WORKS 3D programming, CNC  down stroke press brakes use German hydraulic proportional valves technology and linear encoder mounted on two sides of machine, The CNC controller reads the ram position from independent linear encoders while monitoring and adjusting the proportional valves, producing a double-closed loop system.

•The main frame made of steel welded constructions,has been designed according minimum stretch and optimum resistance standards.

• DELEM Automatic CNC Press Brakes Configurations.

•Using CNC boring&milling machine to fabricate the main parts, like cylinder connecting board, working table Cylinders, processed as precision from solid full material and made honed;Pistons, processed from forged steel, hardened,grinding is done, and chrome-coated.

• Down Stroke bending action.

• Small Bending capacity, 4 ft length plate bending

Standard Equipment:

• 4 Axis, Y1+Y2+X+R

• DELEM DA52S CNC Controllers

• Original German Hoerbiger proportional valves.

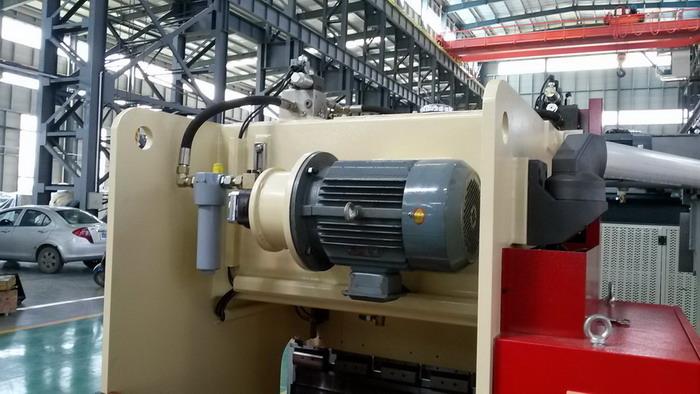

• German Hoerbiger pump

• German Heidenhain accurate linear encoder

• Original Japan Yaskawa servo motor and drive

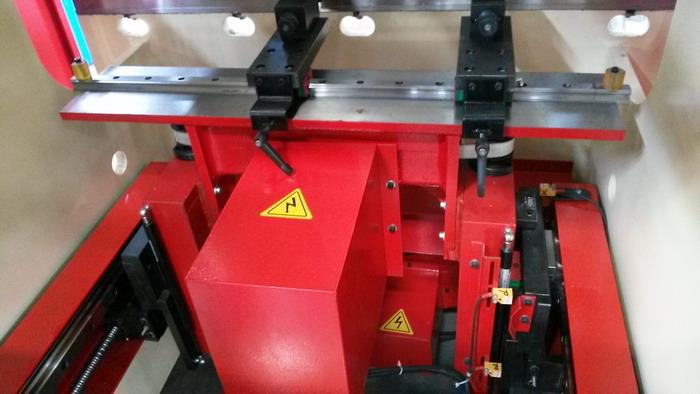

• Cnc controlled back gauge with Taiwan Hiwin ball screw&linear guide

• Manual movable back gauge fingers along of bending length

• China top level cylinders with Japan NOK seals

• Amada/Promecam type quick release clamping

• Schneider-Telemecanique electrical components in cabinet

• Side and rear protection safety fence

• 60mm Narrow table

• Hardened Standard EUROPEAN type 835mm sectionalized top&bottom tool

• Removable foot pedal with emergency stop buttons

• German EMB Pipe connector

Optional Equipment:

• Different CNC units of DELEM, ESA and CYBELEC Controllers

• Wila type Manual Mechanical crowning

• CE front&rear light guard

• Side&rear safety fence with electrical interlock protection system

• DSP, FIESSLER,PILZ Laser guard with CE conformity

• All European tools are available

• Other customized requirements

Technical Specifications:

DA52S CNC Down Stroke Press Brake 30T1250

Bending Power

30 Ton

Bending Length

1250mm

Distance between side frames

900mm

Y1&Y2 Stroke

150mm

Max Ram Daylight opening

380mm

Throat depth

400mm

X back gauge stroke

600mm

R stroke

150mm

Approach Speed

190mm/s

Bending Speed

10-15mm/s

Return Speed

180mm/s

Main motor power

4kw

Gross Weight

3.0T

Dimensions(L*W*H)

1800*1400*2200mm

• Delivery time: Within 25 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Package: Simple plastic cover or Specific Wooden box

• Installation Service and Training Service are all available if required

• Customer’s profile testing before shipment
