ESA 540 CNC 4 Axis Press Brakes 160T4000

SA 540 CNC 4 Axis Press Brakes 160T4000 █ General Features: •CNC Press Brakes is overall welded and designed using SOLID WORKS 3D programming,use German hydraulic proportional valves technology and linear encoder mounted on two sides of machine. •The main frame made of steel welded...

SA 540 CNC 4 Axis Press Brakes 160T4000

General Features:

•CNC Press Brakes is overall welded and designed using SOLID WORKS 3D programming,use German hydraulic proportional valves technology and linear encoder mounted on two sides of machine.

•The main frame made of steel welded constructions,has been designed according minimum stretch and optimum resistance standards.

•Accuracy is further ensured by mounting the linear encoders on a C frame connected to the bed, rather than directly on the side frames, so deflection of the side frames and pressure loads do not affect positioning.

•Using CNC boring&milling machine to fabricate the main parts

• Each time the machine automatically goes to the reference.

• Automatically pressing force adjustment according to bending plate.

• Automatic position settings and retract functions,each step in bending program.

• Programmable and automatically maximum force limitations

• CNC Hydraulic Box Folding Machines design.

• Maximum hydraulic pressure protect by safety valve.

• Electronic overload protect system.

• Automatically calculations unfolded length.

• Selection of Manual, Semi-Automatic or Automatic working modes.

• CNC controlled back gauge with Servo motor and drive, ball screw and linear guide

• Bending 4m Stainless Steel for making Door Frames

Standard Equipment:

• Control of Y1,Y2,X,R and CNC Anti-deflection Crowning

• ESA 540 CNC Controllers

• Original German Rexroth proportional valves.

• German Rexroth Hydraulic System

• High Quality accurate Italy Givi linear encoder

• Japan Yaskawa AC servo motor and drive

• Cnc controlled ball screw&linear guide back gauge

• Manual movable back gauge fingers on linear guide

• China top level cylinders with Japan NOK seals

• Amada/Promecam type quick release clamping

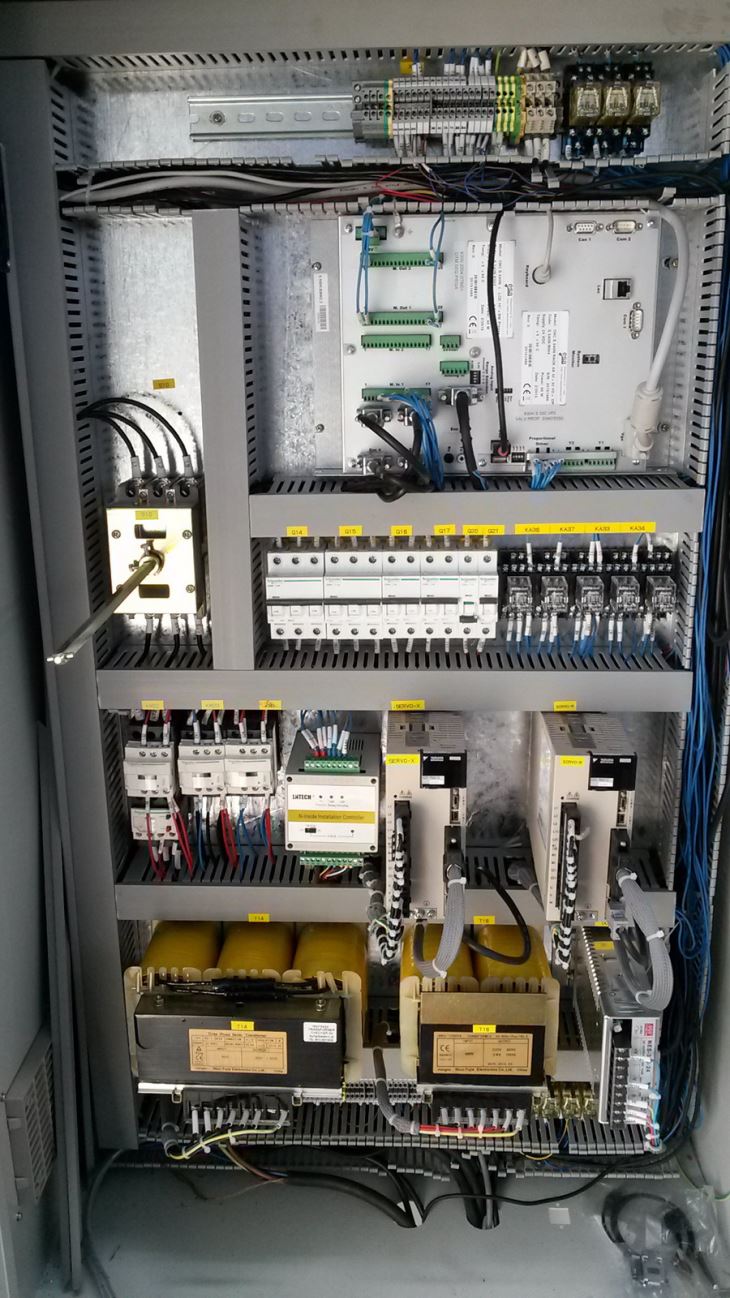

• Schneider-Telemecanique electrical components in cabinet

• 2 Units Movable sliding front support arm with linear guide, support height adjustable

• Side and rear protection safety fence with CE Conformity Electrical interlock system

• 60*60mm Narrow table

• Hardened Standard EUROPEAN type sectionalized 835mm top&bottom tool

• Removable foot pedal with emergency stop buttons

• CE Light guard with Protection height 840mm

Optional Equipment:

• Different CNC units of DELEM, ESA and CYBELEC Controllers

• Wila type CNC Motorized Mechanical crowning

• Additional control of CNC automatic back gauge like X,R,Z1&Z2

• DSP, FIESSLER,PILZ Laser guard with CE conformity

• TRUMPF, WILA clamping, top&bottom tools.

• American type compatible top tool clamping system and tools

• Deep throat depths

• Double linear guide for fingers movements

• 100mm back gauge stroke

• 500mm daylight opening

• 4 Units back gauge fingers& front support arms

• European Hydraulic clamping system

• Special tools design according to customer’s profiles

• OEM Services

Technical Specifications:

ESA 540 CNC 4 Axis Press Brakes 160T4000

Bending Power

160 Ton

Bending Length

4000mm

Distance between side frames

3600mm

Y1&Y2 Stroke

200mm

Max Ram Daylight opening

420mm

Throat depth

400mm

X back gauge stroke

800mm

R stroke

150mm

Approach Speed

170mm/s

Bending Speed

10-15mm/s

Return Speed

160mm/s

Main motor power

11kw

Gross Weight

11T

Dimensions(L*W*H)

4500*1800*2450mm

• Delivery time: Within 30 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Package: Simple plastic cover or Specific Wooden box

• Installation Service and Training Service are all available if required

• Customer’s profile testing before shipment
