Yawei 4ft Mini CNC Press Brake

 Yawei 4ft Mini CNC Press Brake factory forsale in China China mini cnc metal plate bending machines manufactures suppliers China Yawei PBE 4ft mini cnc sheet metal pressbrake bending machines manufacture suppliers China 1m smart cnc pressbrake metal bending brakes 30T factory China CNC...

Yawei 4ft Mini CNC Press Brake factory forsale in China

China mini cnc metal plate bending machines manufactures suppliers

China Yawei PBE 4ft  mini cnc sheet metal pressbrake bending machines manufacture suppliers

China 1m smart cnc pressbrake metal bending brakes 30T factory

China CNC Automatical plate bending brakes machine 30T for sale

AHYW CNC Pressbrakes-30T/1250mm

GENERAL FEATURES of Yawei 4ft AHYW mini cnc sheet metal pressbrake plate bending machines in China

· Machined with high accuracy, dynamic and static stifness provided

· Hydraulic synchronized valve technology with its repeatable bending accuracy helps you get same bending quality on different side of work piece.

· Upper beam positioning is made by linear scales with 500 times in a second and with 0,0025 mm precision rate.

· Single axis back gauge (X=600) system moves fast on a ballscrew&linear guide

· Chromed and honed hydraulic cylinders keep its precision even in high tonnages.

· Quick release top tool clamping system

· German Bosch Rexroth hydraulic system

· Perfect bending results are achieved repeatedly by synchronized valf technology on cylinders.

· Schneider  electric systems.

· Multi-V Bottom die allows you to make variety of bendings on different thicknesses.

· Easy to use and movable control unit allows operator to choose his working position.

· Switched side doors for your protection.

Standard configurations for China Yawei AHYW 4ft&30Ton  mini cnc sheet metal pressbrake bending machines

• Control of Y1,Y2 ,X ,3 Axis cnc press brake manufactures china

 DELEM DA52S CNC press brake Controller

• Original German Rexroth proportional valves.

 Nachi Pump, Japan

 High Quality accurate German heidenhain linear encoder

• Japan Yaskawa AC servo motor and drive

 China top level cylinders with Japan NOK seals

 Schneider-Telemecanique electrical components in cabinet

 Wannan main motor

• Standard European cnc press brake top punches and Amada type 2V quick change dies

 Amada/Promecam type cnc press brake quick release clamping

 Schneider electrical components in cabinet

 Movable sliding front support arm with linear guide, support height adjustable

 Removable foot pedal with emergency stop buttons

 Color can be made according to customer's requirements



Standard features of DELEM DA52S CNC press brake controller, made in Holland

DELEM DA-52S CONTROL

The compact DA-52S is a complete CNC solution for Y1-Y2 synchronized press brakes. The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.

Equipped with the Delem user friendly interface, the DA-52S provides all main press brake functionality. The unique hot key navigation gives direct access to the programs in memory and enables quick and easy programming of a product.

All common bend parameters are located on one page. For advanced parameters an additional page can be selected. Angle programming of the Y-axis, crowning function and pressure control are standard on board.

Features of the Delem DA-52S Control Unit

Quick, one page programming

Hot key navigation

7" wide screen color TFT

Up to 4 axes (Y1, Y2, and 2 auxiliary axes)

Crowning control

Tool/material/product library

USB, peripheral interfacing

Advanced Y-axis control algorithms for closed

loop as well as open loop valves

Panel based controller with optional housing

Standard

Synchro cnc press brake control

Color LCD display

LED back light

266 MHz processor

Short travel keyboard technology

Memory capacity 64 MB

Tool library

30 punches

30 dies

Data backup / restore via USB

Power-down memorization

Integrated valve amplifier

Anhui Yawei 30Ton&4ft Mini Hydraulic CNC Press Brake 3Axis specifications:

Max. bending pressure30TonMax bending length1250mm, 4ft sheet metal bending
Y1&Y2 stroke150mmThroat depth 400mm
Max daylight opening380mmX back gauge stroke600
Main motor power5.5kwDimension2000*1700*2200mm

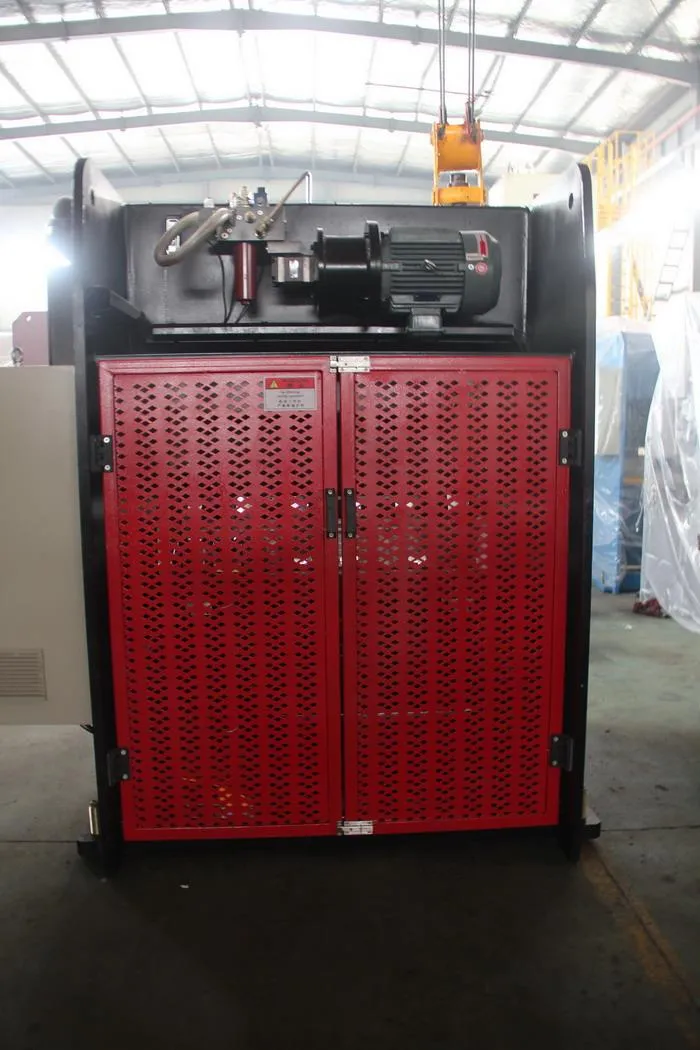

Main images of 3 Axis Yawei AHYW 4ft metal sheet Mini CNC Press Brake bending machines manufactures suppliers factory china

03 30T CNC PRESS BRAKE.jpg


01 30T DA52S.jpg

02 30T1250 CNC.jpg

X&R CNC plate bending machine automatical back gauge

05 XR back guage.jpg

German original hydraulic system for China Yawei AHYW CNC pressbrakes factory

04 Hoerbiger valves and pump.jpg

Amada type cnc press brake top punch and 2 V quick change lower die


Amada cnc press brake top punches quick change clamping made in China


CNC finger stops for Chian Yawei  3axis AHYW cnc press brakes



The following EURO tooling will be standard coming with this Yawei small 30T cnc press brake

88 degree top punch, included 500mm length and 1 set of 835mm sectionalized length

88 degree punch.png

Amada 2 way quick change metal bending die, V8&v12, 500mm and 835mm section length

2V 8 12.png

CNC pressbrake die rail with 1.25m length

die rail.png

Options of Yawei 30Ton Mini cnc press brake for sale china

DELEM DA56S, DA66T Touch screen CNC Press Brake controllers

Cybelec CNC Press Brake Controllers

6 Axis cnc press brakes suppliers china

8 axis cnc press brakes manufactures china

All European CNC Press Brake tooling made in china

Terms and aftersales service:

 Delivery time: Within 30 days

 Payment term: T/T, 30% down payment in advance and balance before shipment

 Warranty: 18 months

 Loading port: Shanghai, China

 Certificate: ISO, special requirements for CE conformity

 After Sales Service: 7*24 hours, quick response

 Package: Simple plastic cover or Specific Wooden box

 Installation Service and Training Service are all available if required

• Customers profile testing before shipment

If you want to buy 30Ton&4ft Mini CNC Metal Press Bending Brakes from China Manufactures, Suppliers, Anhui Yawei Machine is your best options for  this mini cnc plate bending machines

If have any further questions or special requirements for China 3 Axis AHYW 4ft mini CNC Metal Pressbrake bending machines, please send email to export@ahycnc.com
