Ahyawei 6m Large Metal Press Bending Machines

Ahyawei 6m Large Metal Press Bending Machines factory forsale made in China China Yawei 6m metal press brakes manufactures suppliers China Ahyawei 6m metal sheet plate bending machines manufactures suppliers China Yawei 6m sheet metal plate bending brakes factory suppliers Ahyawei 6m mild steel...

Ahyawei 6m Large Metal Press Bending Machines factory forsale made in China

China Yawei 6m metal press brakes manufactures suppliers

China Ahyawei 6m metal sheet plate bending machines manufactures suppliers

China Yawei 6m sheet metal plate bending brakes factory suppliers

Ahyawei 6m mild steel press brakes bending machines factory made in China

China Ahyawei 20ft sheet metal bending brakes manufactures

China Yawei 6m bigger metal sheet pressing brakes factory

Ahyawei 6m metal bending brakes machines manufactures suppliers

China Ahyawei 500T6mtr sheet metal press brakes suppliers

China Ahyawei 12mm mild steel press brakes bending machines made in China



This China Ahyawei WC67K NC Press Brakes 500T6000mm is torsion bar nc press brake design with mechnical torsion bar synchro connected with ram for both of sides, this Ahyawei 500T6m nc hydraulic press brakes can bending 12mm mild steel&6mm stainless steel plate with Max 6m&20ft metal sheet bending length, it's motorized power back gauge with ESTUN E21 nc press brake contaoller, 2 axis included Xbending stroke, and Y axis bending depth, standard Ahyawei 6m press brakes with Manual Hydraulic deflection table, 3 units compensation cylinder mounted on lower beam, it also have manual crowning pressure adjustment device, can adjust compensation values according to different metal bending thickness. Ball screw back gauge as standard configurations.



If you are lloking for one 6 meter large metal cutting and bending brakes from China, please let us know your Max metal thickness for yout cutting&bending job, then we can forward you best offer, normally metal cutting cover 4mm, 6mm, 8mm, 10mm, 12mm, 16mm mild steel cutting thickness, up to 40mm thickness are all available in Ahyawei, also for 160T small 20ft metal bending brakes press, 200Ton, 300Ton, 400Ton,500Ton&600T bending capacity, up to 4000Ton, ahyawei can design special sheet metal working machinery for your job, like special large gap, longer back gauge stroke for metal guillotine shears; deep throat depth, large dayling opening, customized tooling and other cnc automatical bending system, only need you drop us one email, then you will get professional offer ASAP.

For now, all Ahyawei 6m large sheet cutting machines and metal bending brakes press machines are standard coming with NC controller, position and program function for back gauge with hydraulic power shears; 2 axis program function with back gauge stroke and bending depth for metal bending brakes.

What's you want to make? What's your final products for your fabricating job? Do you have a final profiles drawing?

Send us, then we can design customized machines and proper tooling for it.

China Ahyawei NC metal bending Press brake specifications, Press Brake Ahyawei-500T6000mm suppliers china

Max metal bending pressure500TonsMax sheet metal bending length6000mm
Max bending thickness12mm mild steelThroat400mm
Y axis stroke320mmMax daylight 590mm
Gross weight41T Dimensions6500*2150*3500mm

█ Standard Equipments of China Ahyawei  6m large Sheet Metal Bending Brakespress suppliers manufactures In china, NC 2 axis torsion bar press brake design

• China ESTUN E21 NC Press Brake controller

• Manual Hydraulic Crowning table, there are some units compensation cyliners mounted in lower beam, normallly 3 units cylinders for 6m press brakes, 5 units for 7m&8m press brakes

• Taiwan Shihlin frequency inverter

  Ball screw  NC Press Brake back gauge

 Motorized bending brake stroke

 Motorized press brake back gauge with retract function made in china

 Siemens key electric components

 USA SUNNY Gear pump

 China top level compact hydraulic valves

 German EMB Pipe connector

• Amada type press brake clamping system

 Standard Amada or European press brake straight punch and Multi-V die

 Wider working table with T slots

 2 Units front support moved on T slots with located bolts

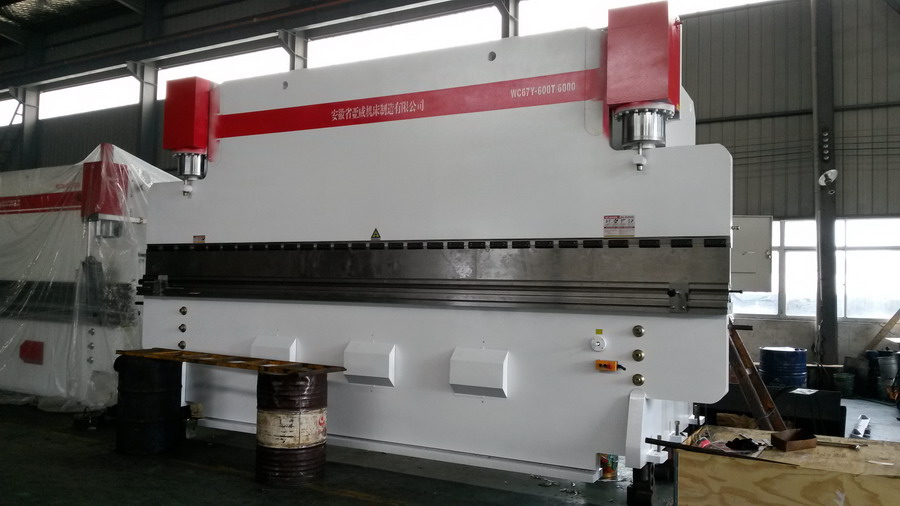

Main images of China Ahyawei 6m sheet metal 2 axis press brake bending machines manufactures suppliers factory forsale

Ahyawei WC67K 300T 8m sheet metal pressbrake bending machines manufactures suppliers

China Yawei 6m large 600T bending pressure 16mm mild steel bending brakes made In China

China Ahyawei 2 axis torsion bar nc press brakes design

Terms&conditions, sale service

• Delivery time: Within 30 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Package: Simple plastic cover or Specific Wooden box

• Installation Service and Training Service are all available if required

• Customer’s profile testing before shipment

If have any further questions or special requirements for China Ahyawei 6m large sheet metal cutting shears and 6m&20ft larger metal plate bending machines, please send email to export@ahycnc.com
