AHYW 6M NC Pressbrakes Bending Machine

AHYW 6M NC Pressbrakes Bending Machines Yawei China manufactures AHYW 6M NC plate bending machines China Yawei factory AHYW 2 axis NC plate bender Yawei manufactures China AHYW WC67K NC Hydraulic pressbrakes Yawei suppliers China AHYW Yawei 6m large sheet metal bending brakes machine China AHYW...

AHYW 6M NC Pressbrakes Bending Machines Yawei China manufactures

AHYW 6M NC plate bending machines China Yawei factory

AHYW 2 axis NC plate bender Yawei manufactures China

AHYW WC67K NC Hydraulic pressbrakes Yawei suppliers China

AHYW Yawei 6m large sheet metal bending brakes machine China

AHYW 20 feet large metal bending machines Yawei China

AHYW 200T NC plate bending brake machines Yawei manufactures China


AHYW Yawei China made  WC67K NC Press Brakes 200T6000mm is torsion bar nc bending brakes machine design with mechnical torsion bar synchro connected with ram for both of sides, this AHYW Yawei 200T6m nc hydraulic press brakes can bending 4mm mild steel&5mm stainless steel plate with Max 6m&20ft metal sheet bending length, it's motorized power back gauge with China ESTUN made E21 nc press brake controller with auto back gauge retraction function, frequency inverter controlled for X&Y axis. 2 axis included X bending stroke, and Y axis bending depth, standard AHYW Yawei China  6m press brakes with Manual Hydraulic deflection table, 3 units compensation cylinder mounted on lower beam, it also have manual crowning pressure adjustment device, can adjust compensation values according to different metal bending thickness. Ball screw back gauge as standard configurations.

You can also choose Manual mechanical crowing table for AHYW 6m large pressbrakes, we recommend clients to use Mechanical type if you are bending stainless steel or have higher requirements for straightness of bending profiles,

Are you looking for one 6 meter large metal cutting and pressbrakes from China manufactures suppliers?

Let AHYW know your Max metal thickness for yout cutting&bending job, then we can send you best offer, normally metal cutting cover 4mm, 6mm, 8mm, 10mm, 12mm, 16mm mild steel cutting thickness, up to 40mm thickness are all available in Ahyawei, also for 160T small 20ft metal bending brakes press, 200Ton, 300Ton, 400Ton,500Ton&600T bending capacity, up to 4000Ton.

 AHYW Yawei China can design special sheet metal working machinery for your job, like special large gap, longer back gauge stroke for metal guillotine shears; deep throat depth, large dayling opening, customized tooling and other cnc automatical bending system,

Only need you drop us one email(export@ahycnc.com), then you will get professional offer ASAP.

█ AHYW Yawei 6m200T large sheet metal NC metal plate bending machines suppliers manufactures In china, NC 2 axis torsion bar press brakes machine  design

• ESTUN China made E21 NC 2 axis pressbrake controller

• Manual Hydraulic Crowning table, there are some units compensation cyliners mounted in lower beam, normallly 3 units cylinders for 6m press brakes, 5 units for 7m&8m press brakes(Optional Manual hand wheel mechanical crowing table

• Taiwan Shihlin frequency inverter for X&Y axis

  Ball screw&linear gudie with  NC morotised AHYW Press Brake back gauge

 Motorized bending brake stroke

 Motorized press brake back gauge with retract function made in china

 Siemens key electric components

 USA SUNNY Gear pump

 China top level compact hydraulic valves

 German EMB Pipe connector

• Amada type press brake clamping system

 Standard Amada or European press brake straight punch and Multi-V die

 Wider working table with T slots

 2 Units front support moved on T slots with located bolts

AHYW China Yawei made WC67K NC Pressbrake-200T6000mm specifications

Max metal bending pressure200TonsMax sheet metal bending length6000mm
Max bending thickness4mm mild steelThroat400mm
Y axis stroke200mmMax daylight 460mm
Gross weight17T Dimensions6500*2000*3100mm

AHYW Yawei NC Press Brake Machine-200T6000mm manufactures suppliers


AHYW 6m NC plate bending machines Front view

AHYW 20 feet metal bending machines rear view

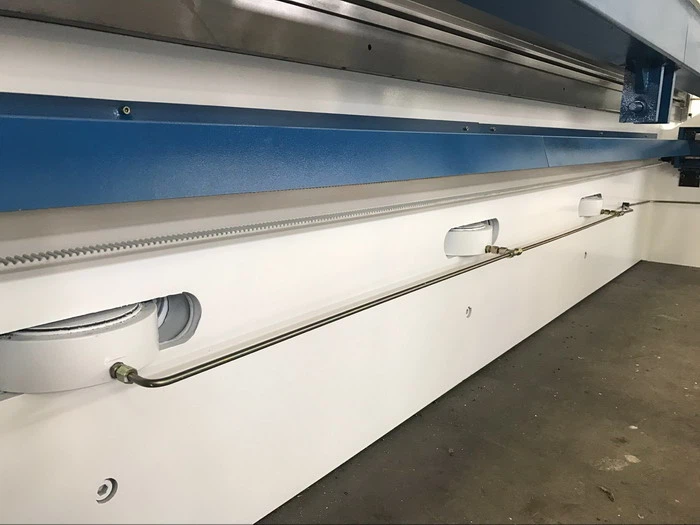

AHYW Manual adjusting valves  for Hydraulic compensation cylinders

AHYW NC Manual crowning table for 6m large pressbrake machines

AHYW 6M NC torsion bar pressbrakes design Yawei China manufactures

AHYW standard straight top punch and Multi V die for Yawei China 6m large pressbrake bending machines


Delivery time; within 30 days after we get 30% deposit

Shipment: 1*40 feet open top container


Do you have any interesting in this AHYW Yawei 6m large sheet metal bending brake machines?

Or do you have any questions or special requirements, please send email to export@ahycnc.com

Yawei Machine Tool is one of the best ahyw 6m nc pressbrakes bending machine manufacturers and suppliers in China, welcome to buy ahyw 6m nc pressbrakes bending machine made in China from our factory.
