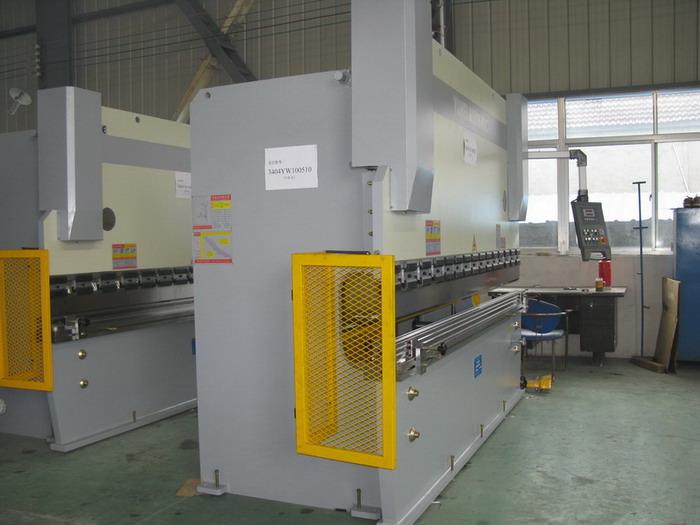

WC67K Hydraulic Press Brakes 100T3200

General Features:

• Steel welded machine frame and top beam with optimum strength and minimum deflection.

• Full welded structure machined on CNC Boring&Milling machine.

• Mechanical Synchronous,Ram parallelism is guaranteed by using a heavy duty anti-torsion bar system, this solid torsion links both ends of the ram and maintains parallelism throughout the entire stroke, which also have adjusting device.

• Using mechanical depth stops inter-grated in both hydraulic cylinders.

• Three speeds changing function, approach, bending and return speed

• Adjustable ram stroke

• Adjustable opening height

• The speed change point can be set very easily with an adjustable cam on the side of the ram

• Maximum hydraulic pressure protected by safety switch with read-out

• Limit switch protection for back gauge and bending depth

• Compact hydraulic mono-block with pressure relief valves for safety

• Hardened ram guides

• 2 Units China top level cylinders with Japan NOK seals

Standard Equipment:

• Swinging Control of Y&X, 2 axis ESTUN E21 NC controller, 3m NC plate bending

• Frequency inverter

• Motorized bending depth adjustment by 2 push buttons from the control panel with read-out

• Motorized back gauge with retract function

• Siemens key electric components

• USA SUNNY Gear pump

• China top level compact hydraulic valves

• German EMB Pipe connector

• Amada type top tool clamping with micro adjusting function

• Ball screw back gauge with shaft

• 2-4 units finger stops with Multistages design used one short and others for longer bending stroke, fingers have folding up feature.

• Standard straight punch and Multi-V die

• Wider working table with T slots

• 2 Units front support moved on T slots with located bolts

• Side and rear safety guards

• Removable foot pedal with emergency stop button

• Oil tank level indicator

Optional Equipment:

• Servo motor and drive controlled, fast and accurate X&Y axis positioning

• DELEM DA41S, ESA 525,CYBELEC Touch6 NC Controller

• Amada type quick released clamping

• Manual hydraulic or motorized mechanical crowning system

• Ball screw and linear guide back gauge

• CE Front&Rear light guard

• CE Laser guarding system

• Height adjustable finger stops

• Larger daylight opening

• Bigger throat depth, like 500mm-1000mm with different bending capacity

• Longer back gauge stroke, up to 1000mm

• Front sheet support with linear guide

• Oil cooler

• Extra finger stops

• Special sheet cover

• Special color&logo design

• Other Customized requirements

Technical Specifications:

WC67K Hydraulic Press Brakes 100T3200

Bending Power

100 Ton

Bending Length

3200mm

Distance between side frames

2600mm

Y Axis Stroke

150mm

Max Ram Daylight opening

320mm

Throat depth

400mm

X back gauge stroke

600mm

Main motor power

7.5kw

Gross Weight

6.0T

Dimensions(L*W*H)

3400*1600*2400mm

• Delivery time: Within 20 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Package: Simple plastic cover or Specific Wooden box

• Installation Service and Training Service are all available if required

• Customer’s profile testing before shipment
