Yawei 250Ton3m NC Press Brakes

Yawei 250Ton3m NC Press Brakes factory forsale Made in China China 3m NC sheet metal pressbrakes machines manufactures factory China 250T sheet metal hydraulic bending machines suppliers China 2 axis NC metal press bending brakes factory forsale China E21 NC Press brake bending machines...

Yawei 250Ton3m NC Press Brakes factory forsale Made in China

China 3m NC sheet metal pressbrakes machines manufactures factory

China 250T sheet metal hydraulic bending machines suppliers

China 2 axis NC metal press bending brakes factory forsale

China E21 NC Press brake bending machines suppliers

China 3m hydraulic power sheet metal bender manufactures

Chian 3m mild steel plate bending machinery manufactures suppliers

WC67K NC Hydraulic Press Brake 250T3200



If you looking for one sheet metal press brake bending machine from China, you should be clear for your bending profile requirements, like sheet metal Max bending thickness, metal bending length, metal bending precision, also whether need multi-function angle programing; if only need to bending the metal sheet to one detailed drgree, Yawei WC67K NC press brake can do your bending job, if need many bending angle or higher bending accurancy with high bending effiency, it's better to buy Yawei AHYW CNC Press brake.

This Yawei NC Press brake can bending metal sheet to different angle, but operator should be caculate the bending depth(Y axis) value according to their experience of press brake metal bending, WC67K NC press brake standard coming with ESTUN E21 NC controller, with Taiwan Shihlin frequency inverter, motorised NC press brake back gauge with ball screw&linear guide

Standard Configurations of China Anhui Yawei 2 Axis WC67K NC Metal press Bending Brakes suppliers manufactures In china

• China ESTUN E21 NC Press Brake controller

• Taiwan Shilin frequency inverter

  Ball screw&linear guide NC Press Brake back gauge

 Motorized bending brake stroke

 Motorized press brake back gauge with retract function made in china

 Siemens key electric components

 USA SUNNY Gear pump

 China top level compact hydraulic valves

 German EMB Pipe connector

• Amada type press brake clamping system

 Standard Amada or European press brake straight punch and Multi-V die

 Wider working table with T slots

 2 Units front support moved on T slots with located bolts

 Technical Specifications of Yawei NC Hydraulic Press Brakes 250Ton3m  manufactures suppliers in china

WC67Y NC Metal Bending brake Machine 250T3200

Bending Power

250Ton

Bending Plate Thickness

Carbon Steel 11mm

Bending Length

3200mm

Distance between side frames

2600mm

Y Axis Stroke

250mm

Max Ram Daylight opening

590mm

Throat depth

400mm

X back gauge stroke

600mm

Main motor power

18.5kw

Gross Weight

15T

Dimensions(L*W*H)

3600*1900*2900mm

 Delivery time: Within 25 days

 Payment term: T/T, 30% down payment in advance and balance before shipment

 Warranty: 18 months

 Loading port: Shanghai, China

 Certificate: ISO, special requirements for CE conformity

 After Sales Service: 7*24 hours, quick response

 Shipping Term: One 40HC  container

 Installation Service and Training Service are all available if required

• Customers profile testing before shipment

Main features of E21 NC 2 axis Press Brake controller Made in China

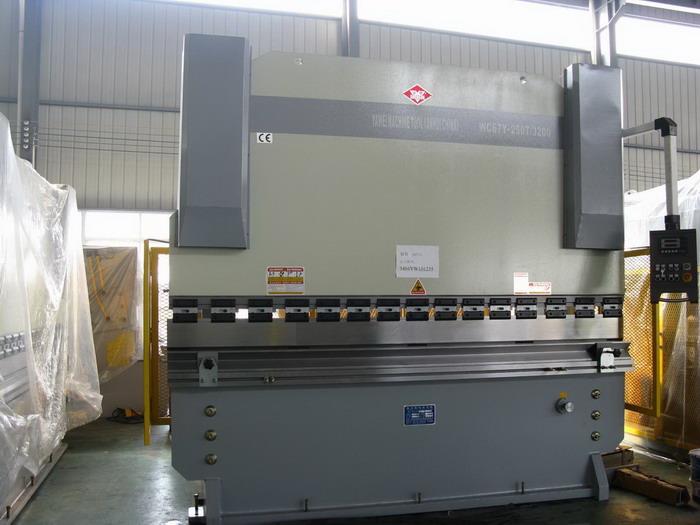

Main images of China Yawei 3m &250Ton hydraulic power sheet metal bender

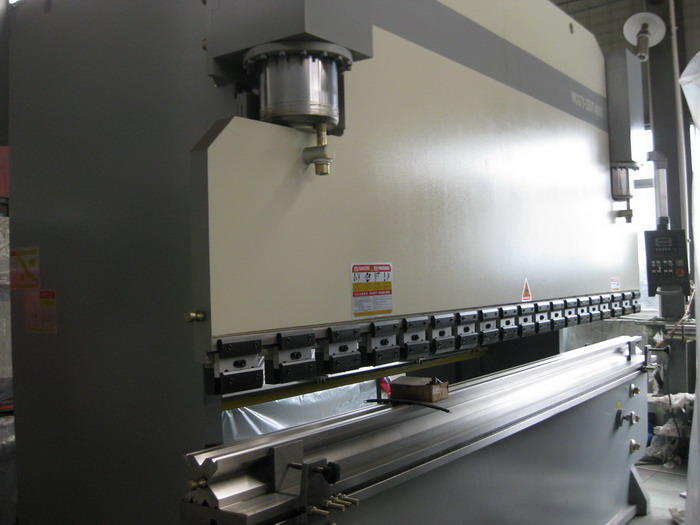

250 4000.jpg

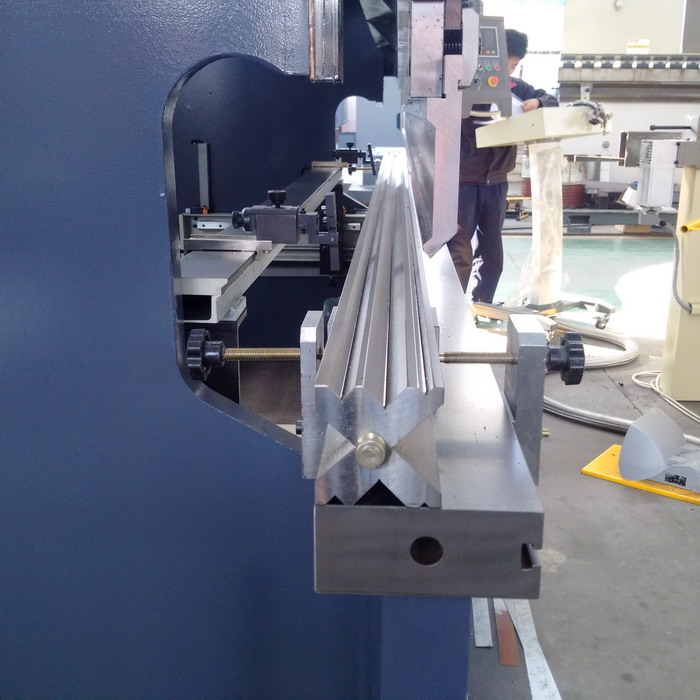

China Yawei 3m NC press brake Multi-V liwer dies

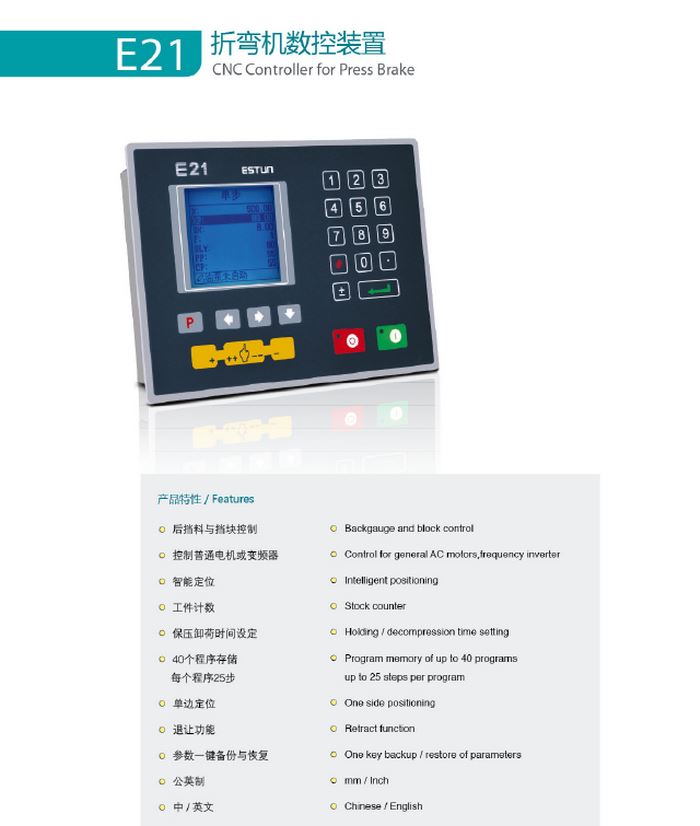

ESTUN E21 NC metal Pressbrakes controller made in china


Motorised NC ball screw&linear guide back gauge for sheet metal bending machines Yawei China made


ball screw and linear guide back gauge.jpg

Taiwan Shihlin frequency inverter for China Yawei WC67K NC Pressbrakes factory forsale



NC Pressbrake straight punch and Multi-V dies made in China


USA Sunny Hydraulic Pump for Anhuiyawei NC trosion bar metal press brake bending machines

USA SUNNY PUMP.jpg



Anhui Yawei Machine Tool is one of the best professional WC67K China manufacture hydraulic Torsion bar press brake machines and metal sheet guillotine shearing machines, sheet metal working machinery suppliers, factory website: www.ahycncs.net

Any special requirements for China Anhui Yawei 3m &250Ton Hydraulic sheet metal guillotine cutting machines and metal bending brake machines from China factory, send email to export@ahycnc.com now.
