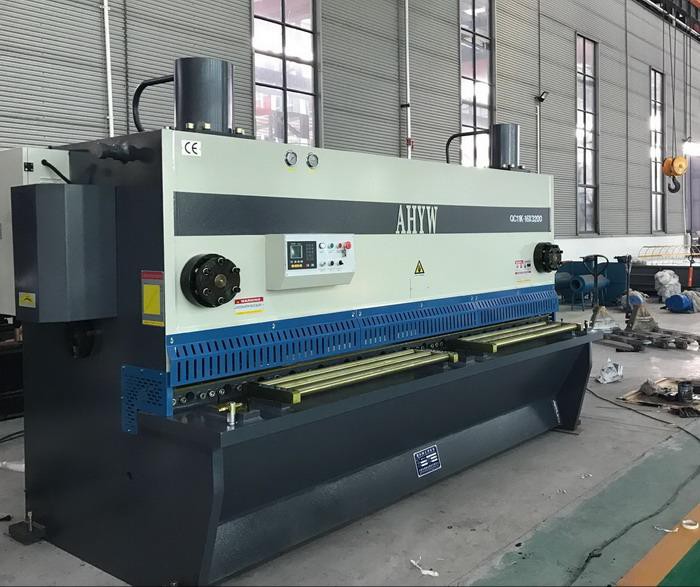

AHYW 16mm Mild Steel Plate Guillotine Shears

AHYW 16mm Mild Steel Plate Guillotine Shears Yawei manufactures made in China AHYW 16mm plate variable rake hydraulic shears suppliers China This AHYW QC11K Hydraulic Guillotine Shear-16*3200 is one vertical metal shears design, 2 hydraulic cylinders mounted on top beam with Rexroth...

AHYW 16mm Mild Steel Plate Guillotine Shears Yawei manufactures made in China

AHYW 16mm plate variable rake hydraulic shears suppliers China


This AHYW QC11K Hydraulic Guillotine Shear-16*3200 is one vertical metal shears design, 2 hydraulic cylinders mounted on top beam with Rexroth valves&USA SUNNY Pump work together to push top beam get cutting action, while return by accumulator after sheet cutting.

Standard AHYW Variable metal cutting guillotine features variable cutting angle according to different metal sheet cutting thickness, cutting angle and cutting clearance can adjusted on E21 NC controller.

AHYW Hydraulic VR Guillotine shears using ball screw and linear guide back aguge with motorized power, ESTUN Made E21 NC controller can make go to position functions, shears operator just need to enter the target position of back gauge and cutting times, the guillotine shears back gauges will run automatically to the trarget position, then metal guillotine operator depress pedal down and get the cutting job done.

AHYW QC11K NC Hydraulic Guillotine Shear is one simple and high performance metal cutting shears, can increase your metal fabricating shop's producttivity and cutting material edges, motorized cutting gap will help operator using reasonable cutting gap to get better cutting results.

Cutting capacity AHYW QC11K Hydraulic Guillotine Shear-16*3200

16mm carbon steel plate cutting

8mm stainless steel palte cutting guillotine

3m sheet metal cutting length

Cutting angle: 0.5-2 degree

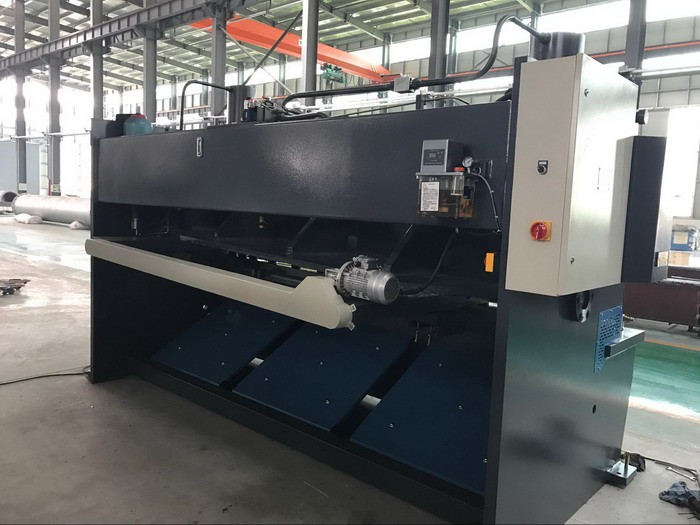

Motorised ball screw and linear guide NC back gauge for AHYW Sheet Metal Hydraulic Guillotine Shears

CNC Central lubrication system for mechanical moving points

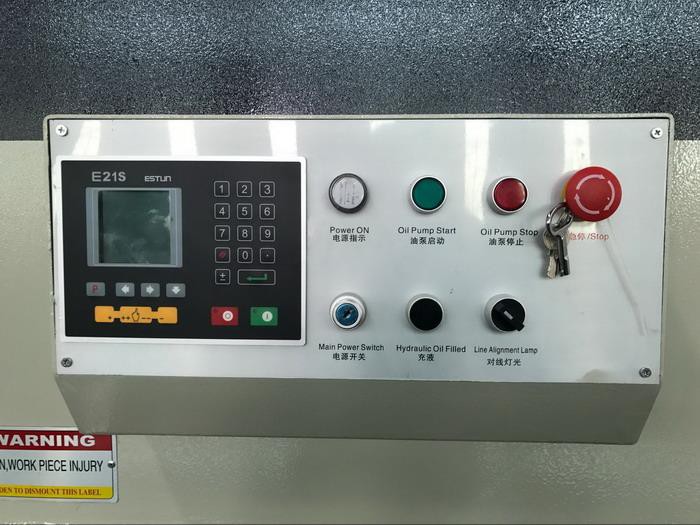

ESTUN China made E21 NC controller, go-to-position function

Cutting stroke and cutting times program functions

40 programs storage space,each program has 25 steps

Power-off protection

Cutting pressure gauge and Return pressure gauge for AHYW Sheet VR Guillotine Shears

Rexroth hydraulic Valves for AHYW Metal Guillotine Shearing Machines

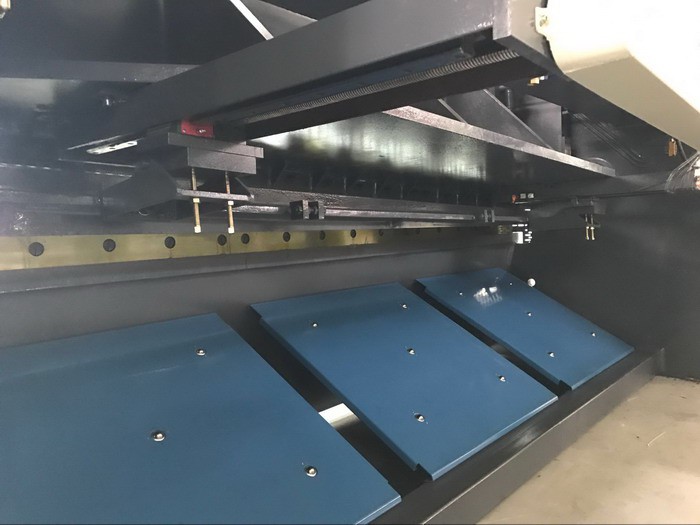

Front support table with heavy rollers  feed material easily to cutting area

• Hydraulic & Electrical overload protection

• Metal Cutting angle adjustable, manual adjust cutting angle according to different plate thickness

• Cutting times count with read-out

• Return by nitrogen gas

• Siemens&Schneider electric components

• Three standard front support

• Automatic, digital controlled Motorized back gauge with ball screw&linear guide

• Easily adjustable with blades gap setting for precise cutting and longer using life

• Roller bearings on working table to feed sheets to the cutting blades easily

• Hydraulic sheet hold down system, holds the sheet in place during cutting process

• Simple and easy blades gap adjusting device

• 4 cutting edges of hydraulic metal cutting blades suppliers made in china

• China top level compact hydraulic system

• Front finger protection guards

• Standard rear plate slipper

• Removable foot pedal with Emergency stop buttons


For more information for this China Yawei AHYW  3mtr&16mm Sheet Metal plate Variable Rake angle guillotine shearing machines, please send email to export@ahycnc.com


If you are also looking for Quality CNC Pressbrakes. Hybrid Pressbrakes, you can find the suitable on the following links: (AHYW Hybrid Pressbrake, the advanced technology for Synchro pressbrakes all over the world)

http://www.ahycncs.net/hydraulic-press-brakes/cnc-hydraulic-press-brakes/hybrid-press-brakes-4m-ahyw-yawei-china.html

Yawei Machine Tool is one of the best ahyw 16mm mild steel plate guillotine shears manufacturers and suppliers in China, welcome to buy ahyw 16mm mild steel plate guillotine shears made in China from our factory.
Hot Tags: ahyw 16mm mild steel plate guillotine shears, manufacturers China, suppliers China, made in China, factory, buy
