AHYW 6Mtr Sheet Metal Guillotine Shears

Yawei 6m Metal Sheet Guillotine Shears factory forsale made in China This 6mtr sheet metal guillotine shears is one variable rake cutting angle design, the metal guillotine operator can adjust the cutting angle according to different metal sheet thickness, which can ensure better cutting...

AHYW 6Mtr Sheet Metal Guillotine Shears Yawei China factory forsale

Yawei Made 6mtr sheet metal shearing machines manufactures China factory

Yawei 20ft Metal Sheet Variable Rake Angle cutting shears manufactures in China

6Mtr large sheet metal variable rake guillotine shears Yawei manufactures in China


Yawei machines China  6mtr sheet metal guillotine shears is one variable rake cutting angle design, the metal guillotine operator can adjust the cutting angle according to different metal sheet thickness, which can ensure better cutting performance, when cutting thin metal plate, operator need decrease cutting angle and cutting blades clearance, while need to bigger cutting angle and cutting blades clearance.

Stardard Yawei 6m large sheet metal cutting machines have ESTUN E21S NC Guillotine controller made in China,the cutting blades clearance is adjusted by motorized function, E21S NC controller have push buttons to display it and adjust it.

If you are looking for 6m, 8m, 10m large sheet metal hydraulic guillotine, Ahyawei has many options for your sheet metal fabricating requirements, we have 4mm to 40mm mild steel&stainless steel metal cutting machine, common side is 4mm,6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm thick stell plate cutting, max cutting length from 2.5m to 6m, 8m, 10m, 12m longer sheet metal cutting capacity. Ahyawei metal cutting machines included hydraulic fixed cutting angle shears and variable rake angle guillotine, you can choose which one is suit for your sheet metal cutting job.

China Yawei made 6mtr large sheet metal guillotine shears, 20ft sheet metal cutting shears capacity included :

4mm*6m sheet metal guillotine shears

6mm*6m sheet metal guillotine shears

8mm*6m sheet metal guillotine shears

10mm*6m sheet metal guillotine shears

12mm*6m sheet metal guillotine shears

16mm*6m sheet metal guillotine shears

20mm*6m sheet metal guillotine shears

25mm*6m sheet metal guillotine shears

30mm*6m sheet metal guillotine shears

 General Features of China Yawei made AHYW  QC11K 12m&20ft large Hydraulic carbon plate Guillotine shears-12mm*6mtr:

• ESTUN E21 NC sheet metal cutting machines Controller, can program and go to position function

• Taiwan Shihlin Frequency inverter

 Cutting angle adjustable, manual adjust cutting angle according to different plate thickness on E21 NC controller

 Motorized NC blades clearance adjustment

 Siemens main electrical components

 Five units standard front support

 Fast and powerful back gauge with 1000mm cutting stroke

 Back gauge lifting system to ensure you cut longer plate than back gauge stroke

 Heavy rollers on cutting table to hold heavy cutting plate

 Top blade 4 cutting edges, bottom blade 4 cutting edges

 China top level compact hydraulic system

 Removable foot pedal with Emergency stop button

Standard cutting specifications

Max metal cutting thickness12mm mild steel Max metal sheet cutting length6m
Gross weight26TonBack gauge stroke1000mm

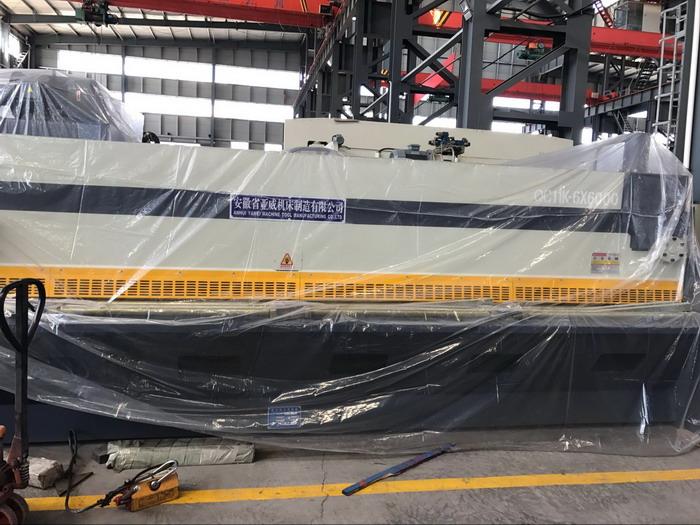

 Main images of Yawei made AHYW  6mtr large sheet metal mild steel cutting guillotine China factory

Ahyawei AHYW QC11K-13*6.1Mtr sheet metal guillotine forsale

QC11K 6mm mild steel plate cutting shears with 6mtr cutting length China Yawei manufactures

QC11K 25mm mild steel thick hydraulic powered sheet metal shears China Yawei manufactures factory forsale

AHYW Yawei QC11K 10mm mild steel&5mm stainless steel plate cutting machines factory manufactures china

20ft AHYW Yawei hydraulic powered variable rake angle sheet metal cutting guillotine shears

QC11K 20mm thick carbon plate metal cutting machines suppliers

China Yawei made AHYW 12mm carbon steel plate cutting guillotine shears factory forsale manufactures

Terms and Conditions:

 Delivery time: Within 40 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Installation Service and Training Service are all available if required

For any further details and questions for this China Yawei made AHYW 6mtr&20ft Large Metal plate Variable Rake angle guillotine shear machines, please feel free to send email to export@ahycnc.com




Yawei Machine Tool is one of the best ahyw 6mtr sheet metal guillotine shears manufacturers and suppliers in China, welcome to buy ahyw 6mtr sheet metal guillotine shears made in China from our factory.
