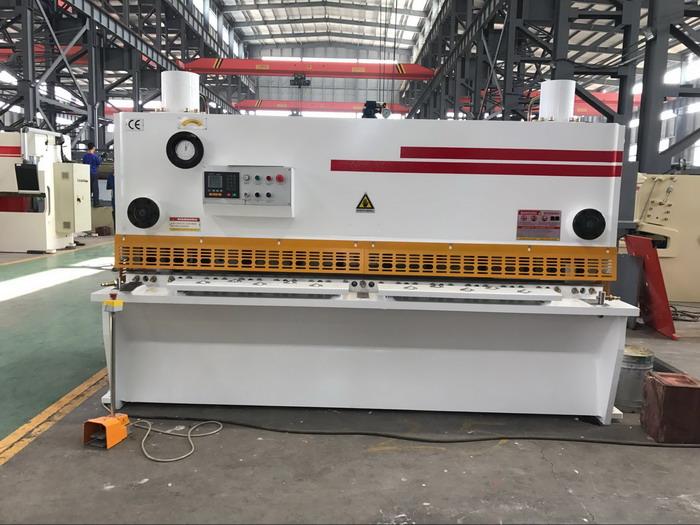

AHYW Yawei 6mm Sheet Guillotine Shears Machine

AHYW Yawei 6mm Sheet Guillotine Shears Machine manufactures Yawei China made 6mm carbon steel guillotine cutting machines AHYW Yawei 8ft sheet metal cutting shearing machines factory forsale QC11K NC Hydraulic Guillotine Shear-6*3200mm AHYW Yawei China manufactures █ Standard Equipment: • ESTUN...

AHYW Yawei 6mm Sheet Guillotine Shears Machine manufactures

Yawei China made 6mm carbon steel guillotine cutting machines

AHYW Yawei 8ft sheet metal cutting shearing machines factory forsale


QC11K NC Hydraulic Guillotine Shear-6*3200mm AHYW Yawei China manufactures

█ Standard Equipment:

• ESTUN E21 NC metal sheet guillotine shears Controller, can program and go to position function

• Taiwan Shihlin Frequency inverter

• Hydraulic & Electrical overload protection

• Metal Cutting angle adjustable, manual adjust cutting angle according to different plate thickness

• Cutting stroke adjustable, when cutting short parts, stroke reduced, speed increased

• Cutting times count with read-out

• Return by nitrogen gas

• Siemens electric components

• Three standard front support

• Automatic, digital controlled Motorized back gauge with ball screw&linear guide

• Easily adjustable with blades gap setting for precise cutting and longer using life

• Roller bearings on working table to feed sheets to the cutting blades easily

• Hydraulic sheet hold down system, holds the sheet in place during cutting process

• Simple and easy blades gap adjusting device

• 4 cutting edges of hydraulic metal cutting blades suppliers made in china

• China top level compact hydraulic system

• Front finger protection guards

• Standard rear plate slipper

• Removable foot pedal with Emergency stop buttons

█ Technical Specifications:

QC11K NC Hydraulic Guillotine Shear

6*3200

Max.Cutting thickness

6mm Mild steel

Cutting Length

3200mm

Variable Cutting Angle

0.5-1.5degree

X Back gauge Stroke

600mm

Stroke Times

12

Throat depth

80mm

Main motor power

7.5kw

Gross Weight

6.0T

Dimensions(L*W*H)

3700*1700*1980mm



• Delivery time: Within 25days

• Payment term: T/T, 30% down payment in advance and balance before shipment



Details of AHYW Yawei 6mm sheet metal plate guillotine cutting machines QC11K Guillotine Shear

E21 NC Controller, go to position function



Main features of E21


Positioning control of back gauge

Cutting angle manual adjustment

Intelligent positioning control

Unilateral and bidirectional positioning which eliminates spindle clearance effectively

Retract functions

Automatic reference searching

One-key parameter backup and restore

Fast position indexing

40 programs storage space,each program has 25 steps

Power-off protection



Front side


Rear side


Manual adjustment for blades clearance


Hydraulic hold down device to hold material before cutting action


Front sheet support with measure gauge


Central Auto lubrication for mechanical moving points


Motorized NC back gauge with ball screw&linear guide






Top view of Guillotine and compact hydraulic system


Cabinet with Siemens main electrical components


Optional configuration

Optional throat depth

Front angle gauge

Side gauge and front support arms in optional lengths

Sheet conveyor and stacking system

Front gauge X1, X2 axis and back gauge X3, X4 axis

Optional backgauge stroke

Pneumatic thin sheet support system

Pneumatic support system (Lever type or Monobloc panel type)

Moveable controller panel, multi functional CNC control unit

CYBELEC DNC 61G

Hydraulic oil cooling and heating system

Optional solid table

Stainless steel blades

Ability to increase stroke amount per minute

Light safety system for finger protection

Double foot pedal

Laser cutting line

 Any special requirements for 6mm&12mm,3m&8ft Yawei China manufactures Hydraulic sheet metal guillotine cutting machines and metal bending brake machines from China factory, send email to export@ahycnc.com .
