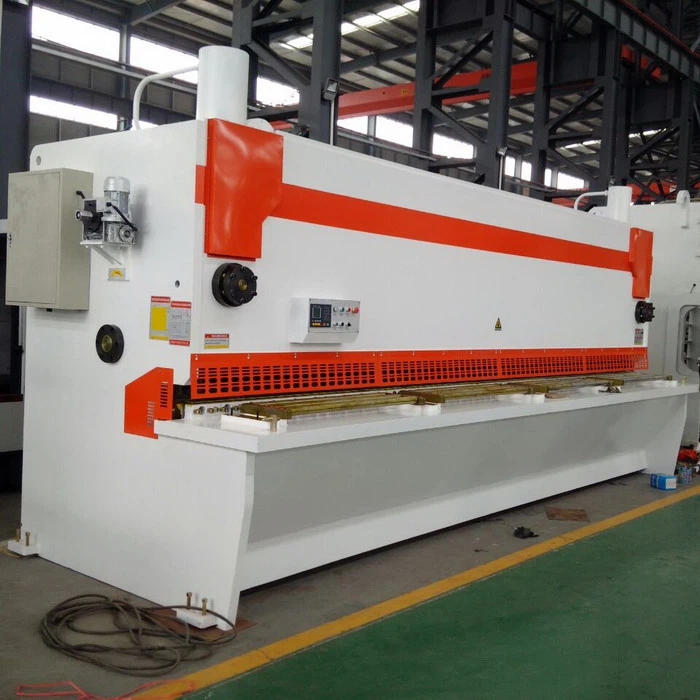

Yawei 6m Metal Sheet Guillotine Shears

Yawei 6m Metal Sheet Guillotine Shears factory forsale made in China This 6mtr sheet metal guillotine shears is one variable rake cutting angle design, the metal guillotine operator can adjust the cutting angle according to different metal sheet thickness, which can ensure better cutting...

Yawei 6m Metal Sheet Guillotine Shears factory forsale made in China


This 6mtr sheet metal guillotine shears is one variable rake cutting angle design, the metal guillotine operator can adjust the cutting angle according to different metal sheet thickness, which can ensure better cutting performance, when cutting thin metal plate, operator need decrease cutting angle and cutting blades clearance, while need to bigger cutting angle and cutting blades clearance.

Stardard Yawei 6m large sheet metal cutting machines have ESTUN E21S NC Guillotine controller made in China,the cutting blades clearance is adjusted by motorized function, E21S NC controller have push buttons to display it and adjust it.

If you are looking for 6m, 8m, 10m large sheet metal hydraulic guillotine, Ahyawei has many options for your sheet metal fabricating requirements, we have 4mm to 40mm mild steel&stainless steel metal cutting machine, common side is 4mm,6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm thick stell plate cutting, max cutting length from 2.5m to 6m, 8m, 10m, 12m longer sheet metal cutting capacity. Ahyawei metal cutting machines included hydraulic fixed cutting angle shears and variable rake angle guillotine, you can choose which one is suit for your sheet metal cutting job.

 General Features of China Ahyawei QC11K 12m&20ft large Hydraulic carbon plate Guillotine shears-12mm*6mtr:

• ESTUN E21 NC sheet metal cutting machines Controller, can program and go to position function

• Taiwan Shihlin Frequency inverter

 Cutting angle adjustable, manual adjust cutting angle according to different plate thickness on E21 NC controller

 Motorized NC blades clearance adjustment

 Siemens main electrical components

 Five units standard front support

 Fast and powerful back gauge with 1000mm cutting stroke

 Back gauge lifting system to ensure you cut longer plate than back gauge stroke

 Heavy rollers on cutting table to hold heavy cutting plate

 Top blade 4 cutting edges, bottom blade 4 cutting edges

 China top level compact hydraulic system

 Removable foot pedal with Emergency stop button

Standard cutting specifications

Max metal cutting thickness12mm mild steel Max metal sheet cutting length6m
Gross weight26TonBack gauge stroke1000mm

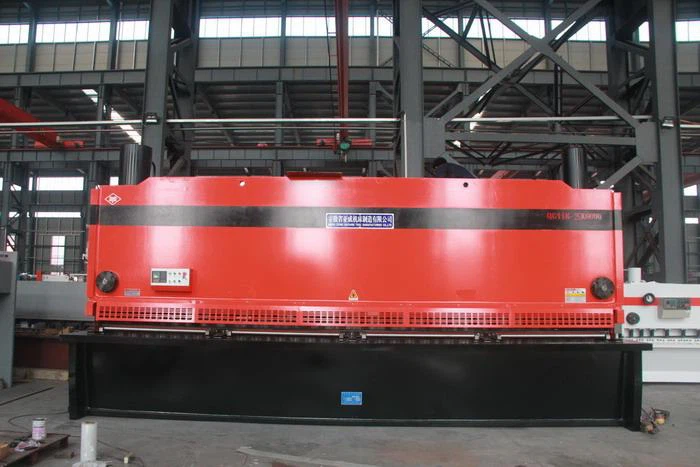

 Main images of Ahyawei 6mtr large sheet metal mild steel cutting guillotine China factory

QC11K-13*6.1Mtr sheet metal guillotine

QC11K 6mm mild steel plate cutting shears with 6mtr cutting length

QC11K 25mm mild steel thick hydraulic powered sheet metal shears

QC11K 10mm mild steel&5mm stainless steel plate cutting machines factory manufactures china

QC11K 20mm thick carbon plate metal cutting machines suppliers

China Ahyawei 12mm carbon steel plate cutting guillotine shears factory forsale manufactures

Terms and Conditions:

 Delivery time: Within 40 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Installation Service and Training Service are all available if required

For any further details and questions for this China Ahyawei 6mtr&20ft Large Metal plate Variable Rake angle guillotine shear machines, please feel free to send email to export@ahycnc.com


Yawei Machine Tool is one of the best yawei 6m metal sheet guillotine shears manufacturers and suppliers in China, welcome to buy yawei 6m metal sheet guillotine shears made in China from our factory.
