16mm Hydraulic Sheet Metal Shears Cutting Machines

16mm Hydraulic Sheet Metal Shears Cutting machines factory for sale in China China 16mm mild steel sheet metal guillotine cutting machines manufactures suppliers Anhui Yawei 8mm stainless steel metal shearing cutting machines made in china China 10ft&3m metal sheet hydraulic shears...

16mm Hydraulic Sheet Metal Shears Cutting machines factory for sale in China

China 16mm mild steel sheet metal guillotine cutting machines manufactures suppliers

Anhui Yawei 8mm stainless steel metal shearing cutting machines made in china

China 10ft&3m metal sheet hydraulic shears guillotine manufactures suppliers

China Yawei 16mm NC Hydraulic  sheet metal shearing machines manufactures

China QC12K 16MM&3M hydraulic metal shearing cutting machines

QC12K NC Hydraulic Shearing Machine-16mm*3200mm for sale in China

 General Features:

• Full welded structure machined on CNC Boring&Milling machine

• Construction feature have a fixed cutting angle

• Machine body and top beam are made of steel constructions, has been designed according minimum stretch and optimum resistance

• Heavy duty rigid body concept

• Swing up back gauge design

• Hydraulic Cylinders, processed as precise from solid full material and made honed

• Pistons, processed from forged steel, hardened,grinding is done

• Welded Monoblock, heavy steel frame using rigid structural steel produced with advanced modern fabricating methods.

 Standard Equipment of China Yawei 16mm NC Hydraulic  sheet metal shearing machines:

• A60 NC Controller, can program and go to position function

• Cutting times count with read-out

• Return by nitrogen gas

• Siemens electric components

• Three standard front support

• Automatic, digital controlled Motorized back gauge with ball shaft and guiding

• Easily adjustable with blades gap setting for precise cutting and longer using life

• Roller bearings on working table to feed sheets to the cutting blades easily

• Hydraulic sheet hold down system, holds the sheet in place during cutting process

• Simple and easy blades gap adjusting device

• Top blade 2 cutting edges, bottom blade 4 cutting edges

• China top level compact hydraulic system

• Rear safety fence and front finger protection guards

• Standard rear plate slipper

• Removable foot pedal with Emergency stop buttons

• Oil tank indicator

 Optional Equipment of China QC12K 16MM&3M hydraulic metal shearing cutting machines:

• Servo motor and drive controlled automatic back gauge

• DELEM DAC310, CYBELEC TOUCH 6 NC controller

• Ball screw and linear guide back gauge

• Pneumatic sheet support system

• CE Front&Rear light guard

• Front finger protection open 1000mm, protected by safety switch

• Special throat 350mm

• Swing Up Back gauge to make sure cut longer plate than back gauge stroke

 Technical Specifications:

Hydraulic Swing Beam Shears QC12K-16*3200

Max.Cutting thickness

16mm M.S

Cutting Length

3200mm

Cutting Angle

2.5 degree

X Back gauge Stroke

800mm

Stroke Times

8

Throat depth

100mm

Main motor power

18.5kw

Gross Weight

14T

Dimensions(L*W*H)

3800*2100*2200mm

• Delivery time: Within 25 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Shipping Term: 20 ft container

• Installation Service and Training Service are all available if required

• Customer’s profile testing before shipment

Main images of China Yawei 16mm NC Hydraulic  sheet metal shearing machines

NC Sheet Metal cutting NC controller made in China



 Standard features:

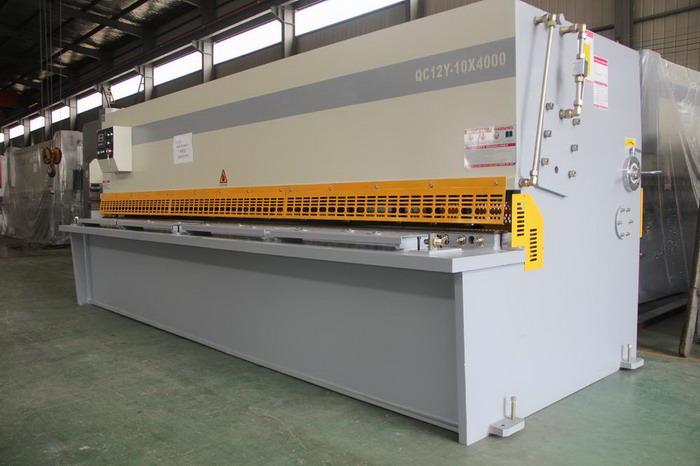

China Yawei 10mm&4m sheet metal hydraulic guillotine cutting machines for sale China factory

16mm&2.5m, 8ft Yawei sheet metal hydraulic guillotine cutting machines for sale China factory
