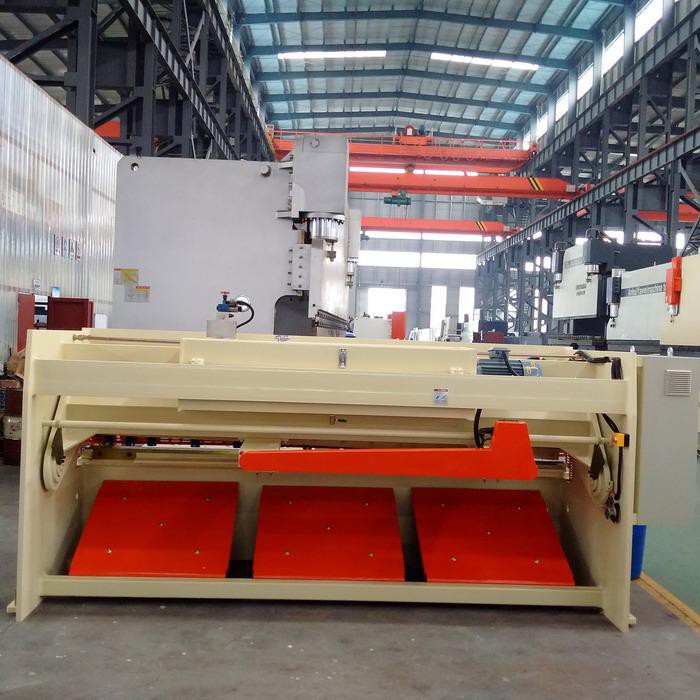

AHYW Swing Beam 6mm NC Hydraulic Metal Shears

AHYW Swing Beam 6mm NC Hydraulic Metal Shears Yawei manufactures forsale AHYW 6mm fixed cutting shearing machines AHYW 10 feet hydraulic sheet metal guillotines China Yawei suppliers AHYW designed 3mtr mild steel plate cutting shears Special Design AHYW swing beam hydraulic shears provide ▶...

AHYW Swing Beam 6mm NC Hydraulic Metal Shears Yawei manufactures forsale

AHYW 6mm fixed cutting shearing machines

AHYW 10 feet hydraulic sheet metal guillotines China Yawei suppliers

AHYW designed 3mtr mild steel plate cutting shears


Special Design AHYW swing beam hydraulic shears provide

▶ Body, as the manufacture of precise CNC machining center, up to 25 cutting stroke per minute .for provide maximum metal cutting quality and accuracy.

 When cutting thin sheets, up to 50% faster cutting

 precise cutting is provided for thick materials

 Designed Heavy –Duty rigit body concept, with slow speed working mode .

 Manufactured in sheet metal cutting sizes 3 meters to 12 meters

 Back gauge range (stroke ) 1000 mm .and capacities 4mm to 25mm .

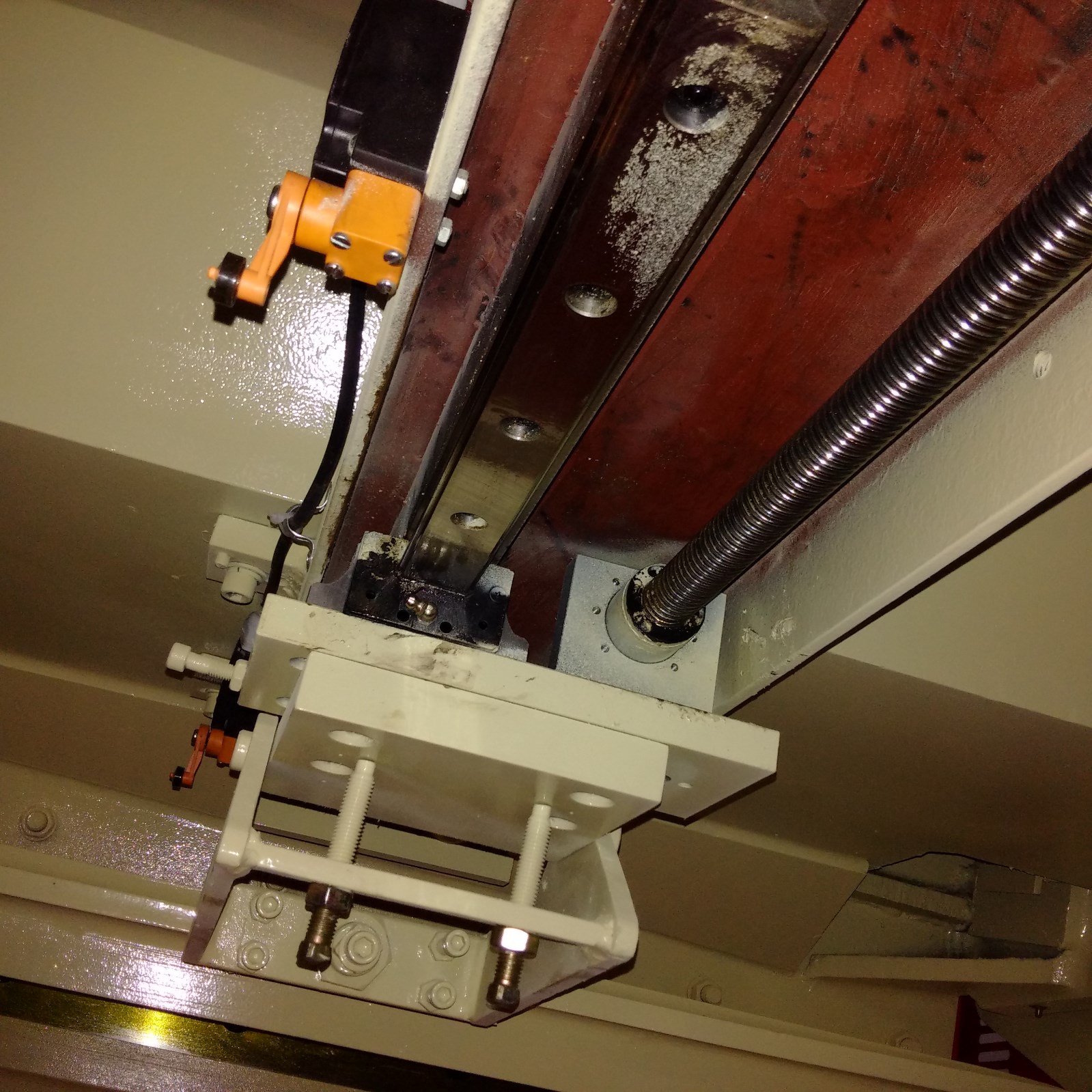

Motorized Back gauge accuracy performed with ball screw and linear guide

 Provides high cutting quality with low cutting ball shaft, without backlash guide

 Programmable sheet metal cutting shears back gauge has 0,1 mm

 Construction feature has a fixed angle of sheet cutting  positioning tolerance and retract features .

 Machine can produce with manual adjust blades gap

 Automatic swing –up feature of backgauge after adjustment by CNC controller according to customer’s request 1000mm to feed longer sheets easily

 Hydraulic shears  Machine body and upper beam’s made of steel

constructions, has been designed according minimum stretch and optimum resistance criteria

Standard Equipments of AHYW 6mm Swing beam hydraulic shears

ESTUN China made E21 NC Controller with go to cutting position function


AHYW QC12K NC plate shearing cutting machines E21S features:

Positioning control of back gauge

Cutting angle manual adjustment

Intelligent positioning control

Unilateral and bidirectional positioning which eliminates spindle clearance effectively

Retract functions

Automatic reference searching

One-key parameter backup and restore

Fast position indexing

40 programs storage space,each program has 25 steps

Power-off protection

Easily adjustable with scale blade gap setting system for precise cutting different thickness sheet plate


Roller bearings on the sheet cutting table to help feeding metal cutting sheets to the

machine easily


Welded monoblock, heavy steel frame using rigid structural steel produced with modern manufactured methods

Automatic, Digital controlled motorized back gauge 600 mm range (stroke) with ball screw and linear guide

Programmable back gauge, with retract and swing up features for longer sheets

Prevents scratching of the sheet with ball on the table

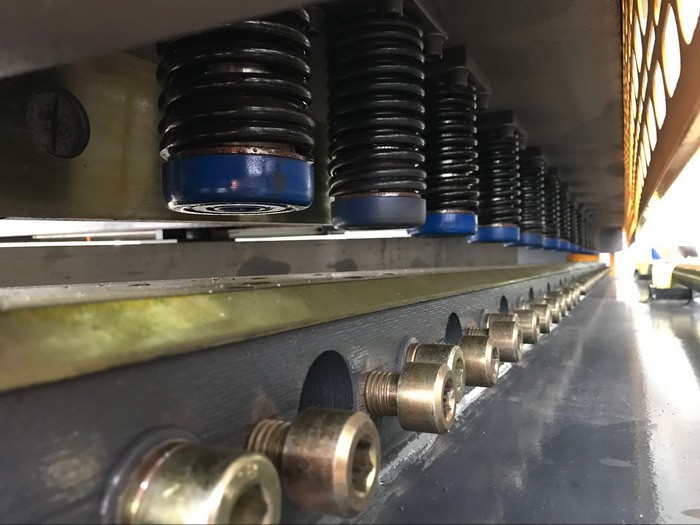

Hydraulic Sheet hold down system, holds the sheet in place during the cutting process.

hydraulic hold down.jpg

Cylinders, processed as precise from solid full material and made honed.

Pistons, processed from forged steel, hardened, grinding is done, and chrome-coated.

Simple and Easy operations Blade Gap adjustment system Adjustable bottom blade holder

Stroke adjustment on the control panel for increase stroke number for short cutting efficiency

High Quality alloy material bottom and upper blade for long life Bottom Blade 4 edges, Upper Blade 2 edges

Bosch Rexroth low maintenance hydraulic block

Schneider-Telemechanique electrical components, with Siemens or Schneider electrical cabinet

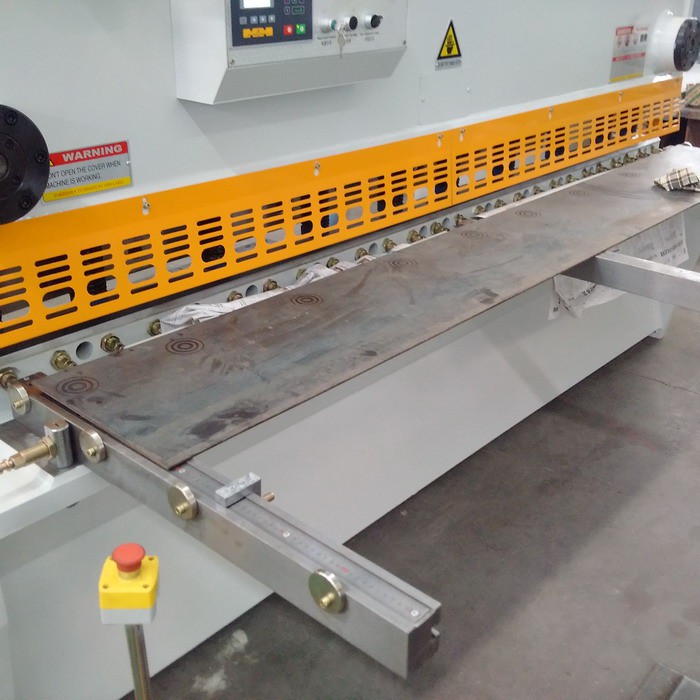

Front support arms 1000mm, with scale and flip over stops in T slot

front sheet support.jpg

Oil tank level indicator

Optional Equipments of AHYW 6mm swing beam hydraulic cutting shears

CNC auto controller  (bladegap,stroke) OPTIONS Automatically stroke, blade gap adjustment by CNC

Controller Cybelec Touch6 or Delem DAC310 (automatically calculations according material type and thickness, cutting lengths ). Pneumatic sheet support system for cutting thin metal sheet(0.5-4mm)

Adjustable Angular Gauge for cutting angle parts 0-180˚

Front Finger Protection Openable 1000 mm

Special Throat 500mm

AHYW Sheet metal cutting shears included AHYW QC12K NC swing beam shears , AHYW QC11K NC variable rake guillotine shears and CNC Variable rake guillotine shears.

AHYW Yawei machine china factory can make 4mm,6mm,8mm, 10mm, 12mm, 16mm, 20,25mm mild steel plate cutting shears with different NC&CNC controllers, metal cutting length covered from 2.5m to 12m large metal cutting capacity.

AHYW also have many metal brakes pressing machines for your sheet metal bending jobs, many options like you need!!

If you are looking for Hydraulic shears from China suppliers, Swing bean type or Vertical Variable rake Guillotine shears, AHYW can offer you quality machines with affordable prices!


AHYW only make top quality sheet metal plate  hydraulic shears cutting and pressbrakes bending machine in Yawei China factory!
