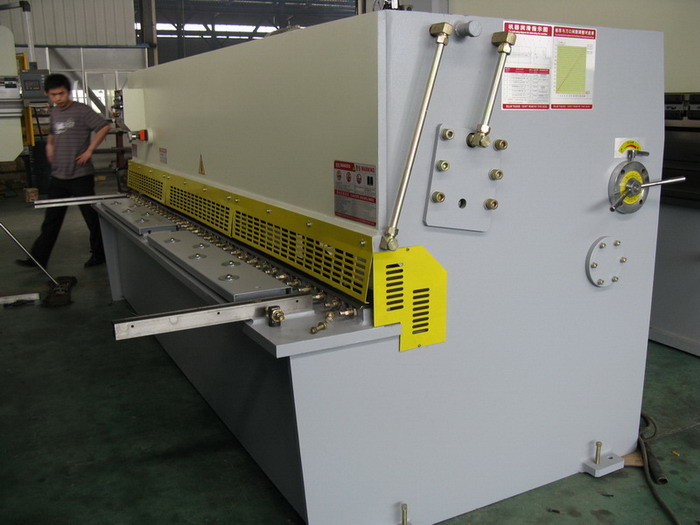

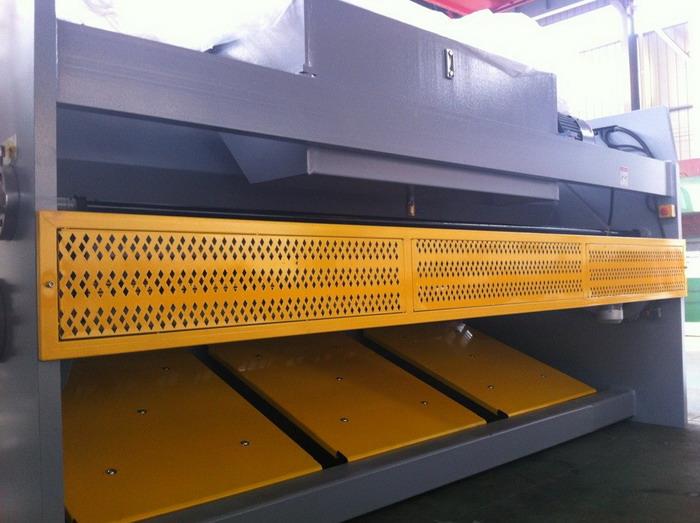

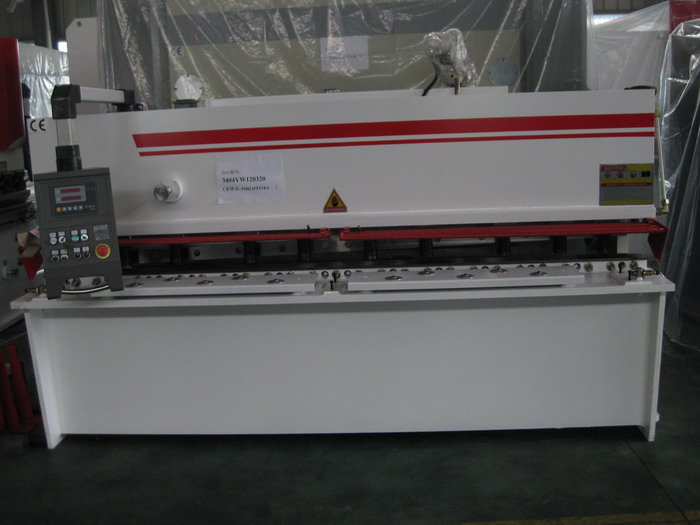

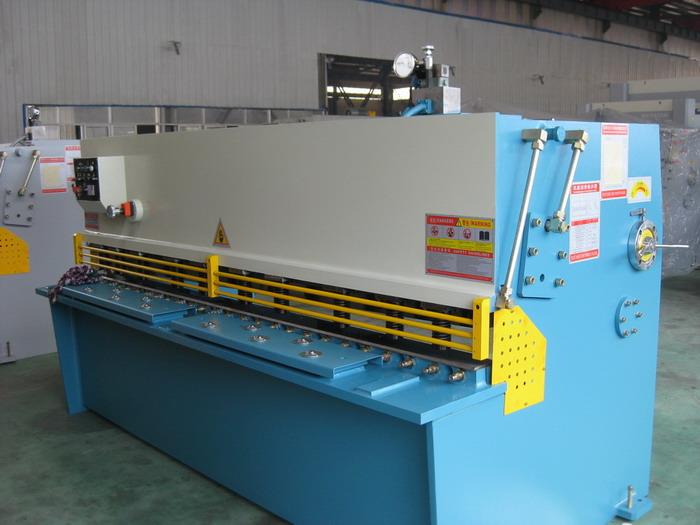

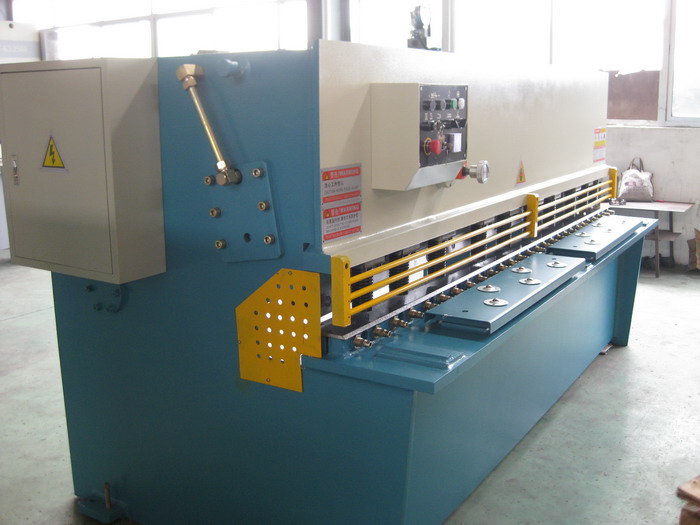

QC12Y Metal Cutting Machine-4×2500

QC12Y-4*2500 Metal Cutting Machine █ General Features: • Full welded structure machined on CNC Boring&Milling machine • Precise cutting machine with fixed cutting angle design • Machine body and top beam are made of steel constructions, has been designed according minimum stretch and optimum...

QC12Y-4*2500 Metal Cutting Machine

General Features:

• Full welded structure machined on CNC Boring&Milling machine

• Precise cutting machine with fixed cutting angle design

• Machine body and top beam are made of steel constructions, has been designed according minimum stretch and optimum resistance

• Heavy duty rigid body concept

• Swing up back gauge design

• Hydraulic Cylinders, processed as precise from solid full material and made honed

• Pistons, processed from forged steel, hardened,grinding is done

• Welded Monoblock, heavy steel frame using rigid structural steel produced with advanced modern fabricating methods.

Standard Equipment:

• A60 NC Controller, cutting depth can be programmed on NC controller

• 4mm Mild Steel Hydraulic Cutting Machines

• Siemens electric components

• Three standard front supports with measure ruler

• Easily adjustable with blades gap setting for precise cutting and longer using life

• Roller bearings on working table to feed sheets to the cutting blades easily

• Hydraulic sheet hold down system, holds the sheet in place during cutting process

• Simple and easy blades gap adjusting device

• Top blade 2 cutting edges, bottom blade 4 cutting edges

• Rear safety fence and front finger protection guards

Optional Equipment:

• Servo motor and drive controlled automatic back gauge

• Ball screw and linear guide back gauge

• Pneumatic sheet support system

• Back gauge lifting system to make sure cut longer plate than back gauge stroke

Technical Specifications:

QC12Y Metal Cutting Machine-4×2500

Max.Cutting thickness

4mm M.S

Cutting Length

2500mm

Cutting Angle

1.5 degree

X Back gauge Stroke

600mm

Stroke Times

12/m

Throat depth

80mm

Main motor power

5.5kw

Gross Weight

3.8T

Dimensions(L*W*H)

3000*1650*1650mm

• Delivery time: Within 20 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Shipping Term: 20 ft container
