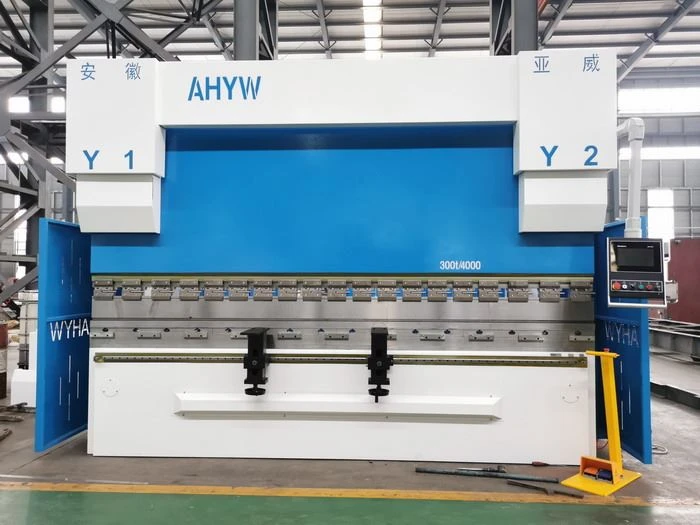

300T4M 5 Axis CNC Press Brake AHYW Yawei DELEM DA53Tmade in china factory
AHYW Yawei 300T4M sheet metal bending machinery manufacture china
AHYW Yawei PBH 320T4m DELEM DA58T 5 axis CNC Press brake made in china
Main features of AHYW Yawei CNC synchro press brakes
• Each time the machine automatically goes to the reference position.
• Automatically pressing force adjustment according to bending plate.
• Automatic position settings and retract functions,each step in bending program.
• Automatically stroke adjustment.
• Programmable and automatically maximum force limitations for protections tools damage.
• Bending programs can save memory and recall again, search according material, tools.
• Maximum hydraulic pressure protect by safety valve.
• Electronic overload protect system.
• Automatically calculations unfolded length.
• Selection of Manual, Semi-Automatic or Automatic working modes.
• CNC controlled back gauge with Servo motor and drive
All hydraulic components in a single unit improves their maintenance and management, giving a self-monitoring, redundant hydraulic system which provides working pressure information at all times by means of a manometer, and optics indication of the status of valves and sensors. Electromagnetic safety valve and electromagnetic control valves for raising and lowering the punch holder plate,the hydraulic unit is fitted with two proportional servo valves, one for dynamic pressure regulation according to the requirements of each bending operation, and another for regulating the speed of the vertical bending axis to ensure highest working precision at all times.
4 axis&6 axis 110T, 130T,160tTm CNC Synchro Press brakes is the most popular model for cnc metal bending machine for steel bending&fabricating applications, China AHYW Yawei have all kinds of 4m sheet bending machines suit your steel bending jobs
Italy made cnc synchro press brake GIVI linear scales gave high bending resolution (0.005mm) optical encoder is used, which controls the vertical position of two main cylinders bending axis (Y1&Y2 axis) for excellent reliability in each operation. Combined with control of lowering speed, this ensures punch holder plate vertical axis precision for bending operations and gives positioning error of less than (0.01mm).
Italy made DSP press brake operator finger protection Laser guarding system, customized stainless door rail bending&forming tools, 4m Single stainess door rails bending, double Door rails bending tools press brakes
More details required for ahyw yawei 7 axis cnc synchro press brake 4m sheet metal bending machines , send us email.
Quality AHYW Yawei China sheet metal cutting&bending machinery professional manufactures suppliers included:
2 axis AHYW yawei NC Press brakes for simple sheet metal bending applications
5-10 axis AHYW Yawei CNC hybrid press brake for fast&accurate bending applications
Simple fixed cutting angle sheet cutting swing beam shears QC12K Estun E21S metal cutting controller
CNC controlled variable metal cutting angle guillotine cutting shears DELEM DAC360T full touch screen controller, Italy made ESA S625 cnc shear controller are all available
Procedures of NC Press brake when you are building cabinet?
Produce a metal cabinet requires a 30-degree bending with hemming tools, an offset bending, a 60-degree bend, and four 90-degree bends. Using the traditional method, the bending operator would set up the 30-degree bend with the 30-degree hemming punch and die and perform the bend on all of the parts, handling each part one at a time. Then the operator would either remove the 30-degree hemming punch and die or reposition them so the top and bottom tool would not collide. Next, the operator would set up the offset punch and die and make the offset bends on all of the parts, again handling each part another time.
Once the offset bends were complete, press brake operator would either remove the offset punch and die or reposition them so the top and bottom tool would not collide. Then bending machine operator would set up the 60-degree punch and die and make this bend on all of the parts, handling the parts for the third time.
Finally, the operator would set up the 90 degree top punch&lower die and complete the four 90-degree bends, handling the parts for the fourth time. This method of manufacturing would require the operator to complete four separate setups and create or load four separate programs.
