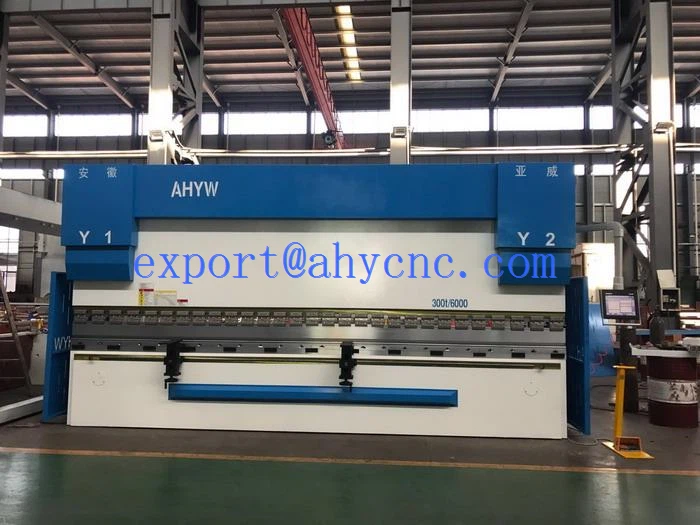

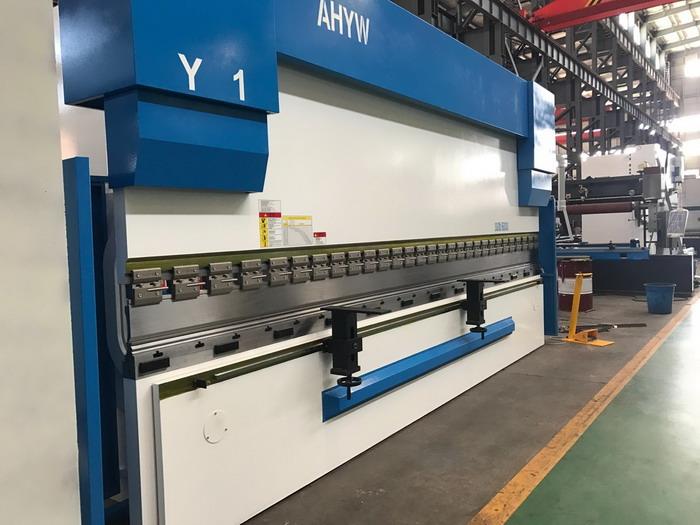

AHYW Yawei 5 axis 300T6M CNC Press Brake DELEM DA58T made in china factory
AHYW Yawei PBH PBA 6m large cnc press brakes for 300T metal bending machine DA58T full touch screen
DELEM Profle-T sheet metal bending offline software can increase your bending productivity:
Current CNC Press brake 2D&3D sheet bending software allows press brake operators to document and upload the required setup information to a file server and then download it when the job reoccurs.
Far too often, program and setup information sits in unorganized piles on the floor or is stored in cabinets. Much of the time it resides only in an operator's head. Even when stored in cabinets, the information is often incomplete and difficult to find.
Normally, more than 50 percent of parte bending on the factory floor are repeat sheet profiles. Therefore, documenting and storing the job information can mean substantial improvements in the bending department. The best people to document and store this information are press brake operators, and the best place to do it is at the machine.
Sheet Metal Bending Simulation. If you are making one new metal bending parts, importing a CAD file is usually the first step in the bending process. Once the CAD file is imported, information on material thickness, material type, and specific press brake used is entered into the electronic setup sheet. This information is later used to determine many press brake bending factors, like ram stroke, bend allowance, and springback.
On one cnc press brake software or bending programming page, The first step in creating the bending program is determining the sheet profile's bending sequence. Using a 3-D CAD file of the part, a metal bending profile designer starts with the last bend and works backward to the first bend. For DELEM DA58T, DA66T 2D offline software, all press brake tools are selected from an tooling library module that contains all the necessary information.
When all parts bending sequence is determined and appropriate tooling is selected, parts bending angle, sheet bending direction, back gauge positiong value. The tooling system(top punch, lower die, and die holder) is positioned along the bed of the press brake.
Once all the profiles sheet bending sequence is determined, the bending data is input, and the tooling is installed, next step you can keep making the bending simulation.
Metal bending simulation verifies that the program choice, tooling seclected, and tooling setting up are correct before the operator gets the job. By taking the guesswork out of the setup and program, downtime on the brake declines.In the software metal bending simulation process, animation is used to show the motion of the press brake and backgauge as well as the part being formed. The simulation reveals mistakes in the program, bending tooling system selections, back gauge positiong, etc., allowing the parts designer to make the needed corrections before the bending jobs reaches the press brake operator.
Sheet Simulation Software and Bending Robots. Many industry company are not satisfied with automating just setup and programs. They will not be content until press brakes can run by themselves 24 hours a day, seven days a week if possible.Then many simulation software has also been adapted to bending robots. The simulation includes all of the functions just discussed but, in addition, adds the robot. This means that for the first time since bending robots were introduced a decade ago, they are now practical for short-run jobs.
More options for AHYW Yawei cnc synchro press brake for high precision sheet metal bending applications:
AHYW Yawei 400T4M 6 axis cnc press brakes DA66T and CNC hydraulci anti deflection table
AHYW Yawei 500T4M 4 axis cnc press brakes DA58T and CNC hydraulic anti deflection table, Italy DSP Laser guarding
AHYW Yawei PBA 10M,11M, 12M 5 axis cnc press brake, DELEM DA58T, CNC controlled hydraulic anti-deflection table or CNC motorized crowning table
