AHYW Yawei 4M 5 Axis CNC Synchro Press Brake 200T DA53T made inc hian factory
AHYW Yawei PBH 5 Axis 200T4M CNC Press Brake DELEM DA53T Graphical bending machine controller
China YAWEI PBH 5 axis CNC Press brake 220T4M DELEM DA53T Graphical controller
AHYW Yawei DELEM DA53T 5axis 200T4M cnc press brake included cnc controlled Y1&Y2 mian cylinders, CNC controlled X,R,2 axis auto bending back gauges, CNC controlled motorized crowning table, special design top bending punch and Single V are all available according to your bending drawings, Hardox&Weldox High Tensile Strength material press brake bending tools can be designed with Big Radius Tools.
█ Standard Configurations of AHYW Yawei 5 axis cnc sycnhro press brake 200T4M China manufacture:
• Control of Y1,Y2 ,X,R and CNC motorized Crowning Table
• DELEM DA53T touch screen controller with offline metal bending software
• Original Germany Hoerbiger proportional valves
• Germany Hoerbiger Pump
• High Quality accurate Italy Givi linear scale
• Japan Panasonic AC servo motor and drive for 2 axis XR auto bending back gauge
• Standard top punch and 2V quick change Die
• Amada/Promecam type quick release clamping
• Movable sliding front support arm with linear guide, support height adjustable
AHYW Yawei 4m cnc press brake Trumpf type wide metal bending fingers for better flange bending
Heavy duty front sheet support moving on linear gudie with better metal bending support

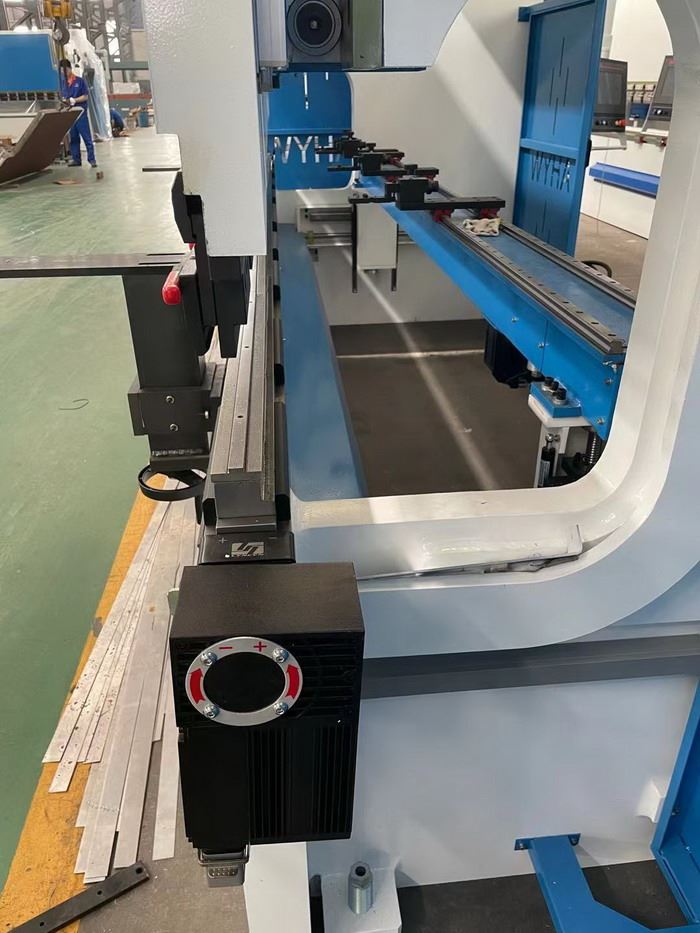

CNC Wila motorized wave mechanical crowning table ensure precise sheet bending profiles in full length
Choose the correct lower die angles and V opening when you are bending Aluminium sheet profiles.
Air bending mode in cnc press brakes, 30 degree acute top punch and dies will be the perfect bending tooling system, it will giving you the widest possible range of bending options.
The inside radius forms as a percentage of the die width, or die opening. So you’ll need to have tools capable of producing the smallest and largest inside bend radius required. Depending on the specifications of the parts you are building and the required inside radius.
Profiles bening angles exceed 90 degrees will produce an inside radius in the part smaller than the nose radius of the punch. Which it's very difficult to predict, and a few test bending for your application may be the best choice for you.
While you have a urethane block, you can use it as a solid that pushes back against the bend’s leading radius, forcing the material against the radius of the tool and allowing it to take on the radius of the tool.
Without the urethane backup, the inside radius will continue to collapse until the required bend angle is reached; this is true when forming in relieved dies. Small-radius bends also collapse until reaching a zero radius upon reaching a hem. Air bending will turn your sheet profiels sharp with 30 degree aucte top punch.
AHYW Yawei 250T4100 5 Axis china CNC Press brake, DELEM DA53T, CNC Motorized crowning table
AHYW Yawei 400T4m 5 Axis CNC Press brake, DELEM DA58T 2D Graphical sheet meatl bending controller, CNC Hydraulic crowning table, Italy made press brake DSP Laser guarding system, USA Elevator panel bending machine 13ft stainless sheet bending working together with 13mm*13ft metal guillotine cutting machine China
Any more details required for AHYW Yawei china made 100T4M, 125T4M, 160T4M,200T4M, 300T4M, 400T4M, 500T4M 4 axis&6 axis cnc press brakes, email us for fast reply!
Australia made cnc press brake Lazer Safe guarding system offers IRIS bending guarding device, a combination guarding and image processing system developed for press brake applications. RapidBend Ultimate technology enables bending tools to close at high speed until the pinch point, regardless of the machine’s stopping performance. This reduces the speed change point to 0 in. to eliminate slow travel and help improve cycle times.
This speed change works with flat sheets and also box profile parts. When bending box shapes, the system compares the flange dimension in the CNC bending sheet program and optically verifies the actual flange height during fast closing. The system then automatically blanks the forward sensing zone without the need for stopping and requires only a single pedal press per cycle.
When a new sheet profile bending program is started, the CNC press brake controller can automatically initiate the system to perform a tool scan. The optical system scans the punch to detect the profile and size of the tool, then automatically aligns the protective zone relative to the tool tip. BendShield technology envelops the punch tip with a complete protective zone to provide optical protection below and around the tool tip.
