AHYW 8m Large Metal Plate Guillotine Shears 16mm

AHYW 8m Large Metal Plate Guillotine Shears 16mm AHYW 16mm carbon steel plate cutting machines 8m AHYW 8m sheet metal plate metal shears Yawei made in China AHYW 8mm stainless 8m metal cutting guillotines Yawei manufactures China AHYW Yawei 16mm mild steel plate cutting shears China factory AHYW...

AHYW 8m Large Metal Plate Guillotine Shears 16mm

AHYW 16mm carbon steel plate cutting machines 8m

AHYW 8m sheet metal plate metal shears Yawei made in China

AHYW 8mm stainless 8m metal cutting guillotines Yawei manufactures China

AHYW Yawei 16mm mild steel plate cutting shears China factory

AHYW QC11K NC 8m metal guillotine China yawei amde factory

AHYW China Yawei Variable rake sheet guillotine shears Yawei factory


AHYW Sheet Metal shears including QC12K series Swing Beam Shears and QC11K Series Variable Rake Guillotine Shears

Whether a guillotine shear or one with a plate swing beam design, plate shears really don’t seem to be much more complicated in function than paper cutters. Both kinds of machines are fairly rudimentary if you picture how these machines operate internally: it’s all about the pressure at the point where the two slightly offset parallel blades come together. That’s where everything happens. They don’t call these machines “shears” for nothing — don’t forget, these machines shear through plate metal, and metal shears cutting material fast and high precision.


What do you think which plate shears will be fit for your metal cutting jobs?

The first and most productive hydraulic plate shear in our line-up is the AHYW QC11K variable rake CNC Metal shear. Basically, the main feature of this plate shear allows for correct blade angle or blade gap each and every time the shear is cycled. When you load the material, and then specify the type and thickness of said material in the control, the CNC controller will automatically set the blade gap for the exact material type and classification and thickness. These plate shears have thickness capacities between 6mm to 25mm and shearing lengths from 10 feet to 60 feet. All manner of sheet feeding accessories are available upon request.

CNC metal Variable Guillotine shears AHYW can use DELEM DAC360, ESA S625 and Cybelec Touch 6 or Touch 8 , but for thin cutting size 4mm, 6mm with 8ft cutting length, mauybe AHYW Swing beam shears is enough, as smaller shear for cutting thin plate no need variable cutting angle, smaller variable cutting angle won't provide big help espacially when you are cutting short plate.

The next and probably most popular shears are the swing beam AHYW QC12K series NC series plate shearing machines. Designed to be the world’s most heavily-built swing beam plate shears, these machines are, in fact, just that.  Efficiency is maintained with the single point blade gap adjustment easily accessible to the operator. Hydraulic hold downs are liberally place all across the cutting length, but are closer together at both ends.


 General Features of AHYW  QC11K Hydraulic Sheet Metal Guillotine Shearing Machine-16mm*8mtr factory Yawei made in China

 Full welded structure machined on CNC Boring&Milling machine

 Construction feature have a variable rake cutting angle

 Machine body and top beam are made of steel constructions, has been designed according minimum stretch and optimum resistance

 Heavy duty 8m sheet metal cutting capacity design

 Swing up back gauge design

2 Units down stroke Hydraulic Cylinders, processed as precise from solid full material and made honed

 Pistons, processed from forged steel, hardened,grinding is done

 Welded Monoblock, heavy steel frame using rigid structural steel produced with advanced modern fabricating methods.

• Large 8m Hydraulic Sheet Metal  Cutting Machines Made in China

 Cutting stroke adjustable

█ Standard Equipment of China Yawei made AHYW 8mtr Large Metal Plate Guillotine Shears Cutting Machines:

• ESTUN E21 NC Controller, can program and go to position function

• Taiwan Shihlin Frequency inverter

 Cutting angle adjustable, manual adjust cutting angle according to different plate thickness

 Motorized NC blades clearance adjustment

 Siemens main electrical components

 Five units standard front support

 Fast and powerful back gauge with 1000mm cutting stroke

 Back gauge lifting system to ensure you cut longer plate than back gauge stroke

 Heavy rollers on cutting table to hold heavy cutting plate

 Top blade 4 cutting edges, bottom blade 4 cutting edges

 China top level compact hydraulic system

 Removable foot pedal with Emergency stop button


Main images of China AHYW 8m Large Variable Rake angle sheet metal cutting machines

Heavy duty front  feeding rollers for AHYW 16mm*8m large sheet metal cutting machines

China ESTUN E21S NC Metal Guillotine Shears controller made in China, metal cutting go-to-position

Mortorized cutting blades clearance adjustment for China Yawei AHYW 8mtr metal guillotine shears

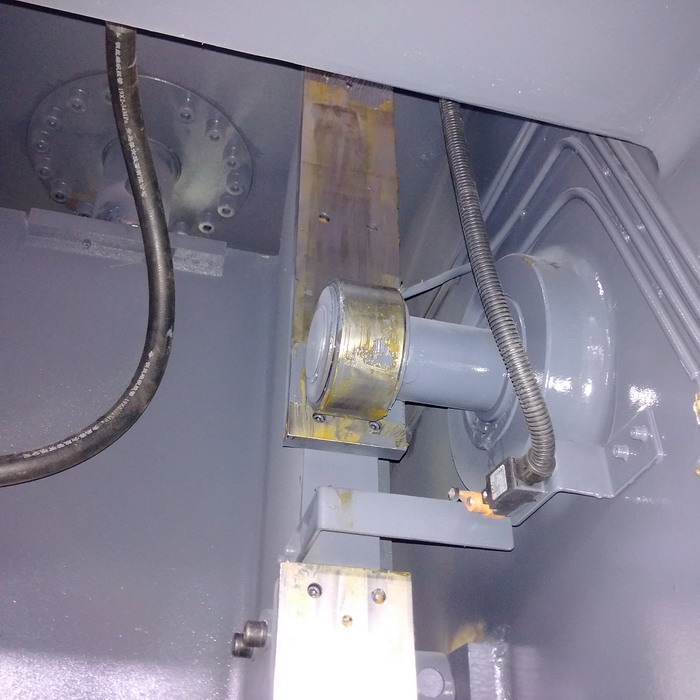

Guide for  ahyw qc11k guillotine shears cutting machines top beam

Hydraulic hold down cylinder for QC11K NC 16*8m china yawei metal shearing machines factory

NC central lubracation device for Ahyawei 8mtr large metal sheet guillotine shearing machines manufacture suppliers

Motorized back gauge for Ahyawei 8m sheet metal guillotine cutting shears with ball screw&linear guide

 Applications of China Yawei AHYW 8m*16mm Large sheet metal guillotine shears

16mm Mild steel metal plate cutting

8mm stainless steel metal cutting

8m sheet metal cutting shears

Terms and Conditions:

 Delivery time: Within 40 days

• Payment term: T/T, 30% down payment in advance and balance before shipment

• Warranty: 18 months

• Loading port: Shanghai, China

• Certificate: ISO, special requirements for CE conformity

• After Sales Service: 7*24 hours, quick response

• Installation Service and Training Service are all available if required



For more information for this AHYW Yawei China made 16mm*8m Sheet metal Variable Rake angle guillotine cutting machines, please feel free to send email.

AHYW also have 800T8M Large CNC Pressbrake for 8m sheet metal bending, Servo hydraulic CNC controlled

http://www.ahycncs.net/hydraulic-press-brakes/cnc-hydraulic-press-brakes/ahyawei-ahyw-large-8m800t-cnc-brakes-press.html

Yawei Machine Tool is one of the best ahyw 8m large metal plate guillotine shears 16mm manufacturers and suppliers in China, welcome to buy ahyw 8m large metal plate guillotine shears 16mm made in China from our factory.
