This AHYW CNC Press Brake-100T4000mm coming with DELEM DA58T Touch screen controller with 2D offline software, it have fast bending speed and high bending accuracy, detailed specifications as follows:
AHYW CNC Press Brake Machine-4m/100T
Max bending pressure: 100Ton
Max sheet bending length:4000mm mild steel or stainless steel
Max bending thickness: depends on different V opening of lower die
Distance between side frames:3600mm
Throat: 400mm
Daylight;420mm
Main motor power :7.5kw
X back gauge stroke:600mm
R back gauge stroke:150mm
Y1&Y2 stroke:200mm
Approach speed;220mm/s
Bending speed:10-15mm/s
Return speed:130mm/s
Main configurations of 4m Yawei cnc press brake AHYW
DELEM DA58T CNC Pressbrake controller
German Bosch Rexroth valves and Japan Nachi Pump
Italy Givi linear scale
Yaskawa servo motor and drive
China top level main cylinders with NOK seals
China famous brand of main motor
Schneider main electrical components
Taiwan Hiwin or TBI ball screw&linear guide back gauge
EURO-Amada type quick released clamping
EURO-Amada type top punch and lower die
Front sheet support moving on linear guide, height adjustable

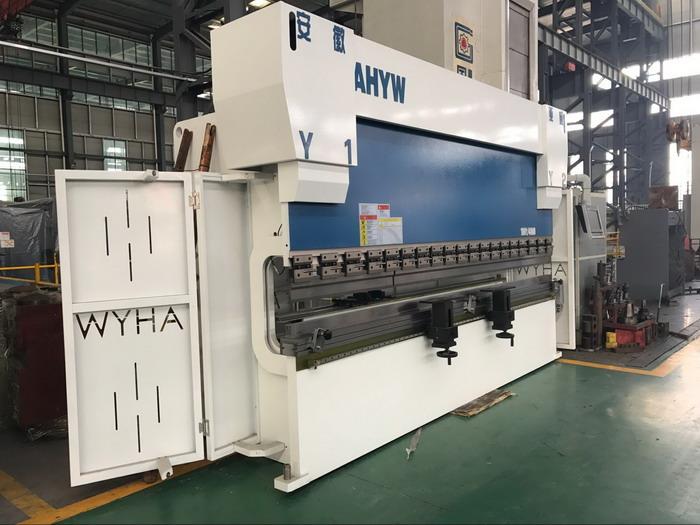

Main images of Yawei China AHYW CNC Press Brake-100T4000mm, 4 axis cnc brake press Yawei made in china

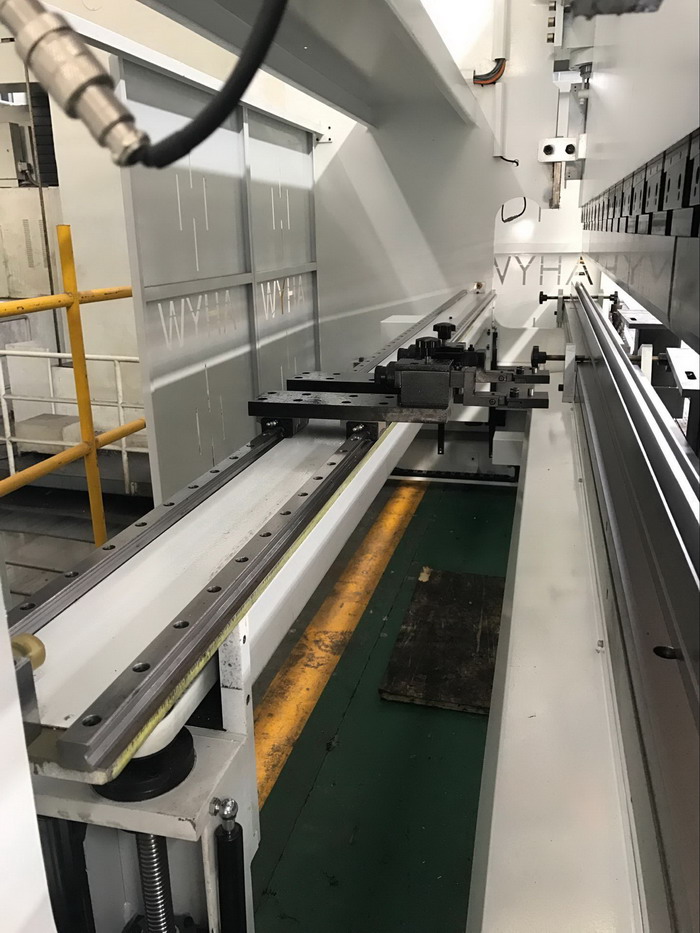

X&R 2 axis cnc controlled auto pressbrake back gauge AHYW Yawei cnc pressbrake manufactures China
DELEM DA58T Touch screen Graphical 2D cnc brake press controlelr made in Holland
Amada EURO quick released clamping on top ram

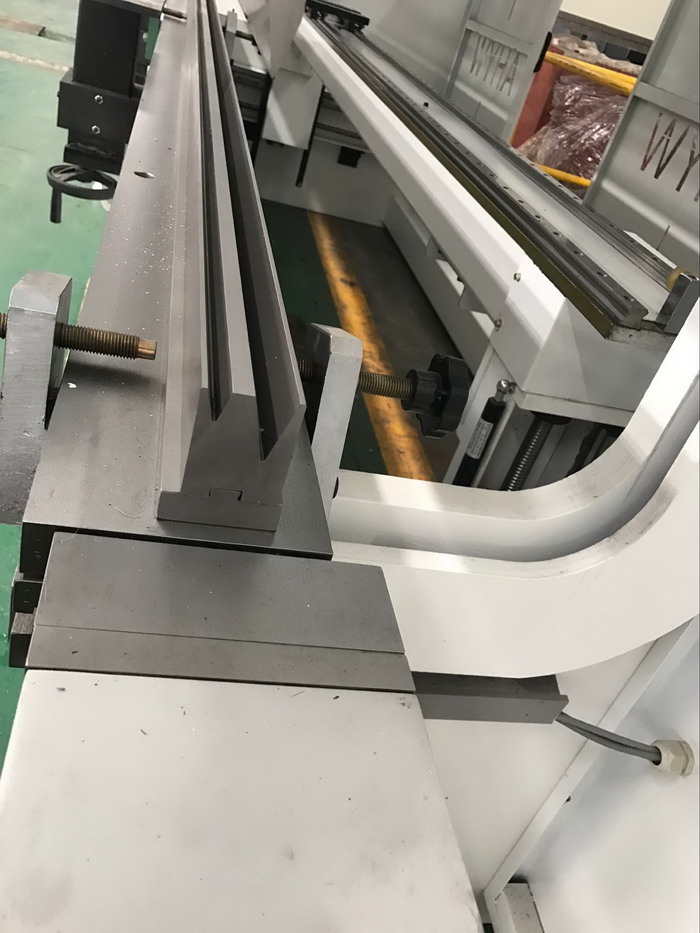

EURO cnc pressbrake top punch and 2V die
Wila type motorised mechanical crowing table for AHYW Yawei 4 axis cnc brakes press bending machines China
Italy Givi linear scale

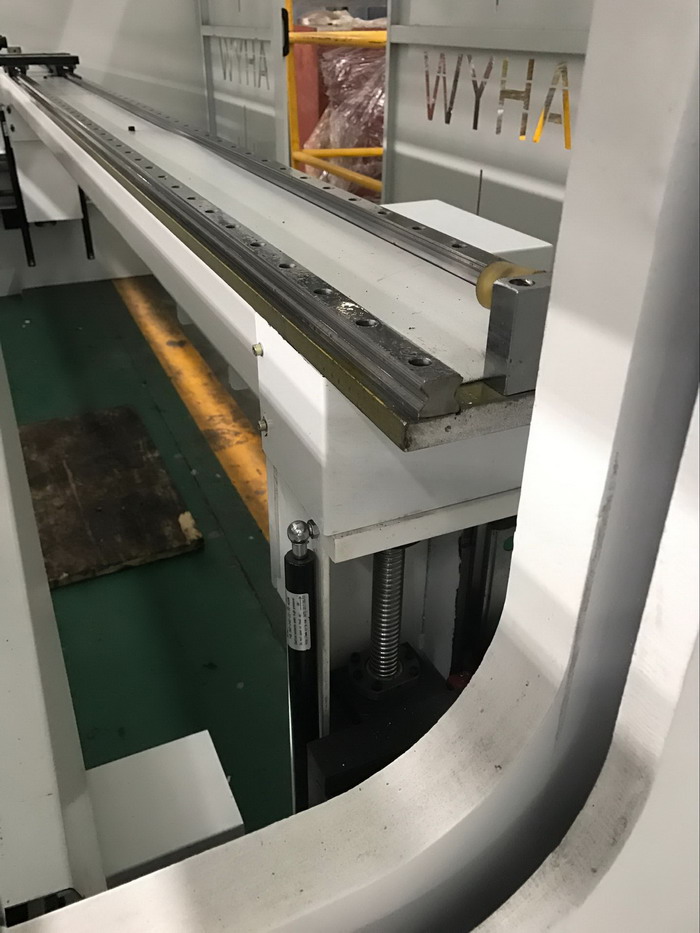

R axis moving on ball screw&linear guide, standard stroke with 150mm
Delivery time; within 25 days
If you are looking for 4m cnc brake press machine from China manufactures suppliers, please drop us email export@ahycnc.com, inform us your detailed sheet metal cutting and bending thickness&length, AHYW Yawei can make the customized pressbrake machines with detailed tools solutions ASAP.
Or if you are looking for one Hybrid press brake machines made in China, AHYW Yawei can offer you also,
please check the following link:
