China Yawei 160T13ft CNC Press brake 4 Axis metal bending machines manufactures
AHYW Yawei 13ft cnc sheet metal bending machines made in china factory
AHYW Yawei 160t cnc steel plate bending machine 13ft folding
AHYW China 13ft sheet metal bending brakes factory
Yawei 160T metal plate bending machine 13ft made in china
Everytime when starting AHYW Yawei CNC Synchro Brakes Press, all axis will be calibrated automatically before sheet metal bending action.
This is the most popular CNC brakes press models forsales in stainless door frame industry, standard Y1&Y2 share same oil source from oil tank, Y1&Y2 have independent linear scales to read the actual position and feedback to CNC delem synchro press brake controller. Metal Bending machine operators just need to enter the target bending angles for sheet metal bending parts, DELEM CNC metal bending controller will calculate the bending depth automatically and X bending stroke will be positoned automatically.
Standard features of AHYW 4 axis CNC sheet metal benidng machines for 13ft metal bending jobs
AHYW CNC metal benidng machine Linear scale:Germany HELDENHAIN , Italy Givi
AHYW China Amada-EURO type quick released CNC sheet bending brakes clamping
AHYW Yawei designed Front sheet supports on linear guide, can adjust the support height
AHYW Made Euro-Amada type Sash punch and 2 V quick change die
AHYW sheet metal bending Higher approach speed and bending speed
Robosoft Electro-hydraulic ram-tableparallellism and depth stop setting
Pendant control panel with DELEM DA52S compact CNC metal bending controller
Sheet Bending Back gauge on ballscrews and linear guide, stroke 600mm,programmable in 0.1mm
Programmable working pressure, ram stroke,ram opening and speed change-over point
Programmable automatic pressing bending beam return
CNC controlled Automatic hydraulic table crowning
Quick released Amada press brake manual System Top Tooling clamping
Table for Euro standard System Tooling
2 Sheet Supports
Foot pedal command for metal bending
CE Safety Specifications, all kinds of CE Norms
Yawei CNC Tandem Press Brake Applications:

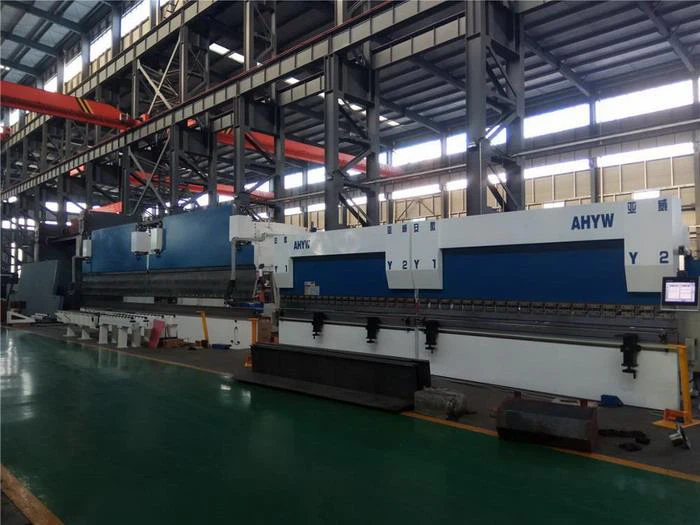

The synchro system is such that it easily allows tandem operation to obtain working lengths up to 24m. In this configuration, machines can work independently as two separate machines with different applications or in tandem mode as one machine with double capacity and double bending length.
Dual linear guides for sheet metal bending finger stops moving
CNC controlled metal bending machine with auto X&R back gauges AHYW Yawei made in China
EURO-AMADA-PROMECAM CNC metal bending quick released clamping on top pressing beam
Original Germany Rexroth proportional hydraulic valves technology with Japan Nachi Pump
Italy GIVI Linear Scale for monitoring Y1&Y2 left&right cylinders moving, reads and feedback all datas to cnc bending controller
EURO Amada 88 degree Sash top punch and 2V quick change metal bending dies Yawei factory made in China

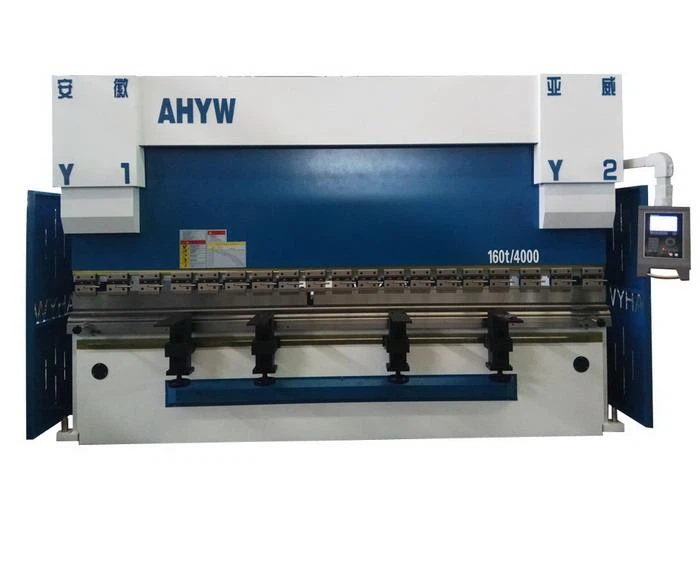

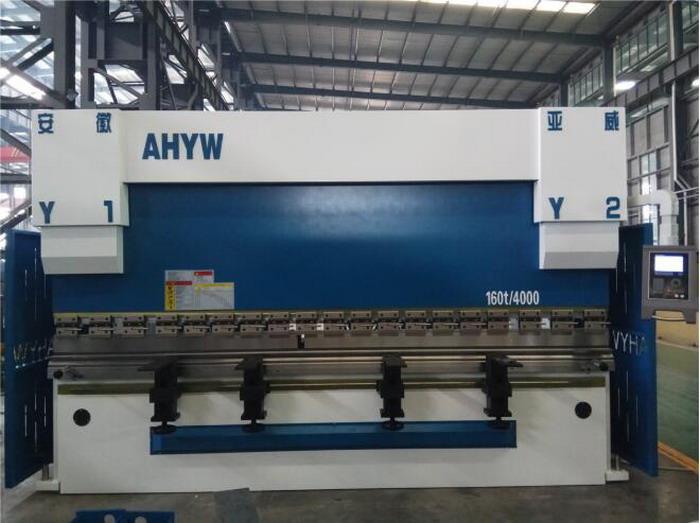

AHYW Yawei 4m CNC metal bending machine 4 axis-160T4M, X&R 2 axis CNC controlled auto bending back gauge, CNC Hydraulic bending crowning table,DELEM DA52S Bending controller

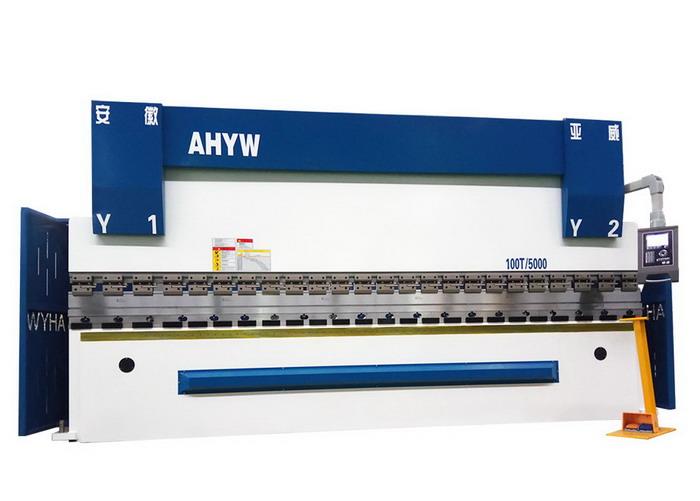

AHYW Yawei 5m CNC metal bending machine 4 axis-100T5M,X&R 2 axis CNC controlled auto bending back gauge, CNC Hydraulic bending crowning table,DELEM DA52S Bending controller
AHYW Yawei 6m CNC metal bending machine 4 axis-160T6M,X&R 2 axis CNC controlled auto bending back gauge, CNC Hydraulic bending crowning table,DELEM DA52S Bending controller

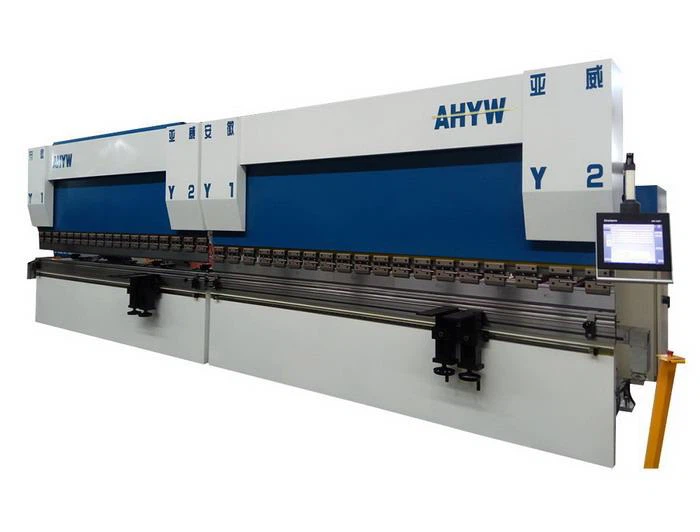

AHYW Yawei 8m CNC metal bending machine 6 axis-320T8M, China Yawei 8m CNC Tandem Press brake 6 axis, X,R ,Z1&Z2 4 axis CNC controlled auto bending back gauge, CNC motorized mechanical bending crowning table,DELEM DA58T full touch screen2D Graphical Bending controller

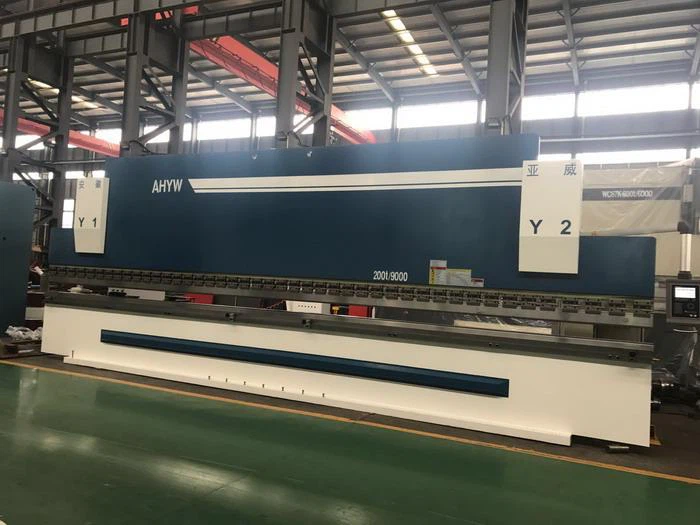

AHYW Yawei 9m CNC metal bending machine 4 axis-200T9M thin steel plate bending machine, X&R 2 axis CNC controlled auto bending back gauge, CNC Hydraulic bending crowning table,DELEM DA52S Bending controller, China Yawei 9Mtr CNC Press brakes 4 axis

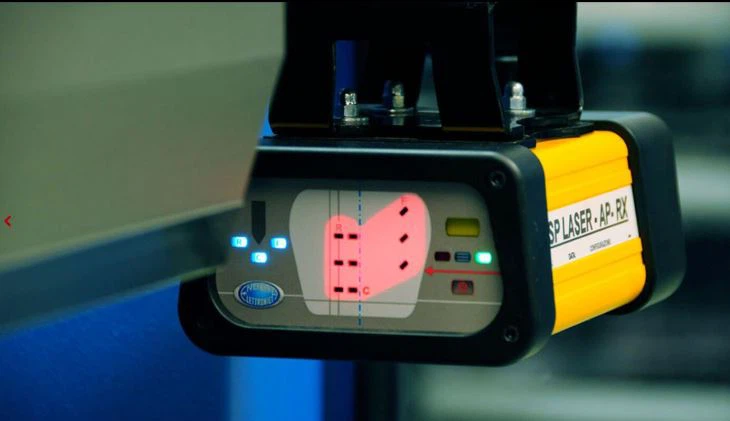

Italy DSP Laser guarding with MCS safety controller, UK and Italy CNC metal bending Market
More technical specifications for AHYW Yawei 4 axis,6 axis CNC metal bending machines, email us!
