AHYW Yawei PBH 3M Metal Press Brakes 130T made in China Factory

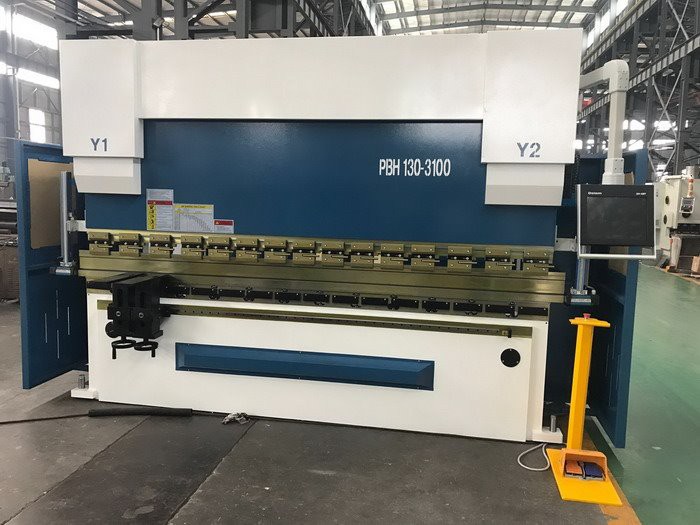

AHYW Yawei 130T3100 PBH 5 Axis cnc press brake manufacture in China factory
AHYW Yawei china made 3m sheet metal cutting and bending machine manufacture
China made DELEM DA58T PBH 5 Axis 3m&4m CNC synchro press brake supplier
AHYW Yawei 130T3M 4 Axis CNC Press Brake features Germany Rexroth or Hoerbiger synchro proportional valves technology, DELEM DA58T 2D full touch screen bending controller helps CNC Press brake operator using 2D Graphical technology make the benidng simulation before bending real material ,bending profiles also can be simulated in DELEM Profile-T offline software.
AHYW Yawei 3m&4m cnc synchro press brake standard coming with CNC controlled hydraulic crowning table, X,R 2 axis auto press brakes bending back gauges ensure high sheet bending productivity, DA58T pressbrake controller monitoring&controlling Y1&Y2 main cylinders moving action with determined bending tonnage to meet operator enter bending material datas, 2 axis bpressbrake ending fingers moving on linear guide Japan Yaskawa&Panasonic servo controlled and driven.
AHYW Yawei PBH&PBC 4 axes and 6 axis CNC synchro pressbrakes is one full Electro Hydraulic Servo motor&driven Synchro CNC press brakes, 5 axis AHYW PBH 130Ton3m can bending 5mm carbon steel and 3 mm stainless steel, with Max 3m&10ft sheet metal bending length. Press brake tooling system can be designed to meet your detailed sheet metal bending profiles, or using general 88 degree straight punch and Amada-European style 2V quick change lower die or Multi- V die to bending different thick metal material.
CNC controlled powerful auto bending back gauge with linear guide and ball screw moving
CNC controlled auto motorized crowning table
Amada-Euro intermediate clamps for upper tool
upper tool 1010/A/75°/0,8, sectioned, bending radius hardened and ground
Standard Amada narrow die holder for 60 mm dies
Euro Promecam die type 2009/85° (V 16, 22, 35, 50 mm) sectioned, geteilt, bending radii hardened and ground
CE CNC Press brake DSP Laser guarding or laser safety device Fiessler AKAS mounted on the upper beam
sheet support arms moving on linear guide for bending height adjustment
protection covers on the sides and back side
European made 5 axis cnc synchro press brakes according to CE bending machines safety pressing rules
user friendly programming in dialogue form
- graphic simulation of the sheet metal profiles bending sequence
- automatic calculation of the blank sheet size
- 2D graphic product and tool memory
- correction possibility
- manual, half and fully automatic work mode
- tonnage calculation/programming by CNC auto controlled
- internal database
- USB interfaces for backup and programm transportation
| Bending force | 130T |
| Bending length | 3100 mm |
| Axes | Y1, Y2, X,R and CNC motorized Crowning |
| Approach Speed for Y1&Y2 axis | 220 mm/s |
| Y1&Y2 Bending Stroke | 200 mm up to 600mm |
| Inside distance between side frames | 2600 mm |
| Bending frames Throat Depth | 400 mm, optional 600-800,1000mm |
| Daylight Opening | 460 mm |
| Power concept | Hyderaulic |
| Working speed Y-axis | 10-15mm/s |
| Return speed Y-axis | 130mm/s |
| Bending Back gauge travel X-axis | 600 mm |
| Back gauge speed X-axis | 250 |
| Back gauge speed R-axis | 140 mm/s |
| Back gauge travel R-axis | 200 mm |
| Table width | 60mm suitable for single V die and 60mm Euro Dies |
| Main Motor power | 7.5 kW |
AHYW Yawei is the best Sheet Metal Shearing Guillotines manufacture and CNC Synchro Press brakes supplier in China, metal cutting&bending machines covers from 1.2m to 15m, metal steel plate bending press brakes from entry Mini brakes 30T to 5000T huge powerful Press brakes for special project. Welcome any clients over the world inquiry sheet metal cutting, bending&forming profiles for your business.
