Ahyawei AHYW CNC Brakes Press 4 Axis factory forsale made in China
Ahyawei AHYW 4 axis metal plate bending machines suppliers manufactures
AHYW China Ahyawei 4 axis cnc press brakes 100T manufactures
AHYW China Ahyawei 4 axis 3m metal plate press brakes factory
AHYW China Ahyawei AHYW 3m sheet metal press brake bending machine suppliers
AHYW Ahyawei 10ft cnc press brakes 4 axis made in China
AHYW China Ahyawei cnc servo electro hydraulic press brakes 4 axis manufactures AHYW
AHYW China Ahyawei DELEM cnc automatic press brakes 3m manufactures suppliers
AHYW Ahyawei 10ft sheet metal brakespress-100Ton3m, 4 Axes cnc metal bending machines Made in China factory

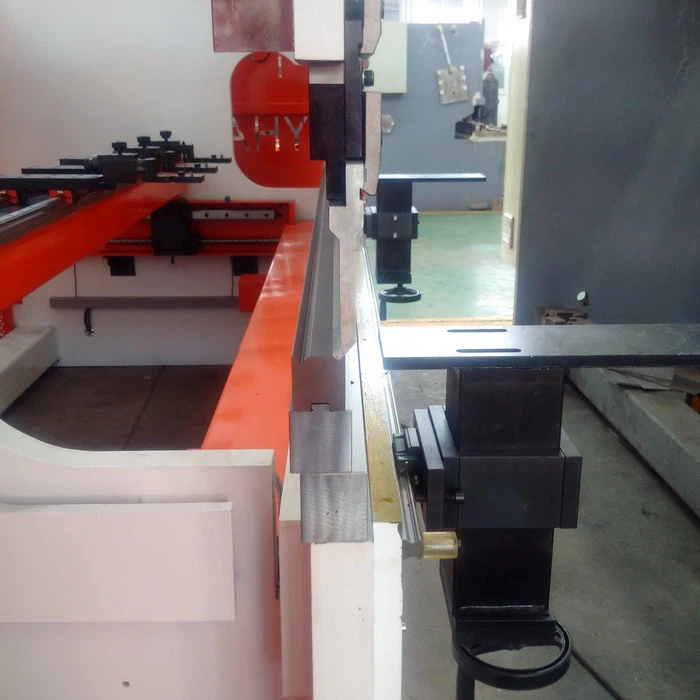

Front sheet support moving on linear guide, support height can be adjusted by different metal bending thickness with different V die China AHYW CNC metal bending brakes 4 Axis
How to compensate springback enlarge bending tools radius?
When you are running a press brake in normal situatio, the inside bending tools radius that falls between 63 percent of the material thickness and 10 times the sheet thickness is called a radius bending. If the bending radius is less than 63 percent of the material thickness, it is called acute bending. Sometimes for Radius much bigger than sheet metarial with formimng radius tools.
Press brake Lower V-die Angles Design&Setting
Normally, bottom V-die angles are used to compensate for this large change in springback. V-die angles change with size of the V-die opening.
From 4-12mm V-die openings, the angle is 90 degrees.
From 12-25mm V-die opening, the angle is 88 degrees.
From 25-50mm V-die opening, the angle is 85 degrees.
The change in the V-die angle is to assist the material around the punch radius, helping to compensate for the increased springback found in larger material thicknesses and larger bend radius.
A perfect lower V-die angle can be determined using this formula: Bending angle - Springback = V-die angle
Like 90-degree angle - 13-degree springback = 77-degree die angle, this specially for high tensile strength sheet bending, big spring back must be with high sheet bending tonnage press brakes.
When the bending tools angle is changed on a standard bending dies, the result is interference between the top punch and bottom die, causing coining to take place on both sides of the punch and die.If coining bending way is allowed to occur on a profound-radius bend, flats will be produced on both sides of the punch.One solution to this situation is to use a relieved die.This style of V die removes all interaction between the punch and die, regardless of the bending angle. When the die is relieved, the punch passes freely into the V-die body, taking advantage of the V-die angle in compensating for springback.
