AHYW Yawei 160T4M CNC Pressbrakes 4 Axis

AHYW Yawei 160T4M CNC Pressbrakes 4 Axis Manufacture made in china AHYW Yawei 4m cnc brake press 4 axis yawei factory made in china AHYW Yawei 4 axis 160T4m sheet metal bending machines china workshop AHYW Yawei 6mm sheet metal bending brakes China manufactures Standard configuratiosn of AHYW...

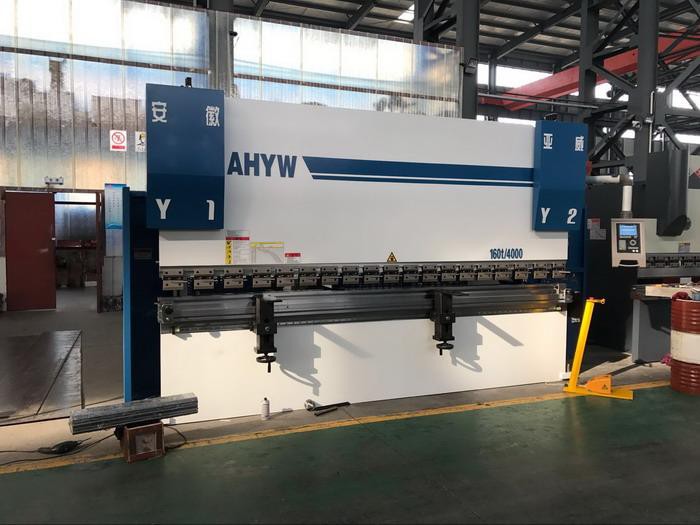

AHYW Yawei 160T4M CNC Pressbrakes 4 Axis Manufacture made in china

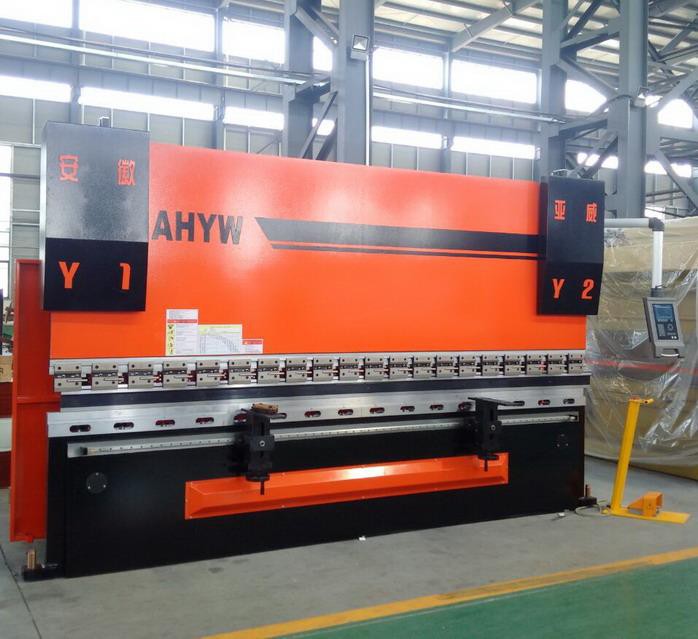

AHYW Yawei 4m cnc brake press 4 axis yawei factory made in china

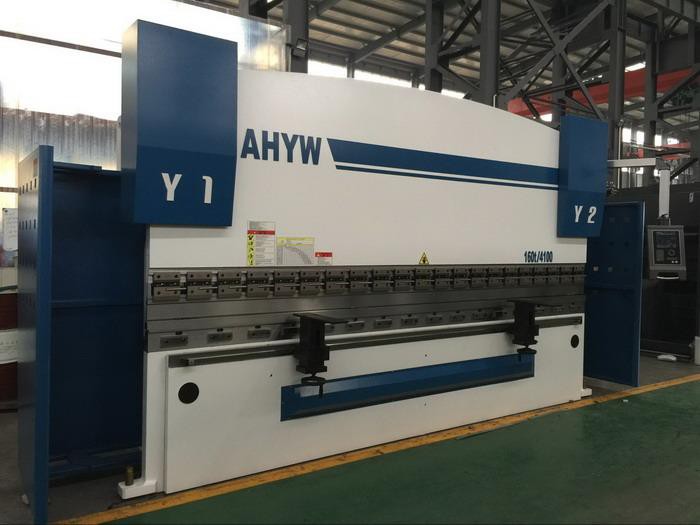

AHYW Yawei 4 axis 160T4m sheet metal bending machines china workshop

AHYW Yawei 6mm sheet metal bending brakes China manufactures

Standard configuratiosn of AHYW Yawei 4m cnc pressbrakes 160T metal bending machine in china

 DELEM DA52S Compace cnc pressbrake controller
. CNC controlled auto Y1,Y2 and X axis, CNC controlled hydraulic or motorized crowning table
. AC motorized press brakeback gauge system with ball screwed&linear guide in X-axis
. Italy Givi High accuracy linear encoders (0.005) for Y1&Y2 axis monitoring and feedback
. CNC Automatic adjustment of bending angle according to length, thickness and type of the material of specific sheet metal bending profiles
. CNC Automatic calculation of required bending stroke for the required metal bending angle
. Compatibility of used tooling and bending part
. Automatic tonnage adjustment for bending profiles
. Storing the programs in memory and recalling
. Hardened, grinded and standard segmented (835 mm) top and bottom tooling system. Bottom tool with 2 V quick change dies
. User-friendly, movable and ergonomic control panel carrying all buttons
. Double Foot pedal control
. CNC auto pressbrakes Back gauge fingers with the accuracy of 0.01
. Hydraulic system by proportional valve system with the brands Bosch-Rexroth or Hoerbiger
. Electrical panel system, designed to meet CE standards and composed of automation and electrical components.
. Amada Promecam cnc pressbrake quick released clamping

. Height adjustable Front support arms moving on linear guide

AHYW Yawei 160T4100mm cnc pressbrakes 4 axis and CNC controlled hydraulic anti-deflection table, Amada type top and bottom synchro pressbrake tooling made in china factory

 160T 4m Synchro CNC Pressbrakes 4 axis

Options of AHYW 4 axis CNC Sheet Metal Bending Brakes 13 feet Yawei made in China suppliers

. CNC controlled auto R axis bending back gauges
. CNC controlled Motorized Wila Anti-Deflection System which operates automatically
. All kinds of CNC pressbrakes controllers, DELEM DA52S, DA58T&DA66T full touch screen Graphical controller, ESA 540, S640 15 inch touch screen 2D color synchro pressbrake controllers
. Hydraulic oil coolant
. AHYW designed Special top and bottom tools for special metal bending profiles.
. AHYW Front light guard system for bending operator protections
. Laser protection system for die area for AHYW quality brake press, DSP, Fiessler, Lazer Safe   guarding are all available.
. AHYW pressbrakes designed Special throat depth (400, 500 and 600 mm,1m deep throat for specific bending profiles)
.Hydraulic top and bottom tool holding system
. Sliding front arms with bearing rollers
. Automatic slide greasing system for synchro bending brakes.

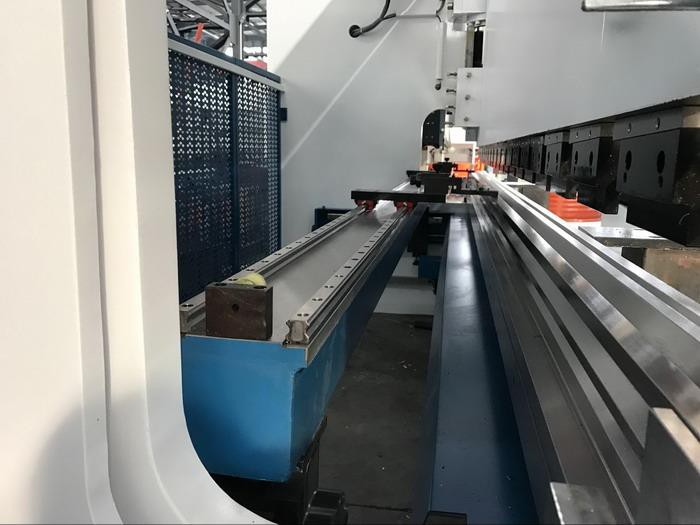

AHYW Yawei cnc pressbrakes bending fingers 4m sheet metal bending machine made in china

DELEM DA52S 4 AXIS CNC Pressbrake compact controller with CNC hydraulic crowning table, 160T4m cnc sheet metal bending machines made in china

AHYW Yawei 4m cnc brake press 5 axis bending machine made in China, Italy ESA 640 2D Graphical controlled, X&R 2 axis auto pressbrake back gauge with servo motorised, CE Synchro pressbrakes with interlock system and front light curtain protection pressbrake operator's fingers

front view.jpg

AHYW 4M CNC pressbrakes 6 axis Yawei made in China, X,R,Z1&Z2 4 axis cnc auto pressbrakes back gauges, DELEM DA66T full touch screen 2D Graphical controller with offline software

Optional Rear SICK Light Curtain guarding for AHYW Yawei CNC Synchro Pressbrake machines made in China


Optional AHYW 8 axis Yawei cnc pressbrakes:

http://www.ahycncs.net/hydraulic-press-brakes/cnc-hydraulic-press-brakes/ahyw-8-axis-cnc-pressbrakes-3m.html

Optional AHYW Hybrid Pressbrakes with Hoerbiger Eprax Hybrid system, 2 axis cnc controlled pressbrake back gauges 4mtr metal bending capacity

http://www.ahycncs.net/hydraulic-press-brakes/cnc-hydraulic-press-brakes/hybrid-press-brakes-4m-ahyw-yawei-china.html


AHYW Yawei sheet metal cutting&bending machines included :

AHYW NC swing beam hydraulic shearing machine, QC12K models

AHYW NC variable rake sheet guillotine shears machine, QC11K models

AHYW CNC variable rake guillotine shears, CNC controlled metal cutting angle, CNC controlled cutting blades gap, CNC controlled cutting stroke, CNC controlled metal cutting length,central CNC controlled lubrication for mechanical parts

(enter your material cutting parameters, AHYW Yawei CNC guillotine shear will finish your sheet cutting jobs automatically)

AHYW Ahyawei NC Hydraulic torsion bar brakes press machine, WC67K models

AHYW Yawei economic/conventional NC brakes press machines

AHYW Yawei CNC synchro brake pressing machines, AHYW models

AHYW Hybrid CNC brakes press machines

http://www.ahycncs.net/hydraulic-press-brakes/cnc-hydraulic-press-brakes/hybrid-press-brakes-4m-ahyw-yawei-china.html

AHYW 2axis NC Press brake Yawei manufactures China

AHYW 3axis CNC Pressbrakes Yawei manufactures China

AHYW 10 axis CNC pressbrakesYawei manufactures China

AHYW 4 axis CNC pressbrakesYawei manufactures China

AHYW 8 axis CNC pressbrakesYawei manufactures China

AHYW 6 axis CNC pressbrakes  Yawei manufactures China
