Germany Hoerbiger ePrAX CNC Hybrid Press Brake machine is the latest high technology generation of Synchro press brake design, thanks to Germany Hoerbiger ePrAX Electro Hydraulic Hybrid system design.

ePrAX Hybrid press brakes with Ecofriendly, 65% energy saving, Accurate,Fast, Quiet, Efficient, Durable

This ePrAX Hybrid press brake systems is the consistent further development of servo driven press brake systems

from HOERBIGER. Hybrid press brake machine using one variable speed servo

motor pump to drive&control real position and bending pressure in time





AHYW Main Electro Hydraulic structure of Hybrid Press Brake Machines:

AHYW Hoerbiger ePrAX hybrid system mounted directly on top of Y1&Y2 cylinders;

valves, pump,servo drive and oil tank are compactly integrated in the ePrAX.





1, Y1 servo hybrid, including tank, servo drive and valves

2, Y2 servo hybrid, including tank, servo drive and valves

3, Italy Phase servo drive for Y1&Y2 hybrid system

4,Y1&Y2 cylinders

AHYW Main working principle of ePrAX 4m Hybrid Press Brake Machine:

DELEM DA58T 2D graphical AHYW CNC Press brake controller can calculate the needed pressure for bending specific profiles automatically,

CNC will give command to servo motor&drive reach required rotation speed with needed oil flow to

complete one bending cycle using speed variable motor-pump unit; while two units linear scale monitor ram position in real time and feedback to CNC constantly.

Variable motor-pump only working if press bending, almost stop when in standby stage and material handling stage.



AHYW Customer benefits of 4m  CNC Hybrid Press Brake Machines (Compared with Traditional

AHYW Synchro Hydraulic press brakes&Electrical press brakes machine)

1, Reduced cycle time at same speeds

Pressbrake ram approach -mute-bending-decompression-return , 100T4m Hybrid press brake machine can save up to 30% cycle time

2, Eco-friendly

When you are considering purchase a hybrid press brake, the first thing to look at is energy savings.

Using Hybrid servo brakes press 4M/100T as an example,

customer can get a 62% energy savings while in standby mode,

44% savings during the press cycle and 60% savings over one hour.

3,Quietest

One thing that we love Hybrid press brake machine is that when

it’s in standby mode and not moving when handling bending material,

 it’s running silently, fully noiseless

4,Ease of application&maintenance

Y1&Y2 have independent oil tank, all hydraulic components are integrated in Hybrid system,

no need hydraulic expertise

5, Less of oil consumption

Oil capacity at 34.5L*2 units, no need to change oil within 7000 working hours

6, Less of electricity consumption

Servo variable speed motor-pump won’t running if operator do not press pedal

7,Accurate

ePrAX Servo Hybrid press brakes are much more accurate than standard hydraulic brakes press machine.

Each side of a ePrAX hybrid press brake is independently operated by its own hydraulic system,

with each cylinder having its own servo motor and valve controlling it.

Beyond the accuracy of the scale hybrid pressbrakes have each servo motor measuring and

controlling the amount of fluid that we’re pushing through the valves.

So it’s more controlled, on command, like a direct drive system.

It’s very fast and very accurate.

8, Oil don’t heat up

9, Higher Bending efficiency

Highest bending efficiency is achieved as no pressure is lost without proportional valves.

10, Lower cost than full electrical press brake machine

AHYW Yawei Made ePrAX 4M Hybrid press brake 100T metal bending machine  manufactures

DELEM DA58T CNC color graphical  control with 2D offline software

5 Axis auto-controlled Y1,Y2,X&R and CNC wila wave motorized mechanical crowning table

Germany Hoerbiger valves and pump integrated in ePrAX hybrid system

Italy Phase servo motor&drive for hybrid system

Japan Yaskawa servo motor for X&R auto press brake back gauge

Germany Heidenhain linear scale for Y1&Y2

Taiwan Hiwin made ball screw&linear guide back gauge

Wide Trumpf press brake finger stops moving on dual linear guide

Amada-EURO type quick released clamping

Amada-EURO hardened 88 degree top punch and 2V quick change die

Schneider main electrical components in cabinet

Wonderful foot pedal with emergency stops

Main images of Hoerbiger ePrAX 4M Hybrid press brake 100T 5 axis Bending machine  AHYW Yawei manufactures China

AHYW Hoerbiger original ePrAX Hybrid press brake system

AHYW DELEM DA58T 2D Graphical Touch screen 100T4M press brake machine controller

Italy Phase main servo motor to control variable speed pump running

Yaskawa servo motor for X&R 2 axis cnc auto back gauge for 100T4M synchro press brakes AHYW Yawei China

AHYW Hybrid CNC press brakes 100T 4mtr Yawei made in China

Yawei X&R 2 axis cnc controlled auto pressbrake back gauge AHYW  4M cnc HYBRID press brake manufactures China

AHYW Wila wave type motorised mechanical crowning table for  Yawei 4 axis 4m Hybrid cnc brakes press bending machines China

AHYW Yawei ePrAX Hybrid  Press brakes R axis moving on ball screw&linear guide, standard stroke with 200mm

Options:

Italy made ESA S640, ESA S660W, ESA S675W 2D&3D cnc press brake controller, Optinal DELEM DA66T Full touch screen controller



China Yawei designed CNC controlled X-R-Z1-Z2 4 AXES Press brake back  gauge for 100T4m 6 axis CNC Press brakes



Optional Wila press brake  New Standard Premium/Pro Tool Holders, Wila New Standard Premium/Pro Tools,STL system

 Wila’s ‘New Standard’ Tooling System has become market leader for precision, quality and flexibility. The selfseating and selfaligning features considerably improve your set up times and productivity of your press brake. Both bottom (OZU) and top (BIU) tooling are clamped hydraulically. The bottom clamping is integrated in the crowning table. New Standard tooling is safe: the Safety-Click system (for top tools up to 12,5 kg) enables vertical
loading and unloading of your top tooling without any risk.For tools with bigger weight, a safety pin or key is applied.
Working surfaces and bending radii of New Standard tooling are hardened and precision ground for maximum longevity.

The Wila Press brake  Smart Tool Locator (STL) further increases your press brake productivity. The system indicates by means of built-in LED’s the right clamping position of your tooling during tool set up and indicates the active tool location in production mode. The Smart Tool Locator offers significant benefits in speed, precision and flexibility.
Available for all hydraulic New Standard Tool Holders for top and bottom tools.

NEW STANDARD PREMIUM AND PRO TOOLING
Both top (BIU) and bottom (OZU) tools are available in a wide variety of shapes and dimensions.For more detailed information, see the New Standard Tooling Catalogue.Available for all hydraulic New Standard Tool Holders for top and bottom tools.

Advantage of WILA New Standard Premium and Pro Tool holders and tooling

Vertical loading&unloading; Self-seating and Self-aligning; High precision

CE Safety Regulations require the application of an Optical Safety Guard (OSG) when operating at
closing speed.Optical modules (transmitter and receiver) mounted to the ram of the machine monitor the downward movement in the area underneath the top tooling tip. During the fast closing speed, the beam movement is instantaneously stopped when the system detects an obstacle.
All AHYW Yawei cnc press brakes  can be equipped with LazerSafe LZS-LG-HS with mute point 6mm (RapidBend) or with LazerSafe IRIS(RapidBend Ultimate) with mute point 0 mm.

Options Wila type motorised mechanical crowning table for AHYW 6 axis CNC Synchro press brake with Italy made DSP Laser guarding China Yawei factory

Front lasersafe guarding for CE synchro press brake 4 axis,6 axis,8 axis UK IATLY Synchro press brake Yawei China, Germany Fiessler AKAS Laser, Italy DSP MCS Laser safety guarding, Australia made Lazersafe guarding

Australia made CNC Press brake Lazersafe guarding system

Lazersafe LZS-005 press brake Block laser with PCSS safety controller

Lazersafe IRIS&IRIS PLUS press brake imaging laser guarding with PCSS safety controller



FEATURES AUTRALIA LAZERSAFE TOP LEVEL Laser gaurding press brakes  IRIS PLUS
• Different V-openings (8 until 35 mm) and dies are applicable, only single V-'s
• Recommendable limitation on the working length: ca. 3600 mm
• Most optimal accuracy results (3 meters or less)
• Never collision with workpiece

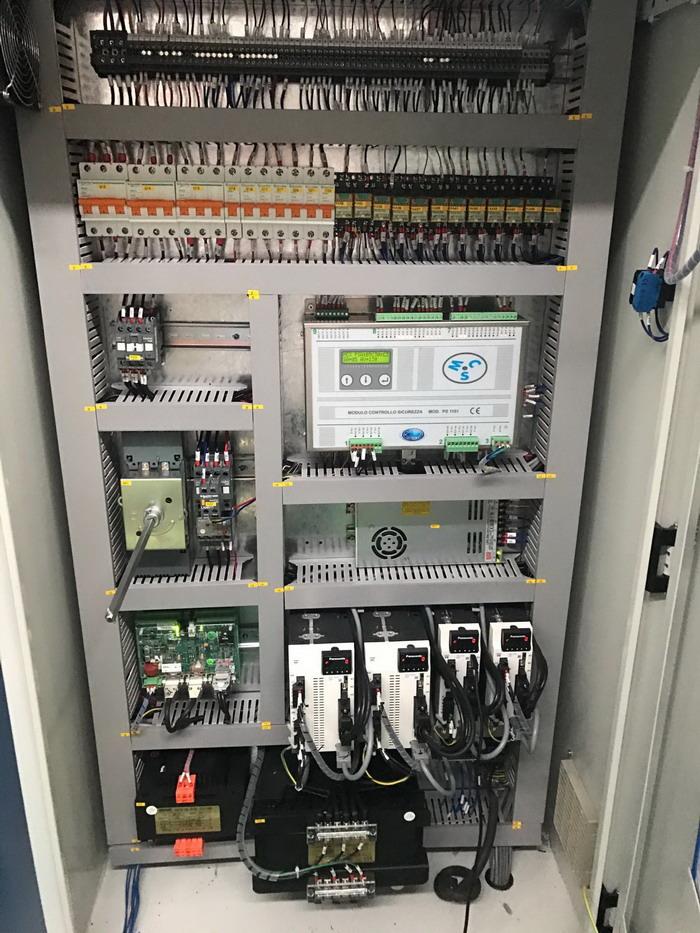

China Yawei AHYW 6 AXES 4m CNC Synchro press brake 160T4M Italy made DSP Laser guarding MCS safety controller cabinet CE Certification



Amada-EURO standard 30 degree acute top punch and 60mm square lower 4V die made in china Yawei factory



EUROPEAN Market 300T 6 axis 6m CNC Press brake , Italy made synchro press brake  ESA S640 2D controller,Italy made DSP laser guarding with MCS safety controller

Italy made Rolleri press brake tooling and die holders

Italy made Rolleri press brake pneumatic or hydraulic clamping system

Germany SICK CE Light curtain press brake guarding CE version

Germany Pilz Light curtain or Laser press brake finger guarding

CNC controlled press brake bending aids, CNC controlled press brake bending followers

More details for Euroepan required, UK&Italy made Hoerbiger ePrAX 4m CNC Hybrid Press brakes 6 axis, email us!

China Yawei AHYW made ePrAX 5 axis 4M Hybrid press brakes 100T bending machine manufactures

China Yawei AHYW made ePrAX 5 axis 4M Hybrid press brakes 160T bending machine manufactures

China Yawei AHYW made ePrAX 5 axis 3M Hybrid press brakes 135T bending machine manufactures

China Yawei AHYW made ePrAX 5 axis 3M Hybrid press brakes 135T bending machine manufactures

China Yawei AHYW made ePrAX 7 axis 4M Hybrid press brakes 160T bending machine manufactures

China Yawei AHYW made ePrAX 7 axis 4M Hybrid press brakes 135T bending machine manufactures

China Yawei AHYW made ePrAX 8 axis 4M Hybrid press brakes 200T bending machine manufactures
