AHYW Yawei 6 Axis CNC Synchro Pressbrake 3M bending machine made in china
AHYW Yawei 6 axis cnc brake press 3m sheet metal bending china manufactures
AHYW Yawei 6mm mild steel cnc bending machine 6 axis china suppliers
AHYW Yawei 160T 6 axis cnc metal bending machines 10ft china factory
AHYW Yawei 3m 6 axis CNC Brake Press 160T china manufactures suppliers
AHYW Yawei 3m 6 axis CNC synchro pressbrakes means CNC auto controlled 6 axis for different machine axis moving, Y1&Y2 two synchro cylinder moving up&down automatically, X back gauge moving backward and forward, R axis back gauge moving up&down, Z1&Z2 auto pressbrake back gauge moving left&right.
Standard AHYW Yawei 4 AXIS, 6 AXIS, 8 AXIS CNC Synchro brakes press machine with cnc ccontrolled auto deflection table(crowning table), it's controlled auto by pressbrake operator entering metal bending data.
AHYW Sycnhro pressbrakes bending machine is perfect for complicated, sensitive, single or multiple bending at high speed. This hydraulic CNC synchro pressbrakes is among the highest rated machines for helping to increase productivity and lower costs with a user-friendly CNC controller and low-cost hydraulic maintenance. It allows you to have more production capacity and eliminates wasted time on production.
For the Best in Metal Sheet Bending, Choose AHYW 160T3M 6 axis CNC Synchro Pressbrake from China Yawei factory
Combination of speed and power
High quality and repetitive bending is obtained by using synchronized cylinders and valves
Automatic utilization of all axes on startup
These machines are designed using SOLID WORKS 3D programming and made with enhanced quality steel using the latest technology
Well-known top and bottom pressbrake tools brands are long lasting and hardened to provide precise bending
Quiet high-pressure pump
Specially designed and produced back gauges help with multi-functional and sensitive bending in complex parts.
CNC controlled servo drive high precision ball screws and lineat guide.
Your best sheet metal bending solution from china AHYW Yawei guillotine and pressbrake suppliers
█ Standard Configurations of AHYW Yawei 6 axis CNC Synchro Pressbrake 160T3200mm for 10ft sheet metal bending machine manufactures, suppliers, factory in China:
• Italy ESA S640 15inch fullTouch Screen CNC controller with 2D Graphical offline software
• Y1+Y2+X+R+Z1+Z2+CNC Hydraulic crowning or Motorized mechanical crowning table, 6 Axis CNC Hydraulic Brakes pressing machinery made in china
• Taiwan HIWIN Linear guide and ball screw for autop bending back gauge moving, dual linear guide for fingers moving
• Japan Yaskawa or Panasonic servo motor and driver for 4 axis CNC controlled auto brake pressing back gauge
• SCHNEIDER main electrical components in cabinet
• World top level hydraulic system, German Bosch Rexroth valves and Japan Nachi pump, optional Hoerbiger pump for China AHYW 6 axis cnc syncho pressbrakes
• Germany EMB fuel pipe union
• Seals: Japan NOK
• German HEIDENHAIN linear scale or Italy Givi linear scale for Y1&Y2 axis monitioring
• Amada type CNC synchro Press Brakes quick released clamping made in china
• Dual linear guide for pressbrakes bending finger stops moving
• EURO Amada type 88 degree gooseneck top punch and Multi V die designed by different metal bending thickness
• Options CE light curtains for operator finger protection
• Coptional E approved CNC brake press metal bending machine with interlock system side and rear door, safety switch
Options for AHYW Yawei 6 axis CNC Synchro Brake Press 10ft/160T bending pressure
ESA S650 2D Graphical CNC pressbrake controller
ESA S660W 19inch 2D Graphical CNC pressbrake controller
DELEM DA66T, DELEM DA69T Graphical cnc pressbrake controller
SICK M4000 front light curtain guarding
SICK C4000 rear light curtain guarding
Pilz camera laser guarding
Italy DSP Laser guarding with MCS controller
Australia Lazersafe front guarding with controller for CNC synchro pressbrakes
CNC controlled 6 axis auto pressbrakes back gauges configurations
█ Technical Specifications of AHYW 6 axis 160T CNC Synchro brake press for 3m&10ft sheet metal bending machine Yawei China factory for sale :
AHYW ESA S640 CNC Brakes Press 160T3200 | |
Bending Power | 160 Ton |
Bending Length | 3200mm |
Distance between side frames | 2600mm |
Y1&Y2 Stroke | 200mm |
Max Ram Daylight opening | 420mm |
Throat depth | 400mm |
X back gauge stroke | 600mm |
R stroke | 150mm |
Approach Speed | 160mm/s |
Bending Speed | 10-15mm/s |
Return Speed | 150mm/s |
Main motor power | 11kw |
Gross Weight | 11.0T |
Dimensions(L*W*H) | 4000*2100*2700mm |
Main images of AHYW Yawei 6 axis CNC Synchro Brakes Press 160T3200mm for 10 feet sheet metal bending;
AHYW Yawei made 6mm sheet metal bending machine 160T 6 axis synchro brake pressing
Italy ESA S640 6 axis CNC Brake Press 160T3200 and CNC controlled Wila Mechanical Motorised Crowning Table
EURO Amada 88 degree Sash punch and Multi V die for diferent thick metal bending applications
Germany Brand Bosch Rexroth Hydraulic Proportional Valves for standard China Yawei cnc synchro pressbrakes 4 axis, 6 axis, 8 axis Yawei made in china factory
Amada type cnc pressbrake quick released clamping system with crowning wedges
X&R axis auto pressbraek back gauges, Servo motor CNC controlled by ESA S640 2D color Graphical

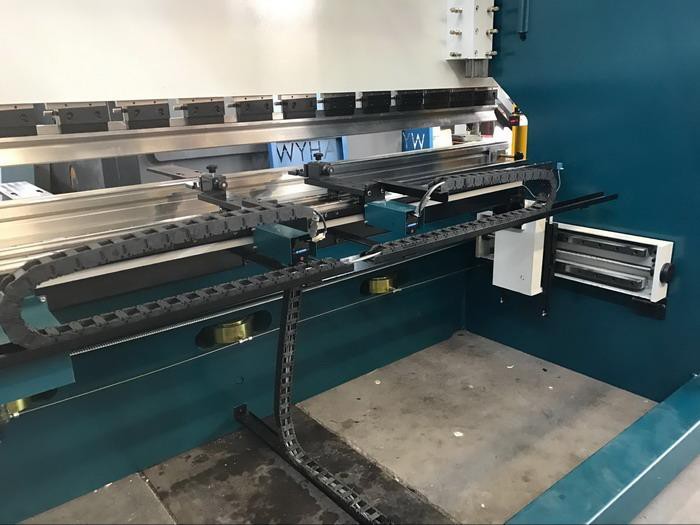

X,R,Z1&Z2 4 axis CNC controlled pressbrake back gauge metal bending applications Yawei china suppliers
Customized goosenck top pressbraek punch and Multi V die for customized metal bending applications
Optional DELEM DA66T 6 axis cnc pressbrake controller 2D full touch screen

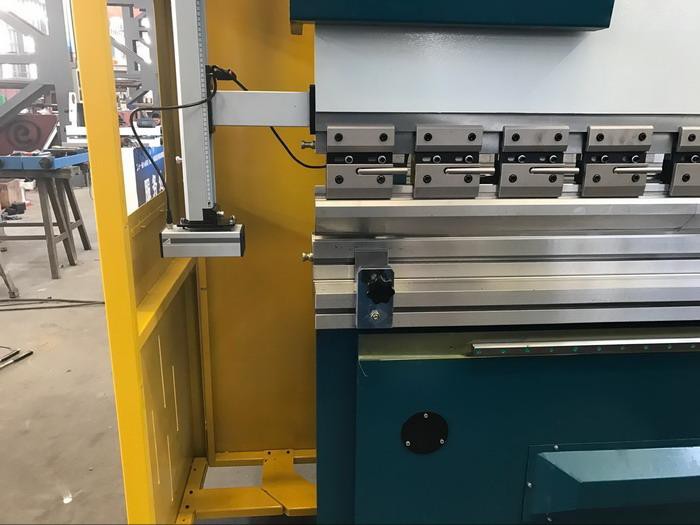

AHYW Yawei 6 axis cnc brake press 3m&10ft for 6mm metal bending machine with Lazersafe guarding
Options Italy DSP Laser guarding 100T&8FT CNC Pressbrakes 4 axis Yawei china factory
Options Italy DSP MCS controller Laser guarding 125T&3m CNC Pressbrakes 4 axis ESA S640 Yawei china factory
China Yawei AHYW 160T4M 8 axis cnc pressbrakes for 13ft sheet metal bending applications
