AHYW Yawei 800T8M 6 axis CNC Tandem Press Brake DA66T made in china bending machine factory

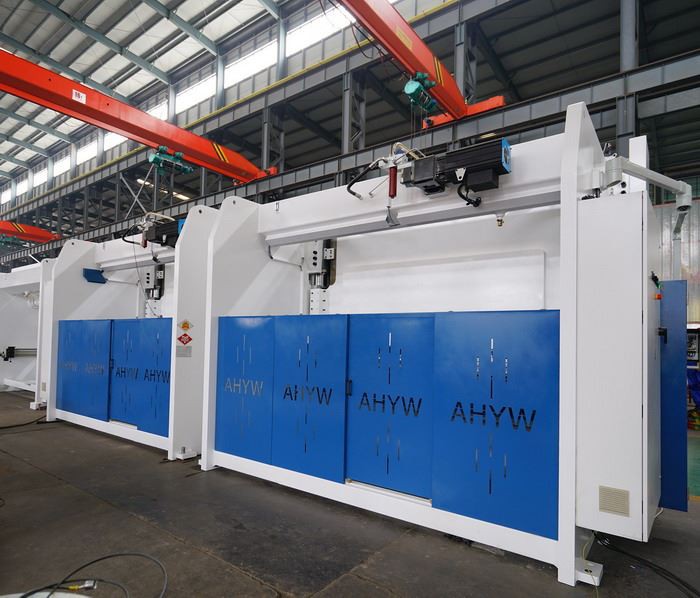

Yawei AHYW 8M CNC Synchro Tandem Press brakes use 2 same models pressbrake united for bending longer sheet, especially over 8m length, 2 machines can be bending independent for high productivity short metal bending, it uses same controller with synchro technology; different models can be also united with tandem options, one big press bending thick&larger parts, one small press bending thin&small profiles, it can be work together bending longer parts with reasonable design on 2 different size machines.

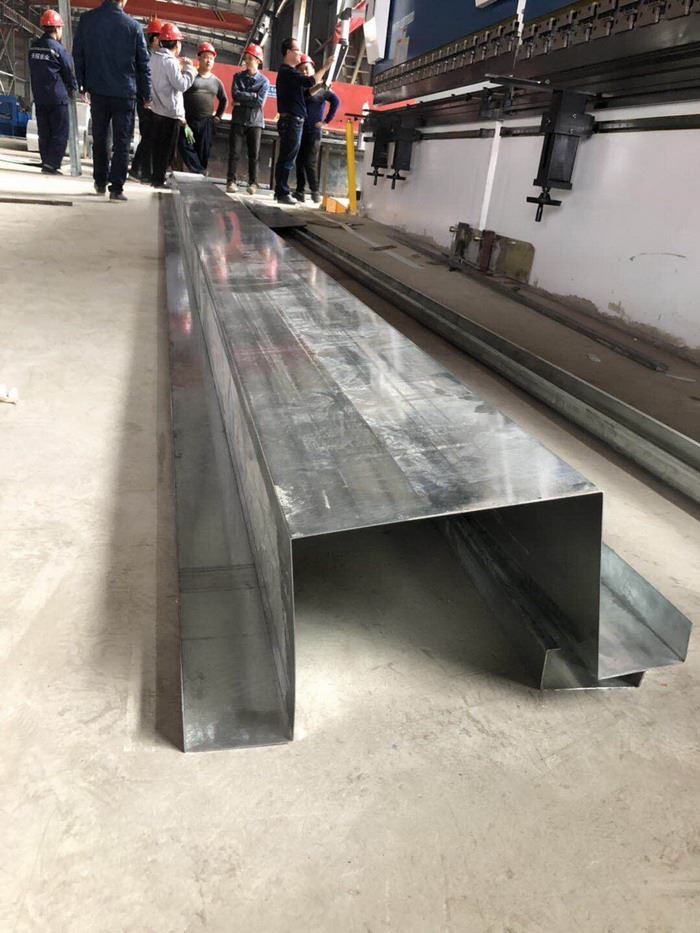

800T8M CNC Tandem press brake can bending max 12mm carbon steel sheet with Max 8m bending length, stainless sheet can be bent up to 8mm with harded top punch, you can also use 800T8M large press brake for bending Hardox/Weldox high tensile strength sheet material for manufacture truck bodies,Included bending truck trailers, bending platforms,Bending Skeletal, Bending Flatdecks, Bending Dropside, Tautliner; Using press brake to produce Tippers, included bendng rear tipper, bending side tipper, bending dropside Tipper; press brakes can manufacture all kinds of Tankers, bending Aluminium fuel tanker, Alumium Auger Bulk tankers, Steel&Aliminium dry bulk tankers or bending conical chemical tankers; some truck bodies manufacture ordered Yawei 400T4m cnc press brakes bending unique trailers with special bending&forming tools, can bending different kind of Bumper parts according to their Truck bodies building business.
Standard Configurations for 800T8M CNC Tandem Press brake 4 axis&6 axis 8m longer sheet metal bending:
Italy made Givi Linear scales monitoring Y1&Y2 bending position in time with synchro bending movement
Amada Promecam quick relased clamps for top punch with crowning wedges for accurate clamping tools
Euro Style top punch with sectionalized length suiting different bending profiles
Standard Multi V die for bending metal material from 0.5mm to 12mm mild steel sheet up to 8m
AHYW Yawei CNC tandem press brakes execute all axis with cnc auto controlled,Ram depth accuracy and repeatability are achieved with linear scales. These components evaluate the position of the ram multiple times per millisecond and direct that information back to the CNC controller, which then governs the hydraulic system powering the machines. Instead of reading two scale positions for a single machine, CNC tandem press brakes read the position of four scales and adjust accordingly.
The tandem press brake can be controlled either from a single station to act as one long press brake, or tandem can be operated independently as two separate synchro press brakes. Most CNC press brakes now have an option that allows part programming to be shared across both cnc press brakes.
Once the mechanical features are in synchro pressbrake bending machiens, it is imperative that both bending machines be functioning properly. Any problem one of the pressbrakes experiences will affect the operation of both. For instance, if a linear scale is misrepresenting the position of the Y1 cylinder on one side of the tandem, the tandem press brake will not be able to deliver consistency in the final sheet bending angle across the length of the entire part.
Optional Electrical press brakes or Hybrid Press brakes
Energy savings associated with electric press brakes is one of the advantages over full hydraulic press brakes. Current some hydraulic system or hybrid press brakes are becoming much more energy efficient making use of technology to reduce pump running and oil flow when bending machine in idle stages, so the full hydraulic and electrical system is not wasting energy. But the electric drive is much more efficient, probably over 30 percent more efficient.
Obvious advantage of press brakes is power consumption. This advantage can not only translate into utility cost savings, although those might be minimal,If you compare 4-ft electric press brake with a 10-ft hydraulic press brake, its total energy savings could be over 70%.
Efficiency of these systems is often found in the design and motor technology used to generate the required bending force and acceleration and return speed.
Safan’s electronic press brake ensures short response and delay times resulting in bending speeds of up to 20mm/sec. The high acceleration and other servo motor characteristics mean not only fast approach speed but also a seamless change over to bending speed.
Safan, a Netherlands-based company, offers the E-Brake technology that generates pressing force by means of synchronized electric motors that transfers force via belts and pulleys to the beam. The pulley-block pulls the top beam of the press against the effect of laterally arranged return springs into the die and applies the pressing force evenly along the length of the machine, meaning that crowning is rarely an issue.
Optional AHYW Yawei 6 axis Synchro 8m&12m CNC tandem Press brake featured Wila New Standard Premium/Pro Tool Holders, Wila New Standard Premium/Pro Tools,STL system
Wila’s new standard tooling snaps into position. There’s never a need for tweaking or shimming, and the machine is immediately ready to bend parts.
Not only does the Wila tooling make tool changes much faster, but once the tools are clamped in place, there’s no fine tuning, shimming or adjustments. The machine is immediately ready to bend parts.
The setup sheet is electronic. CNC Bending machine controlelr tells the operator what tools are needed, where to find them and where they should be placed. Which thsi will makes the first setup fast, but the second one even faster.So it’s more than just loading tools and bending the part. If that’s all we were concerned with, you could literally make a good first piece in less than five minutes. It’s really quite amazing when working with Wila Hydraulic tool holders.
Optional PCSS-A Tandem press brake Adaptor is a compact module that interfaces the PCSS-A controllers in the master and slave machines via a safety communications protocol that simplifies installation and eliminates complex wiring. Management and switching of foot pedals, emergency stop buttons as well as side and rear gate interlock switches is handled automatically when the machines are operating in single or tandem configuration.
CNC controlled auto motorized servo bending aids for larger metal panel bending applications, especially designed for larger and thin sheet
More detailed information for AHYW Yawei 8m&12m CNC tandem press brakes, email us for professional&affordable longer sheet metal bending parts applications for your projects.
