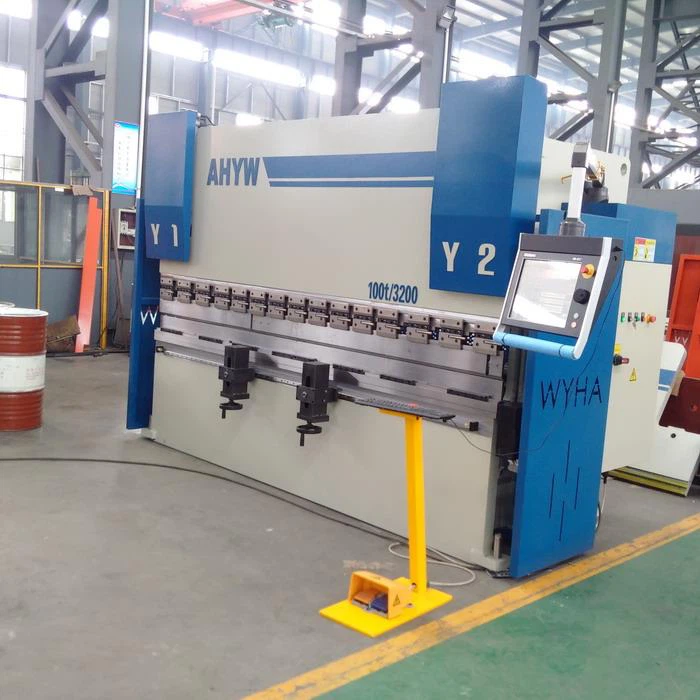

AHYW Yawei 4 axis 100T3M CNC Press Brake DELEM DA66T metal bending 2D controller

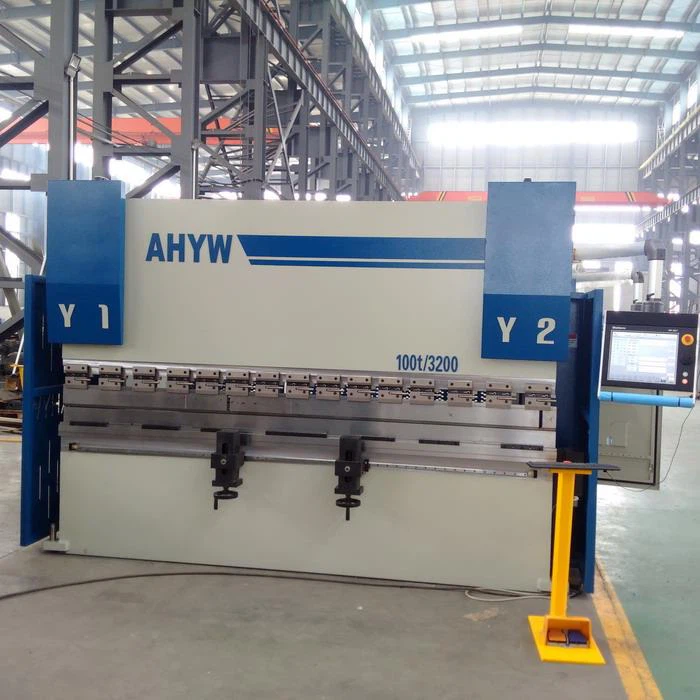

AHYW Yawei 100T CNC press brake 3m sheet metal bending machine china suppliers
AHYW Yawei DELEM DA66T Full touch screen cnc press brake controller china manufactrues
Confirming the proper press brake tonnage for air bending a piece of sheet metal or a heavy plate will depend on a couple of variables. Each aspect of sheet metal bending is important to consider when choose the proper tonnage for the desired bend.It is necessary to take into consideration the type of material you are working with and material thickness&length. Here most of sheet metal press brakes bending charts are based upon calculations related to air bending mild steel, some with stainless sheet bending, you need to know how your material will compare to mild steel. For example, based on a bending chart created for carbon steel, air bending stainless steel will require approximately 150% more tonnage than the chart shows, while aluminum will require approximately 50% less. The thickness of the material is also crucial because that will determine the opening of the die required and the minimum flange length you can bending over that particular die opening. The opening of the die will also determine the inside radius of the sheet profles bends.
Optional Wila New Standard Premium/Pro Tool Holders, Wila New Standard Premium/Pro Tools,STL system;

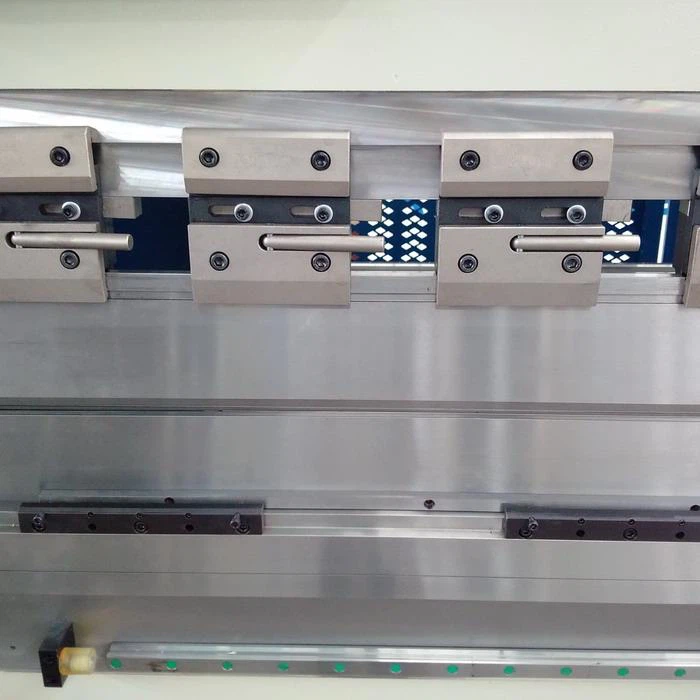

Wila New Standard Premium Clamping
The New Standard Premium Clamping systems offer the ultimate in precision, ease of operation,bending freedom, clamping performance, load bearing capacity and durability. The entire tool pressure surfaces are CNC-Deephardened® (approx. 56HRc) to minimize wear and provide a high level of performance and accuracy for the long term. The clamping has been designed in such a way that even tool segments as small as 10 mm can be clamped and positioned individually.Clamping is suitable for both head and shoulder bearing tools.
Wila New Standard Pro Clamping
For the clamping of New Standard top tools, Wila not only supplies the trend-setting New Standard Premium Clamping systems, but also high-quality alternatives for even more bending applications:
New Standard Pro Clamping systems. The specifications of these clamping systems are similar in operation to the Premium clamping line with the main difference being that the pressure and reference surfaces are not hardened. With the New Standard Pro Clamping systems it is possible to clamp and position tool segments as small as 15 mm individually.
Side Protection Bending Guards
All New Standard Premium Clamping systems come standard with Guards on the ends of the clamping units. All New Standard Pro Clamping systems and American Style Clamping systems can be outfitted with a Guard on the left and right end as an option. The New Standard Guards (see picture) have been provided with a cast steel insert to facilitate horizontal insertion of tools. In addition, the Guard prevents damage to the clamping systems and tools.
Wila Press brake CNC controlled motorized crowning or Manual crowning table with tool holders
Wila Crowning Systems are recognized by their internal opposing wave technology (the “Wila Waves”) allowing
for centralized proportional crowning over the machine length while also providing localized adjustment capability.
The resulting compact design is available in a wide range of models with automatic or manual operation for
practically any press brake type or size.
The Wila New Standard and American Style Clamping systems offer:
◎ The fastest bending tool changeover
◎ Automatic clamping,seating&aligning
◎ Individual clamping of each tool segment
◎ Vertical and horizontal tool changeover, loading&unloading
◎ Available for use on all new or current brand press brakes
Optional AHYW 8 axis Yawei cnc pressbrakes:
Optional AHYW Hybrid Pressbrakes with Hoerbiger Eprax Hybrid system, 2 axis cnc controlled pressbrake back gauges 4mtr metal bending capacity
AHYW Yawei sheet metal cutting&bending machines included :
AHYW NC swing beam hydraulic shearing machine, QC12K models
AHYW NC variable rake sheet guillotine shears machine, QC11K models
AHYW CNC variable rake guillotine shears, CNC controlled metal cutting angle, CNC controlled cutting blades gap, CNC controlled cutting stroke, CNC controlled metal cutting length,central CNC controlled lubrication for mechanical parts
(enter your material cutting parameters, AHYW Yawei CNC guillotine shear will finish your sheet cutting jobs automatically)
AHYW Ahyawei NC Hydraulic torsion bar brakes press machine, WC67K models
AHYW Yawei economic/conventional NC brakes press machines
AHYW Yawei CNC synchro brake pressing machines, AHYW models
AHYW 6 axis CNC press brakes Yawei manufactures China 3m,4m&6m sheet metal bending machine
