Germany Hoerbiger ePrAX Hybrid press brake system CNC Hybrid Press Brake machine is the latest high technology generation of Synchro press brake design, thanks to Germany Hoerbiger ePrAX Electro Hydraulic Hybrid system design.
ePrAX Hybrid press brakes with Ecofriendly, 65% energy saving, Accurate,Fast, Quiet, Efficient, Durable
This YAWEI PBM ePrAX Hybrid press brake systems is the consistent further development of servo driven press brake systems
from HOERBIGER. Hybrid press brake machine using one variable speed servo
motor pump to drive&control real position and bending pressure in time
China Yawei 10ft Hydrid CNC press brakes 4 axis suppliers factory
China Yawei DELEM CNC automatic 3mtr press brake bending machines manufactures
China Yawei Hybrid electro hydraulic 4 axis cnc press brakes machine 3mtr manufactures suppliers
AHYW Yawei 100T3mtr cnc press brakes 4 axis machines China manufactures
China Yawei 3mtr Synchro cnc press brakes machines suppliers factory
AHYW Yawei 3mtr cnc brakes pressing machines 4 axis factory forsale made in China
This China made Yawei AHYW Hybrid 4 axis CNC Press Brake machines -3m100T is fully Synchro cnc press brakes design in China, Hydrid metal bending machines will adopt servo motor to drive pump, the pump only start working only when pressbrake operator press footpedal with metal bending procedure, it will just standby when no workpiece bending, which will save electricity and oil consumption, it's one elvolutionary synchro cnc press brakes
Advantages of Yawei 3mtr CNC Hybrid pressbrakes 4 axis manufactures suppliers made in China:
1, Save electricity rates at least 40%
Almost no electricity consumption when bending machine on idle stage
The servo motor just work when operator depress foot pedal, while traditional AC motor always on working status and pump is running all the time even no any bending signal.
2, Lower oil consumption
Hybrid system only execute running oil on demand, it can avoid any throttle&overflow consumption, when operator loading material or operating on controller, the pump is stop&silent,no any oil consumption.
Smaller oil tank and lower oil consumption, reduce 30% oil capacity.
3,Lower noise
Motor and pump won’t running when idle and making program stage.
04, No need oil cooler
Pump won’t running cycle all the time, the oil won’t heat up, prolong using life time of hydraulic parts and oil
05, Fast response of bending cycle
Servo motor have much faster response time than AC motor when ram moving up&down, approach speed can reach 200mm/s.
06, Higher bending accuracy
Servo motor can control running speed and pump oil flow precisely, thus higher bending accuracy can be reached.
Increased Ram Speeds
Better Accuracy
Smoother Ram Positioning at High Speeds
Less Oil Requirement
Main configurations of China Yawei AHYW 3mtr 10ft 100Ton CNC Hybrid brakespress 4 axis:
DELEM DA58T Touch screen CNC pressbrake controller
2D Offline software, metal bending parts designer can make the drawing in computer and operator upload it to Controller directly
Y1+Y2+X+R, 4 Axis automatic controlled, CNC motoized Mechanical crowning table
Main electrical components:Schneider
Yaskawa Servo motor and drive for X&R auto back gauge
ESTUN main servo motor special for pressbrakes made in China
German Bosch Rexroth proportional Valves with safety valves
German Rexroth pump or Voith Pump
Hiwin ball screw and linear guide for CNC controlled auto back gauge X&R
Seal ring:Japanese NOK
Linear scale:German HELDENHAIN or Italy Givi
Amada-EURO type quick released CNC Pressbrakes clamping made in China
Front sheet supports on linear guide, supports height can be adjusted according to different die

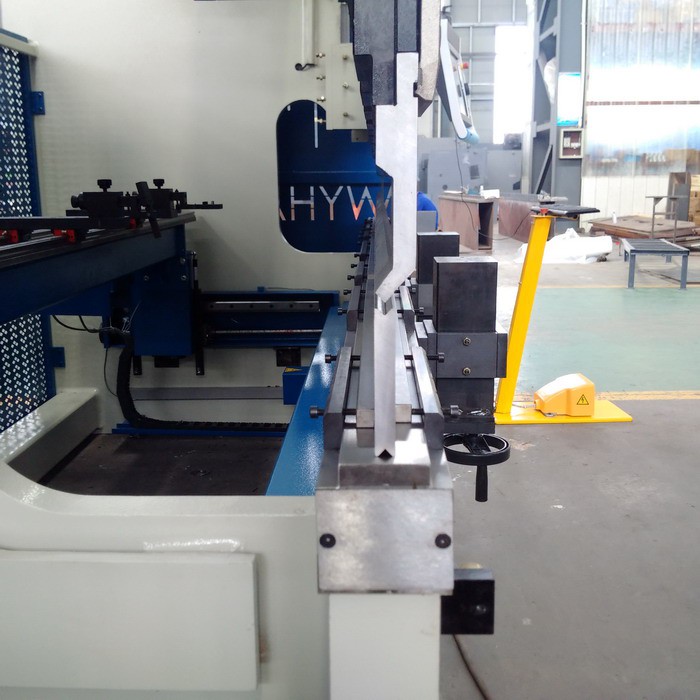

Euro-Amada type Sash punch and 2 V quick change die
Strong cylinder cover and side fence
Technical Paremeters of Yawei machinery manufacture made China AHYW Hydrid CNC Press Brakes 100Ton3mtr
| Max bending pressure | 100Ton | Max metal bending length | 3200mm, 10FT |
| Side frames distance | 2700mm | Max daylight | 420mm |
| X bending back gauge | 600mm | R axis bending back gauge | 150mm |
| X moving speed | 400mm/s | Approach speed | 220mm/s |
| Main servo motor power | 6kw | Bending speed | 18-20mm/s |
| Gross weight | 7.5T | Dimension | 3600*1900*2400mm |

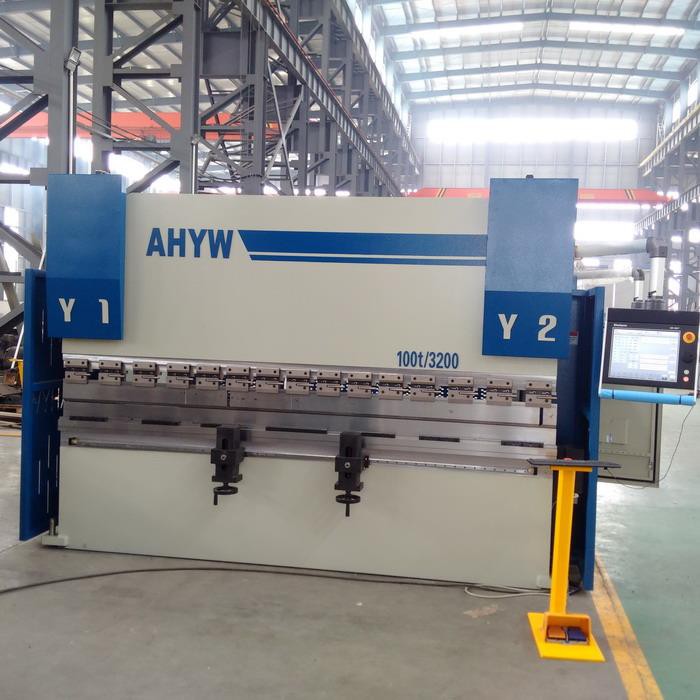

Main images of Yawei AHYW 100Ton3m DA66T Hydrid CNC Press Brakes 4 Axis manufactures, suppliers in china

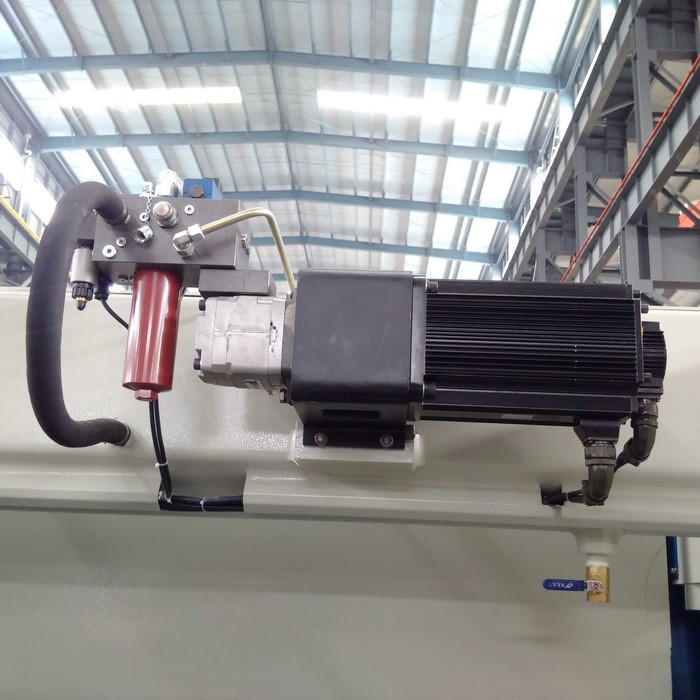

China ESTUN made Main servo motor to drive pump for China AHYW Yawei Hybrid 4 axis CNC Press Brakes 3mtr manufactures

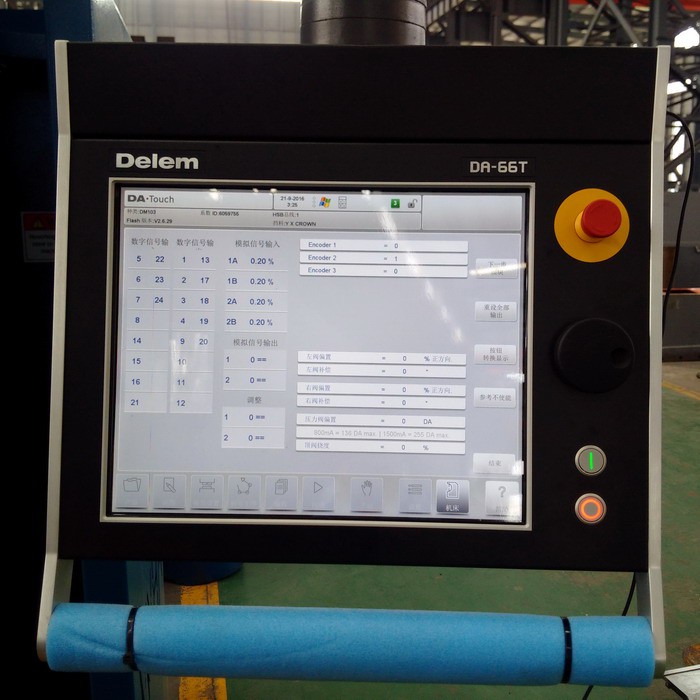

DA66T Touch screen 2D cnc press brakes controller with 2D offline software
German Heidenhain Linear scale for China Yawei made AHYW CNC press brakes manufactures
Japan Yaskawa servo motor and drive for 2 axis cnc controlled Yawei press brake manufactures China back gauge
Ball screw&linear guide cnc automatical press brake back gauge factory forsale made in China

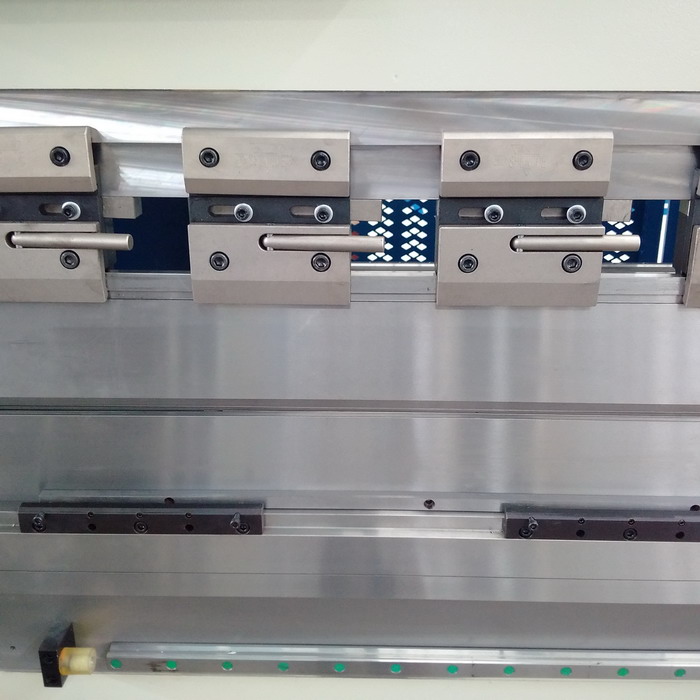

EURO Amada type Yawei made cnc press brakes quick released clamping for ram top beam
DELEM DA66T Touch screen 2D 4 axis CNC press brakes controller and Wila type mechanical motorized crowning table
China Yawei 3mtr cnc synchro press brakes 5 axis with Anti-deflection table

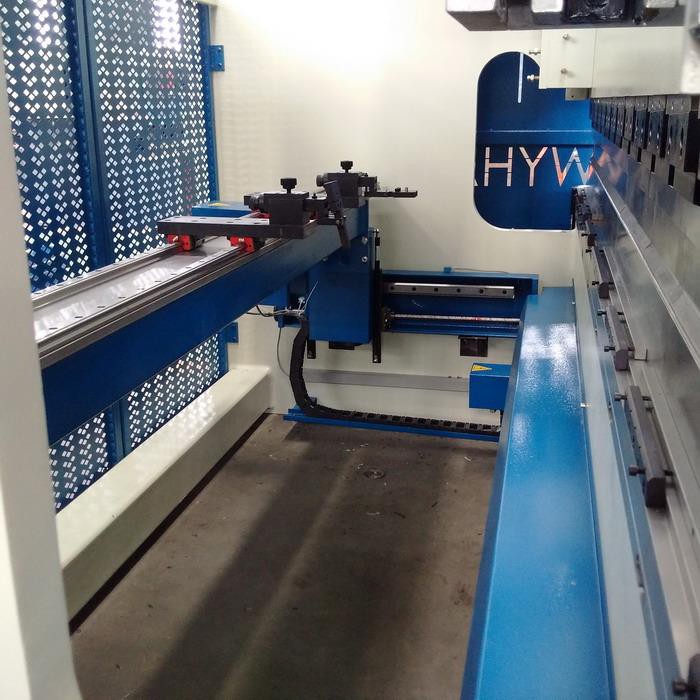

Yawei machinery manufactures China X&R 2 axis cnc controlled cnc press brakes back gauge
