Ahyawei AHYW Large 8m800T CNC Brakes Press factory forsale made in China
China Yawei 8m large cnc press brake machines manufactures suppliers
Ahyawei 800T large sheet metal pressing bending machines suppliers
Ahyawei AHYW 800t large mild steel plate bending brakes manufactures china
China Yawei AHYW 8M bigger cnc press brakes manufactures suppliers
China Ahyawei 8m metal hydraulic bending machines suppliers
China Yawei 16mm carbon steel plate bending machines cnc controlled manufactures
AHYW CNC press brakes 4 axis 8m metal bending brakes factory made in china
Ahyawei AHYW CNC Synchro electro hydraulic press brakes 8m large metal bending machines manufactures china
█ Technical Specifications of 800Ton8m bigger cnc press brake bending machines Ahyawei made in China:
CNC Hydraulic Press Brake-800T8000 | |
Bending Power | 800 Ton |
Bending Length | 8000mm |
X back gauge stroke | 1000mm |
Max. Bending thickness | 16mm mild steel |
Distance between side frames | 6800mm |
Y1&Y2 Stroke | 420mm |
Max Ram Daylight opening | 820mm |
Throat depth | 600mm |
Main motor power | 55kw |
Gross Weight | 85T |
Dimensions(L*W*H) | 8500*2300*3700mm |

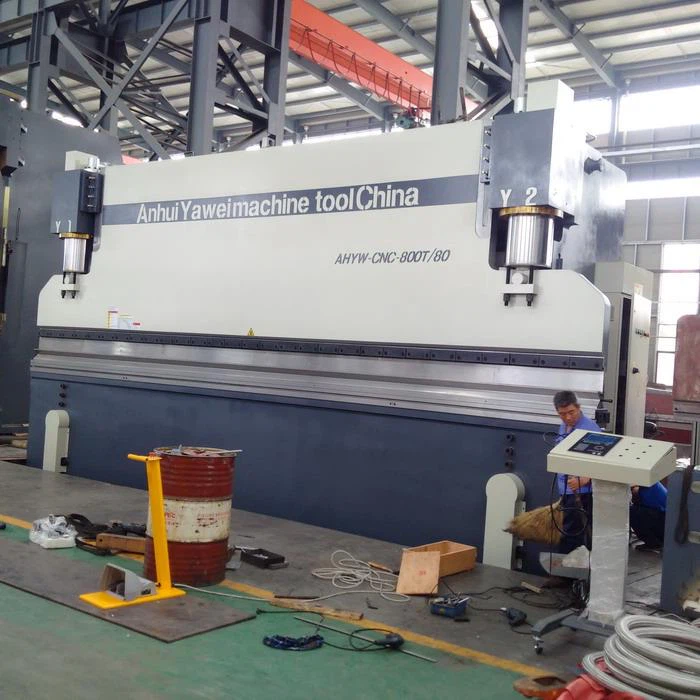

China Ahyawei AHYW Hydraulic CNC Brakes press -800Ton8m large metal bending machines
Heavy duty bending machine, big spring back, all steels, aluminums, and even plastics exhibit springback upon release from the bending forces. Springback is the release of elastic strain and is related directly to the material yield strength. It’s the reason you need a greater bend angle to achieve the required angle, especially for high-yield-strength steels and most aluminums.
A certain sheet metal workpiece may have, 2 degrees of springback once bending, so you need a punch with minimum included angle that’s at least 2 degrees less than the included die angle to provide the needed angular clearance. But as the radius increases, so will springback, and the amount of springback can be significant when the radius is large in relationship to the sheet or plate thickness.
Ahyawei AHYW 800t8m and 1000T6m large cnc press brakes manufactures suppliers OEM partners made in China
Any special requirements for Ahyawei AHYW 6m,8m, 10m, 12m large Hydraulic sheet metal guillotine cutting machines and quality 600T,800T, 1000T,1200T,1500T,2000T large metal cnc press brake bending machines from China factory, send email to export@ahycnc.com now.
DELEM DA58T, DA66T 2D Graphical offline software helps to increase sheet metal bending productvity.
DELEM 2D offline programming provides an opportunity to simulate the bending process before it hits the bending tools. The programmer can observe multiple ways of bending a part and determine which approach will result in minimal material handling and optimal tooling setup, it can verify the designed sheet metal profiles whether it's reasonable for bending phase, or verify the sheet bending tools are ok for the metal bending jobs.
The programmer also can rely on the software to look beyond the current bending profiles. 2D offline software can be used to control toolstation setups and identify those parts that might be able to be processed using the same setups.
