Anhui Yawei Machine 40Ton Mini Hydraulic CNC Press Brakes professional manufactures in china
This Min Hydraulic CNC Press Brake can bend thin metal plate with quality function, DELEM DA52S
CNC Press Brake controller, 8FT China CNC Press Brake Manufactures suppliers factory
AHYW Yawei 40Ton Mini Hydraulic CNC Press Brake 4 Axis specifications:
| Max. bending pressure | 40Ton | Max bending length | 2500mm |
| Y1&Y2 stroke | 150mm | Throat depth | 400mm |
| Max daylight opening | 380mm | X back gauge stroke | 600 |
| Main motor power | 5.5kw | Dimension | 3000*1700*2200mm |

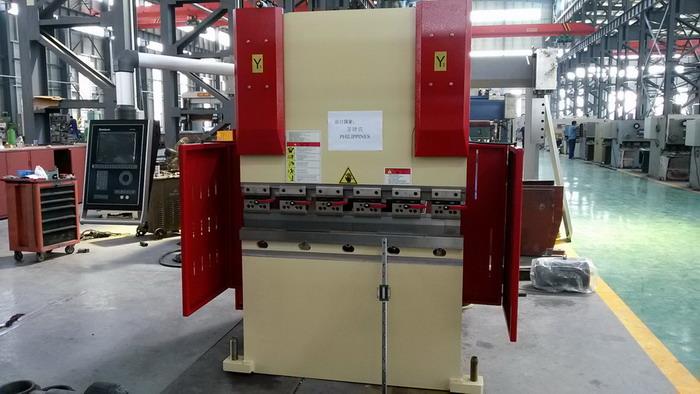

Main photos of 4 Axis yawei ahyw Mini CNC Press Brake manufactures suppliers factory china
Anhui Yawei 30Ton small CNC Press Brake manufactures suppliers china

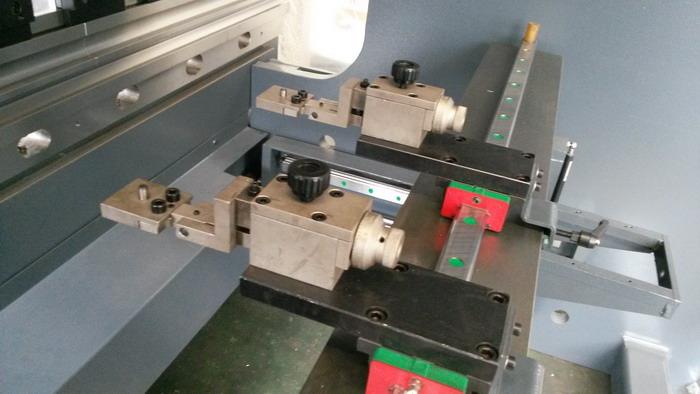

4FT quality Hydraulic CNC Press Brake factory for sale china, AHYW Yawei 40T mini 4ft cnc press brake has a bending length of 4 feet, it won't take up much more floor space than a large air compressor! With 40 tons of bending force, you can imagine the ability to bend a thick sheet at 4 foot wide with the capabilities to bend even thicker sheet at less than full working width. This machine comes standard with DELEM DA53T controller, a CNC Controlled X &R Axis Back Gauge, Euro Amada Promecam top punch,LED working lights, Sliding Front Sheet Supports moving on linear guides, and a Dual fott pedal Switch.
Any interesting for this Anhui Yawei Machine 40Ton Mini CNC Hydraulic Press Brakes bending machines, please send email to export@ahycnc.com
For sheet material air bending, a bending angle is shaped by pushing the punch into the sheet metal to a specific position within the die opening. Different profiles bending angles can be obtained using the same set of tools. The sheet thickness and the behavior of the material determine the angle that can be achieved by the downing stroke of the top punch.
When top punch drives down into the sheet metal, plastic deformation of the material occurs—not the fracturing of the material that occurs with cutting and punching. In fact, high tensile strength of the material has little effect on the bending process.Bending is mainly affected by strain hardening, the property by which a material becomes stronger the more it is deformed. Hardox, Weldox high tensile strength sheet material needed special designed cnc press brake main frames and top&bottom tooling system.
Adaptive shape bending is a special form of press brake air bending. The same tooling setup is used as in air bending, except that the punch position is not preset to a particular value. The position of the punch is controlled through the press brake’s in-process angle measurement system.
