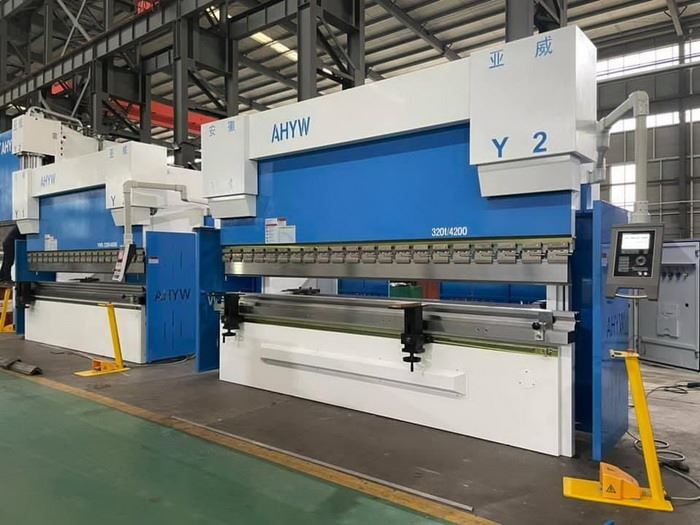

AHYW Yawei PBH 320T4M CNC Metal Bender 5 axis made in china factory
AHYW Yawei china factory made 320T 5 AXIS 13ft CNC metal bender is the most cost effective synchro press brake all over the world, standard coming with DELEM DA53T touch screen controller&offline software, cnc controlled hydraulic anti-deflection table or cnc motorized crowning table are all available; Italy made synchro press brakes GIVI Linear scales monitoring Y1&Y2 running in time sharing with same oil source. Bending speed and bending accuracy are highly automatically command in CNC DELEM Controller, different metal bending profiles simulation can be got easily even when you sit at your office.
Z axis consideration when you are looking for one cnc press brake, you maybe be need to consider whether or not you will be bending small parts on your cnc press brake. Like operator need to alternating between 50 and 250mm wide pieces, they may want powered Z1 and Z2 fingers so they won’t have to keep manually adjusting the width of the fingers for each different bend.
You also needs to see if they will be bending on an angle , if they are bending a flange that is 75mm deep on one side and 50mm on the other side. If that is the case, then they will want a Zaxis, so that they can adjust their press brake on an angle with one fixed finger and a second one .
Bending Crowning must also be considered. With manual crowning you have a handle on the side of your brake that you adjust by hand and you have to know per job what the crown will be for that material, that width, that length and that thickness. With CNC crowning the control figures all that out for you and adjusts the crown automatically with DELEM CNC Press brake controller.
Bending acute angles can be particularly problematic. If an press brake operator needs to bend a part to a 30-degree internal angle? Does the tool set—including the space in bottom die opening—allow for the folding depth of penetration to achieve that angle plus the required overbend for springback?
Engineers must be know the range of easily bendable angles, considering sheet bending angles, not potential collisions or obstructions, which probably happens in later technical checks.
Double AHYW Yawei made 4m CNC bending machine shipped to domestic truck Trailer parts bending supplier
Running a press brake is not suitable for everyone if have not training or know well for bending. Anyone who want to operate press brake should not be anywhere near a bending machine. Others would make great technicians but want nothing to do with the press brake.
The same thing applies to engineering and the general lack of knowledge about designing for press brake bending. Inproper knowledge&undersatnding about sheet material bending has led to many harmful practices as operators try to correct problems on the shop floor using knowledge passed on tribally.
Just one serious error can lead to failure. Therefore, it is essential that you completely know well the metal bending process, bending techniques.
Shaping or bending sheet metal on a press brake looks not so simple. Looks like you put a punch and die set into the press brake and the ram makes the punch move down into the die space to bend the sheet metal with some different angles, but actually some small thing will be effect final bending results, material thickness and die opening match confirmation, actual profiles programming and bending process, safety protection, bending speed setting up, mute position programming are all factors to affect sheet bending performance.
Folding sheet material elongates the workpiece at the point of the bending. During the bending process, the outside surface of the bending sheet is subject to expansion or tensile stress, while the inside surface is exposed to compressive stress. At the border between expansion and compression is a theoretical area that goes through no physical change during bending. This neutral axis is not affected by tensile or compressive forces and so has no expansion or compression.
The Max sheet metal bending length defined that can be bent up is obviously up to the length of the CNC press brake bench length, but the thickness of material for bending Max is a function of the material tensile strength and pressure bending tonnage available from bending machine to shaping the sheet metal. The larger lower die V opening the greater the sheet metal can that can be bent for the same bending pressure press brake. But same time , if die V opening is increased so the internal radius of the bending on the sheet metal work will be bigger. We have all kinds of cnc press brakes with many customized options from the machine main frames design to tooling system and other necessary advanced devices.
China AHYW Yawei can develp bending design ideas and enable you to fully benefit from the versatility of CNC press brakes., please take a look to learn more or give us a message if you want to discuss further your particular sheet metal bending machine design for your projects, WhatsApp: 86 15955558219
Italy made DSP Laser guarding system built in to the press brake has a metric guide to facilitate vertical adjustment and can easily be lifted up and removed when work tools (punches and dies) need changing. Laser guarding system includes two electronically controlled high frequency laser emitters and receivers which are able to recognize and ignore any external light source and are thus protected from interference by any other lighting, whether natural or artificial, will be big protection for press brake operators.
Yawei CNC Press brake bending tools can be customized according to truck trailers or related products bending profiles.
12M Longer Sheet profiles bumping bending with yawei 12m large cnc press brakes delem da66t
CE CNC 4M 6 axis 400T CNC press brakes made for Australia Lazersafe guarding with PCSS safety controller
Customized Your 5 axis&7 axis CNC Synchro Press brakes from China AHYW Yawei factory.
Whether your sheet metal bending projects requires bending simple shapes or complex sheet bending parts, AHYW Yawei always has a press brake to meet your needs and match your budget. China ahyw press brakes are designed&produced for reliability, repeat-ability, precision, performance and ease-of-operation.
Larger bending stroke up to 600mm, Huge daylight up to 1500mm, Deep bending throat up to 1500mm, CNC bending aids wirh auto motorized sheet follower for thin&longer sheet metal panels bending, All kinds of CE PLC Lazersafe IRIS guarding type, CE Synchro Press brake features, Eco function Germany Hoerbiger ePrAX Hybrid PBM CNC YAWEI Press brakes are all available in ahyw yawei china factory.
Email your metal bending details, we can design the best ahyw yawei cnc synchro press brakes for your sheet bending applications.
WhatsApp- 0086 15955558219
Optional Panel Bending machine China Yawei AHYW Factory
Panel benders are specially designed for bending large, boxy, flat, straight, and rectangular parts that are difficult to bend and handle by a single person using a cnc press brake, folding machine or when dealing with highly cosmetic parts.
Panel bending is commonly used to bending the following products:
Appliances such as refrigerators
Electrical appliances such as electric cabinets and lighting.
HVAC equipment
Construction components such as panels, doors, elevators, cable trays, platforms, and profiles.
Metal furniture for commercial kitchens, offices, storage, and lockers
Truck trailers
Panel bending is especially suitable for shaping cosmetic, or appearance, parts. Supported by a brush table underneath, the bending tool’s interpolated movement in the X and Y axes maintains a single point of contact to the flange during the bending process, there by significantly reducing scratching and marring.
Panel bending technology offers many benefits in modern sheet metal bending machine manufacturing. While sheet panel benders do have some limitations in the types of parts they can process, they can be a most efficient bending method when the application fits.
