Yawei 8ft CNC Hydraulic Press Brakes, professional hydraulic guillotine shearing machines and cnc press brake manufactures, suppliers, factory in china
AHYW Hydraulic CNC Press Brake Machines 80Ton*2500mm for sale in china
DELEM Automatic 4 Axis CNC Press Brakes bending machines factory sale china
2.5m Hydraulic CNC Bending Machines with DELEM DA52S CNC Press Brake controller
█ General Features of AHYW Down stroke Hydraulic CNC Press Brake Machines 80Ton*2500mm:
•CNC Press Brakes is overall welded and designed using SOLID WORKS 3D programming,use German hydraulic proportional valves technology and linear encoder mounted on two sides of machine.
•The main frame made of steel welded constructions,has been designed according minimum stretch and optimum resistance standards.
•Accuracy is further ensured by mounting the linear encoders on a C frame connected to the bed, rather than directly on the side frames, so deflection of the side frames and pressure loads do not affect positioning.
•Using CNC boring&milling machine to fabricate the main parts
• Each time the machine automatically goes to the reference.
• Automatically pressing force adjustment according to bending plate.
• Automatic position settings and retract functions,each step in bending program.
• Programmable and automatically maximum force limitations
• CNC Hydraulic Box Folding Machines design.
• DELEM CNC automatic controlled back gauge with Servo motor and drive, ball screw and linear guide cnc press brake back gauge made in china
• CNC Bending machinery, 3m Stainless Steel for making Door Frames
█ Standard Equipment of AHYW CNC Hydraulic Press Brake-80T2500mm:
• Control of Y1,Y2,X,R and CNC Hydraulic crowning, 4 axis cnc press brakes made in china
• DELEM DA52S CNC Press brake controller
• Original German Rexroth proportional valves.
• Japan Nachi hydraulic pump
• High Quality accurate German Heidenhain linear encoder
• Japan Yaskawa AC servo motor and drive
• Manual movable back gauge fingers on linear guide
• China top level cylinders with Japan NOK seals
• Amada/Promecam type quick cnc press brake release clamping
• Schneider-Telemecanique electrical components in cabinet
• 2 Units Movable sliding front support arm with linear guide, support height adjustable
• Hardened Standard Amada cnc press brake type sectionalized 835mm top&bottom tool
Technical parameters for ANHUI YAWEI AHYW 8FT CNC Press Brake
| Max bending pressure | 80Ton | Max bending length | 80ft,2500mm |
| Max daylight | 380mm | Throat depth | 400mm |
| X back gauge | 600mm | R back gauge | 150mm |
| Approach speed | 200mm/s | Bending speed | 10-15mm/s |
| Main motor power | 7.5kw | Dimension | 3000*1900*2300mm |

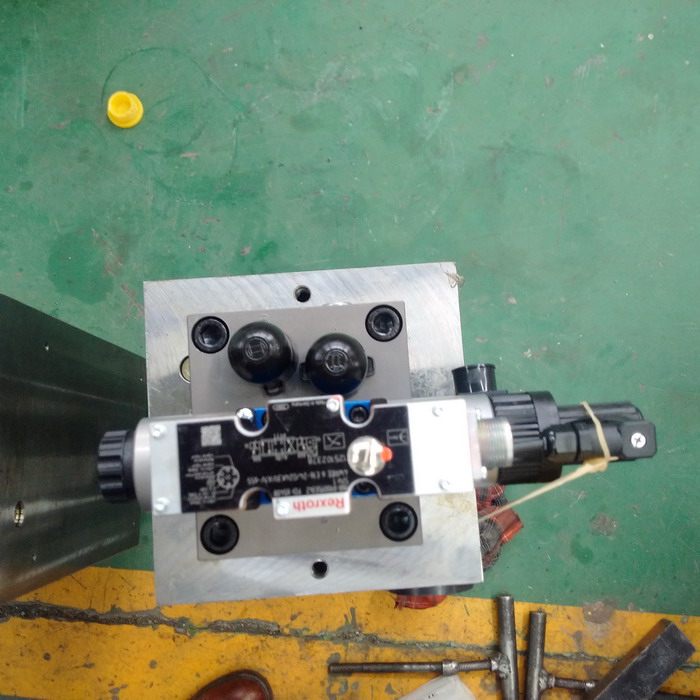

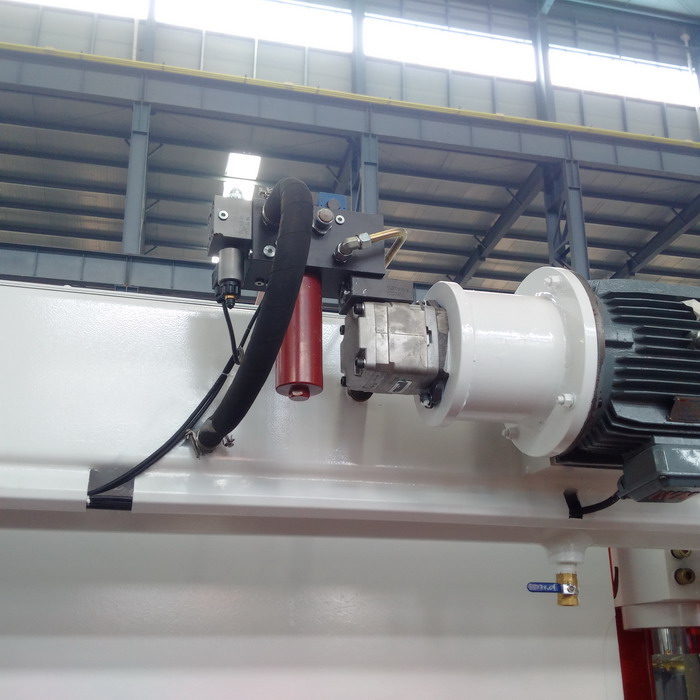

German Bosch Rexroth valves for cnc press brakes, Japan Nachi Hydraulic Pump

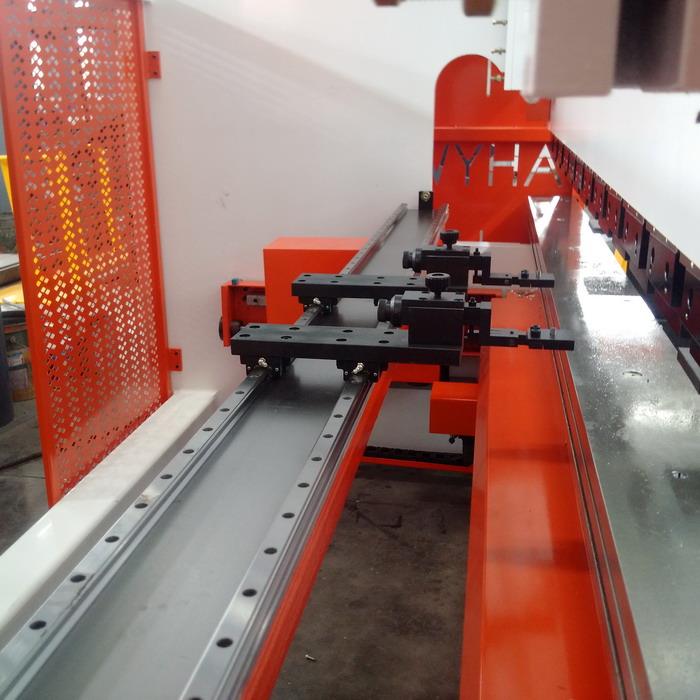

Ball screw and linear guide back gauge for cnc hydraulic press brakes
European Sash cnc press brake punches and dies made in china
DELEM DA52S CNC Press Brake Controller specifications:
Delivery time: within 30 days after we get 30% down payment in advance
Shipping terms: 1*40HC container
Warranty:18 months
Any special requirements for this 8ft Hydraulic CNC Press Brake Machines and all kinds of hydraulic metal sheet guillotine shearing machines, please send email to export@ahycnc.com
Anhui Yawei Machine Tool Manufacturing Co., Ltd, China
Website: www.ahycncs.net
