Yawei 12mm Hydraulic Guillotine Shears

Yawei 12mm Hydraulic Guillotine Shears

Anhui Yawei 12mm Hydraulic Sheet Metal Guillotine Shearing Machines supplier china

This QC11K-12*4100 Hydraulic Guillotine Shears can cut 12mm mild steel plate, Max metal cutting length 4100mm, standard with E21S ESTUN professional metal Guillotine shears NC controllers from china

Max 6mm stainless sheet metal cutting machines factory sales made in china

█ General Features of buy Anhui Yawei 12mm Hydraulic Guillotine Shears  from china:

• Full welded structure machined on CNC Boring&Milling machine

• Construction feature have a variable rake cutting angle

• Machine body and top beam are made of steel constructions, has been designed according minimum stretch and optimum resistance

• Heavy duty rigid body concept

• Swing up back gauge design

•2 Units down stroke Hydraulic Cylinders, processed as precise from solid full material and made honed

• Pistons, processed from forged steel, hardened,grinding is done

• Welded Monoblock, heavy steel frame using rigid structural steel produced with advanced modern fabricating methods.

• Cutting stroke adjustable

• Used in Carbon Steel, Mild and Stainless Steel Cutting, Aluminum sheet plate cutting.

█ Standard Equipment of Anhui Yawei sheet metal 12mm hydraulic cutting machines china:

• ESTUN E21 NC Controller, can program and go to position function

• Frequency inverter

• Cutting angle adjustable, manual adjust cutting angle according to different plate thickness

• Motorized NC blades clearance adjustment

• Siemens electric components

• Five units standard front support

• Fast and powerful back gauge with 800mm cutting stroke

• Top blade 4 cutting edges, bottom blade 4 cutting edges

• China top level compact hydraulic system

• Removable foot pedal with Emergency stop button

• Heavy rollers on cutting table to hold heavy cutting plate

• Front operator finger protection safety fence

• Rear safety fence

• Removable foot pedal with Emergency stop button

Detailed photos of Yawei 12mm Hydraulic Guillotine Shears Manufactured in china

800mm large throat of Yawei 12mm hydraulic metal guillotine shearing machines factory china, this

optional function will help cutting operator to slit metal plate from side directly to the cutting area, it

also can cut metal plate longer than 4.1m

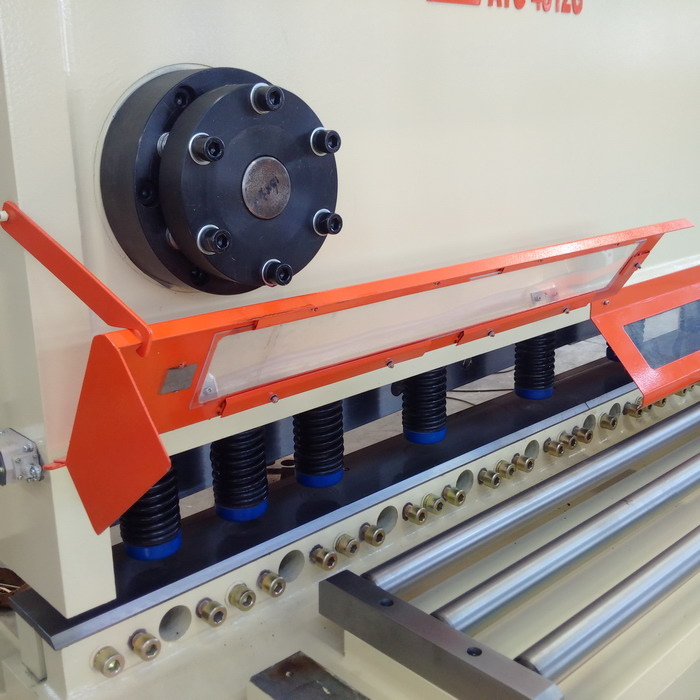

NC Motorised cutting blades clearance adjustment for large sheet metal cutting machines china

Oil cooler of bigger sheet metal hydraulic guillotine shearing machines suppliers china, the oil won't

heat again, which will ensure hydraulic guillotine shearing machinw will have longer cutting life time

Delivery time: within 35 days

Payment terms: 30% down payment in advance and balance before shipment

Shipping terms: 1*20 open top container

Warranty:18 months

Any interesting, please send email to export@ahycnc.com
