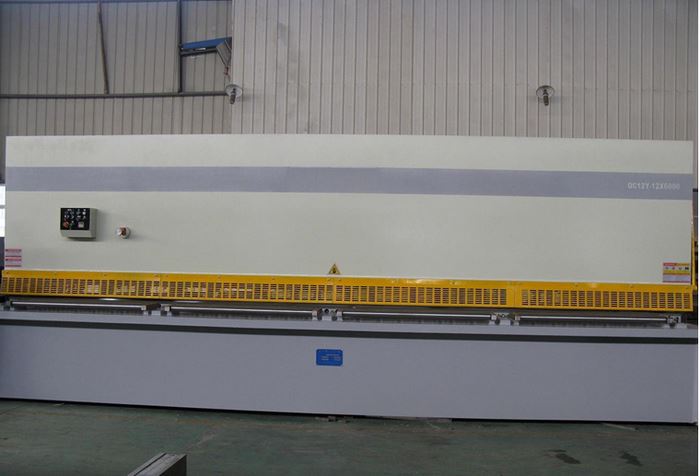

12mm6m large sheet metal cutting shearing machine factory direct for sale in China
China 12mm large sheet metal cutting guillotines manufactures suppliers
China 6m bigger metal sheet hydraulic shearing machines manufactures suppliers
China 6m large mild steel metal cutting shears made in china
China 6m large sheet metal shearing cutting machines for sale in China
China 20ft large sheet metal cutting guillotine shears manufactures suppliers
█ General Features of Yawei 6m Hydraulic shearing machines:
• Full welded structure machined on CNC Boring&Milling machine
• Hydraulic swing beam shearing machines design made in china
• Machine body and top beam are made of steel constructions, has been designed according minimum stretch and optimum resistance
• Heavy duty 6m hydraulic metal cutting machines capacity design
• 20FT Hydraulic metal sheet shearing machines wholesales in china
• Swing up back gauge design
•2 Units down stroke Hydraulic Cylinders, processed as precise from solid full material and made honed
• Pistons, processed from forged steel, hardened,grinding is done
• Welded Monoblock, heavy steel frame using rigid structural steel produced with advanced modern fabricating methods.
• Bigger 6m Hydraulic Metal Sheet Cutting Machines suppliers china
█ Standard Equipment of Yawei 12mm hydraulic shearing machines:
• A60 NC hydraulic shearing machines controller made in china, can program and go to position function
• Quick shearing machines blades clearance adjustment
• Siemens electric components
• Five units standard front support
• Fast and powerful metal cutting back gauge with 800mm cutting stroke
• Heavy rollers on cutting table to hold heavy cutting plate
• Top hydraulic metal cutting blades China 4 cutting edges, bottom blade 4 cutting edges
• China top level compact hydraulic system
• Removable foot pedal with Emergency stop button
█ Yawei 6m hydraulic swing beam shearing machines specifications supplier china
| Max metal sheet cutting | 12mm mild steel cutting | Max cutting length | 6000mm |
| X back gauge stroke | 800mm | Stroke times | 5 |
| Throat depth | 80mm | Main motor power | 30kw |
| Gross weight | 26T | Dimension | 7000*2150*2500mm |
Main parts of Yawei 20FT Hydraulic shearing metal sheet cutting machines
China 6m large sheet metal cutting and metal press brake bending machines manufactures suppliers
• Delivery time: Within 25 days
• Payment term: T/T, 30% down payment in advance and balance before shipment
• Warranty: 18 months
• Loading port: Shanghai, China
• Certificate: ISO, special requirements for CE conformity
• After Sales Service: 7*24 hours, quick response
• Shipping Term: 40 ft container
• Installation Service and Training Service are all available if required
• Customer’s profile testing before shipment
Anhui Yawei Machine Tool is one of the best professional China manufacture 6m large hydraulic press brake machines and metal sheet guillotine shearing machines, sheet metal working machinery suppliers, factory website: www.ahycncs.net
Any special requirements for 12mm*6m Hydraulic sheet metal guillotine cutting machines and metal bending brake machines from China factory, send email to export@ahycnc.com now.
