This Ahyawei QC11K NC Hydraulic Metal Guillotine Shear-10*6000mm can cutting 10mm mild steel&carbon plate, max 6m&20ft sheet cutting length, ahyawei QC11K series standard coming with variable rake metal cutting angle design, which hydraulic shears operator can adjust cutting angle according to different plate cutting thickness, which can ensure better cutting precision job.
█ General Features of Ahyawei QC11K 6m&20ft large Hydraulic carbon plate Guillotine shears-10mm*6000:
• Full welded structure machined on CNC Boring&Milling machine
• Construction feature have a variable rake cutting angle
• Machine body and top beam are made of steel constructions, has been designed according minimum stretch and optimum resistance
• Heavy duty 8m sheet metal cutting capacity design
• Swing up back gauge design
•2 Units down stroke Hydraulic Cylinders, processed as precise from solid full material and made honed
• Pistons, processed from forged steel, hardened,grinding is done
• Welded Monoblock, heavy steel frame using rigid structural steel produced with advanced modern fabricating methods.
• Large 10mm metal cutting, 6m&20ft big Hydraulic Sheet Metal Cutting Machines Made in China
• Cutting stroke adjustable
█ Standard Equipment of China Ahyawei 20ft Large Mild steel Metal Sheet Guillotine Shears:
• ESTUN E21 NC sheet metal cutting machines Controller, can program and go to position function
• Taiwan Shihlin Frequency inverter
• Cutting angle adjustable, manual adjust cutting angle according to different plate thickness
• Motorized NC blades clearance adjustment
• Siemens main electrical components
• Five units standard front support
• Fast and powerful back gauge with 1000mm cutting stroke
• Back gauge lifting system to ensure you cut longer plate than back gauge stroke
• Heavy rollers on cutting table to hold heavy cutting plate
• Top blade 4 cutting edges, bottom blade 4 cutting edges
• China top level compact hydraulic system
• Removable foot pedal with Emergency stop button
Production time and after cutting the edge’s surface precision are mostly important points for shear machine users. Therefore Ahyawei QC11K Series CNC Metal Cutting Shear Machines are heavy duty strong machine designs for a long working life. The machine is easily programable metal cutting NC controller, automaticly adjust the backgauge position, The cutting angle manual adjusts according to material & thickness up to 2,3 degrees to minimize twisting and after cutting the edge’s surface precision.
| Max metal cutting thickness | 10mm mild steel | Max metal sheet cutting length | 6m |
| Gross weight | 23Ton | Back gauge stroke | 1000mm |

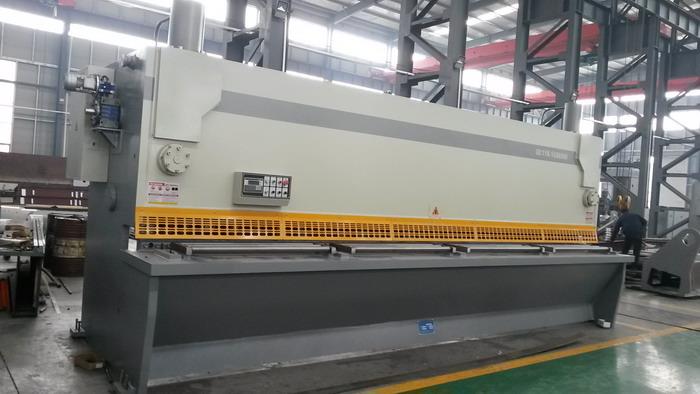

Main images of Ahyawei 6m Big Metal Cutting Guillotine Shears made in China
Hevry duty front support for 6m large sheet metal guillotine shears Ahyawei
Ahyawei 6mm&6m, 20ft large sheet metal guillotine cutting machines factory China
Ahyawei 8m&20ft large mild steel plate cutting guillotine shears
Ahyawei 8mm&8m large carbon steel metal sheet cutting guillotine shears
Ahyawei 8mm&6m large carbon steel metal sheet variable rake angle guillotine shears
Ahyawei 12mm&6m big sheet metal guillotine cutting shearing machines made in China
Ahyawei 16mm&20ft large sheet metal guillotine cutting shearing machines made in China
China yawei 8mm stainless metal sheet cutting shearing machine factory china
Ahyawei 20mm&20ft large mild steel plate cutting guillotine shears made in China
China Ahyawei 25mm heavy duty 6m&20ft large sheet metal cutting guillotine shears
Terms and Conditions:
• Delivery time: Within 40 days
• Payment term: T/T, 30% down payment in advance and balance before shipment
• Warranty: 18 months
• Loading port: Shanghai, China
• Certificate: ISO, special requirements for CE conformity
• After Sales Service: 7*24 hours, quick response
• Installation Service and Training Service are all available if required
For more information for this China Ahyawei 6m&20ft Large Metal plate Variable Rake angle cutting machines, please feel free to send email to export@ahycnc.com
